27MP Series

Part	Material	Mounting Hole Diameter	Support Panel Thickness	Mounting Type	Length - Overall	Mounting Panel Thickness	Between Board Height	Holding Type	Support Hole Diameter
Essentra Components 27MP01950	Nylon	0.156 in	0.063 in	Snap Lock	2.23 in	0.063 in	1.95 in	Snap Lock	0.156 in
Essentra Components 27MP00437S	Nylon	0.156 in	0.063 in	Snap Lock	0.717 in	0.063 in	0.437 in	Snap Lock	0.156 in
Essentra Components 27MP00500	Nylon	0.156 in	0.063 in	Snap Lock	0.78 in	0.063 in	0.5 in	Snap Lock	0.156 in
Essentra Components 27MP01000	Nylon	0.156 in	0.063 in	Snap Lock	1.28 in	0.063 in	1 in	Snap Lock	0.156 in
Essentra Components 27MP00625	Nylon	0.156 in	0.063 in	Snap Lock	0.905 in	0.063 in	0.625 in	Snap Lock	0.156 in

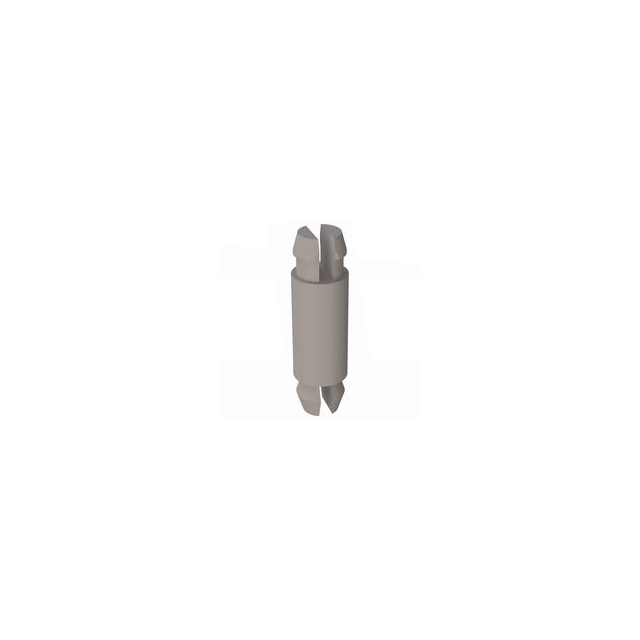

Essentra Components 27MP00375	Nylon	0.156 in	0.063 in	Snap Lock	0.655 in	0.063 in	0.375 in	Snap Lock	0.156 in
Essentra Components 27MP00197	Nylon	0.156 in	0.063 in	Snap Lock	0.477 in	0.063 in	0.197 in	Snap Lock	0.156 in
Essentra Components 27MP00437	Nylon	0.156 in	0.063 in	Snap Lock	0.717 in	0.063 in	0.437 in	Snap Lock	0.156 in
Essentra Components 27MP00250	Nylon	0.156 in	0.063 in	Snap Lock	0.53 in	0.063 in	0.25 in	Snap Lock	0.156 in
Essentra Components 27MP00312	Nylon	0.156 in	0.063 in	Snap Lock	0.592 in	0.063 in	0.312 in	Snap Lock	0.156 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.
