1595MS100

Active

Hammond Manufacturing

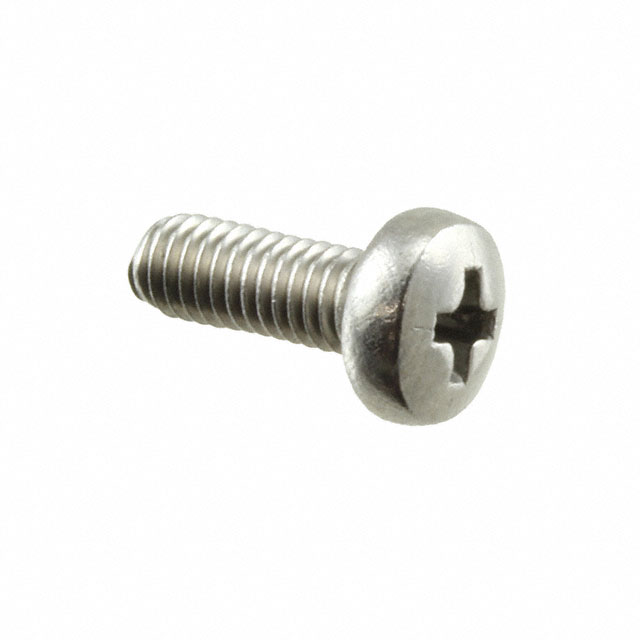

MACHINE SCREW M3 100/PK

Search across all available documentation for this part.

Active

Hammond Manufacturing

MACHINE SCREW M3 100/PK

Technical Specifications

Parameters and characteristics for this part

Part	Features	Material	Thickness	Thickness	Design	Material Flammability Rating	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Color	Container Type	Weight	Weight	Height [z]	Height [z]	Area (L x W)	Area (L x W)	Thread Size	Length - Below Head [custom]	Length - Below Head [custom]	Type
Hammond Manufacturing 1595EGY	Card Guides Flame Retardant PCB Supports	ABS	0.079 in	2.01 mm	Slanted Top	UL94 V-0	215.01 mm	8.465 in	130 mm	5.118 "	Gray	Box	354.26 g	0.781 lb	2.972 in	75.5 mm	43.2 in˛	279 cm˛
Hammond Manufacturing 1595MS100																			M3x0.5	8 mm	0.315 in	Machine Screw

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

M3x0.5 Machine Screw Drive
