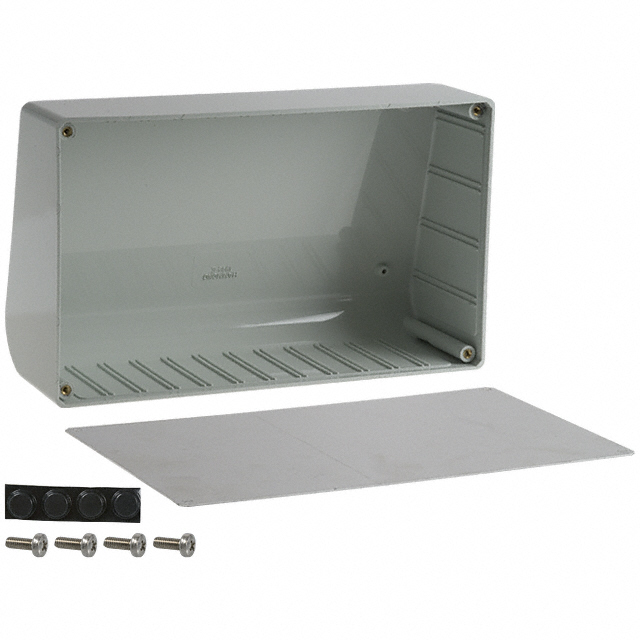

1595EGY

Active

Hammond Manufacturing

LIGHT GRAY ACRYLONITRILE BUTADIENE STYRENE SLOPED CONSOLE ENCLOSURE

Search across all available documentation for this part.

Active

Hammond Manufacturing

LIGHT GRAY ACRYLONITRILE BUTADIENE STYRENE SLOPED CONSOLE ENCLOSURE

Technical Specifications

Parameters and characteristics for this part

Specification	1595EGY

Area (L x W)	43.2 in˛
Area (L x W)	279 cm˛
Color	Gray
Container Type	Box
Design	Slanted Top
Features	Flame Retardant, PCB Supports, Card Guides
Height [z]	2.972 in
Height [z]	75.5 mm
Material	ABS
Material Flammability Rating	UL94 V-0
Size / Dimension [x]	215.01 mm
Size / Dimension [x]	8.465 in
Size / Dimension [y]	130 mm
Size / Dimension [y]	5.118 "
Thickness	0.079 in
Thickness	2.01 mm
Weight	354.26 g
Weight	0.781 lb

Part	Features	Material	Thickness	Thickness	Design	Material Flammability Rating	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Color	Container Type	Weight	Weight	Height [z]	Height [z]	Area (L x W)	Area (L x W)	Thread Size	Length - Below Head [custom]	Length - Below Head [custom]	Type
Hammond Manufacturing 1595EGY	Card Guides Flame Retardant PCB Supports	ABS	0.079 in	2.01 mm	Slanted Top	UL94 V-0	215.01 mm	8.465 in	130 mm	5.118 "	Gray	Box	354.26 g	0.781 lb	2.972 in	75.5 mm	43.2 in˛	279 cm˛
Hammond Manufacturing 1595MS100																			M3x0.5	8 mm	0.315 in	Machine Screw

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Box ABS Gray Slanted Top 8.465" L x 5.118" W (215.01mm x 130.00mm) X 2.972" (75.50mm)

Technical documentation and resources

No documents available
