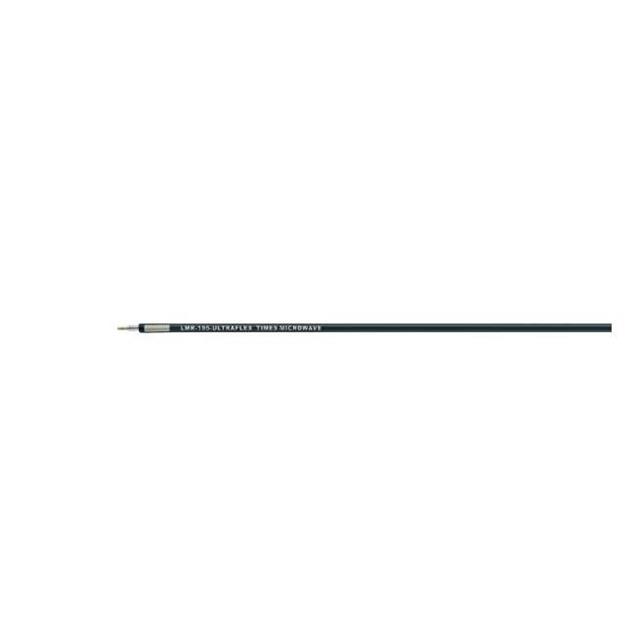

LMR-195-FR

Active

Amphenol Times Microwave Systems

CMR/MPR(PCC-FT4)BLK NON-HAL FOOT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

LMR-195-FR

Active

Amphenol Times Microwave Systems

CMR/MPR(PCC-FT4)BLK NON-HAL FOOT

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Digi-Spool®, Continuous Spool	1	$ 2.67
		3	$ 2.47
		5	$ 2.38
		7	$ 2.33
		10	$ 2.27
		25	$ 2.13
		50	$ 2.02
		100	$ 1.92

Description

General part information

LMR-195 Series

Coaxial - Riser Cable Enter Number of Feet in Order Quantity 50 Ohms

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	LMR-195-FR	LMR-195 Series

Cable Type	Coaxial - Riser	Coaxial, Coaxial - Riser, Coaxial - Plenum
Conductor Material	Copper, Bare	Copper, Bare
Conductor Strand	Solid	Solid
Dielectric Diameter	-	2.87 mm
Dielectric Diameter	-	0.113 "
Dielectric Diameter [diameter]	2.79 mm	2.79 mm
Dielectric Diameter [diameter]	0.11 in	0.11 in
Dielectric Material	Foam Polyethylene (FPE)	Foam Polyethylene (FPE), Polytetrafluoroethylene (PTFE)
Features	Fire Retardant	Fire Retardant, Direct Burial, Watertight
Impedance	50 Ohms	50 Ohms
Jacket (Insulation) Diameter [diameter]	0.195 in	0.175 - 0.195 in
Jacket (Insulation) Diameter [diameter]	4.95 mm	4.45 - 4.95 mm
Jacket (Insulation) Material	Polyethylene (PE), Riser	Thermoplastic Elastomer (TPE), Polyethylene (PE), Riser, Poly-Vinyl Chloride (PVC), Poly-Vinyl Chloride (PVC), Riser, Polyethylene (PE), Fluoropolymer, Plenum, Low Smoke Zero Halogen (LSZH)
Jacket Color	Black	Black, Red
Length	Enter Number of Feet in Order Quantity	Enter Number of Feet in Order Quantity
Length	-	1 - 100 ft
Length	-	3.05 - 300 mm
Length	-	15.24 m
Length	-	50 ft
Operating Temperature [Max]	85 °C	85 - 125 °C
Operating Temperature [Min]	-40 °C	-40 °C
Shield Material	Copper, Tinned, Aluminum	Copper, Tinned, Aluminum
Shield Type	Braid	Foil, Braid
Spool Size	500 '	500 '
Spool Size	152.4 m	152.4 m
Usage	-	Antenna
VoP, Velocity of Propagation	80	74 - 80

LMR-195 Series

LMR-195 W/STRAND CTR CONDUC FOOT

Part	Impedance	Length	Dielectric Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket Color	VoP, Velocity of Propagation	Shield Type	Operating Temperature [Max]	Operating Temperature [Min]	Dielectric Diameter [diameter]	Dielectric Diameter [diameter]	Jacket (Insulation) Material	Spool Size	Spool Size	Conductor Material	Cable Type	Shield Material	Features	Conductor Strand	Usage	Dielectric Diameter	Dielectric Diameter	Length [x]	Length [x]
Amphenol Times Microwave Systems LMR-195-UF	50 Ohms	Enter Number of Feet in Order Quantity	Foam Polyethylene (FPE)	0.195 in	4.95 mm	Black	74	Braid, Foil	85 °C	-40 °C	2.79 mm	0.11 in	Thermoplastic Elastomer (TPE)	500 '	152.4 m	Copper, Bare	Coaxial	Aluminum, Copper, Tinned
Amphenol Times Microwave Systems LMR-195-FR-W	50 Ohms		Foam Polyethylene (FPE)	0.195 in	4.95 mm		80	Braid	85 °C	-40 °C	2.79 mm	0.11 in	Polyethylene (PE), Riser			Copper, Bare	Coaxial - Riser	Aluminum, Copper, Tinned	Fire Retardant	Solid
Amphenol Times Microwave Systems LMR-195-MA	50 Ohms		Foam Polyethylene (FPE)	0.195 in	4.95 mm	Black	80	Braid	85 °C	-40 °C	2.79 mm	0.11 in	Poly-Vinyl Chloride (PVC)			Copper, Bare	Coaxial	Aluminum, Copper, Tinned		Solid	Antenna
Amphenol Times Microwave Systems LMR-195-FR-PVC	50 Ohms		Foam Polyethylene (FPE)	0.195 in	4.95 mm	Black	80	Braid	85 °C	-40 °C	2.79 mm	0.11 in	Poly-Vinyl Chloride (PVC), Riser			Copper, Bare	Coaxial - Riser	Aluminum, Copper, Tinned	Fire Retardant	Solid
Amphenol Times Microwave Systems LMR-195-DB	50 Ohms	Enter Number of Feet in Order Quantity	Foam Polyethylene (FPE)	0.195 in	4.95 mm	Black	80	Braid	85 °C	-40 °C	2.79 mm	0.11 in	Polyethylene (PE)	500 '	152.4 m	Copper, Bare	Coaxial	Aluminum, Copper, Tinned	Direct Burial, Watertight	Solid
Amphenol Times Microwave Systems LMR-195-PVC-W	50 Ohms		Foam Polyethylene (FPE)	0.195 in	4.95 mm		80	Braid	85 °C	-40 °C	2.79 mm	0.11 in	Poly-Vinyl Chloride (PVC)			Copper, Bare	Coaxial	Aluminum, Copper, Tinned		Solid
Amphenol Times Microwave Systems LMR-195-PVC	50 Ohms		Foam Polyethylene (FPE)	0.195 in	4.95 mm	Black	80	Braid	85 °C	-40 °C	2.79 mm	0.11 in	Poly-Vinyl Chloride (PVC)			Copper, Bare	Coaxial	Aluminum, Copper, Tinned		Solid
Amphenol Times Microwave Systems LMR-195-LLPX	50 Ohms		Polytetrafluoroethylene (PTFE)	0.175 in	4.45 mm	Red	76	Braid, Foil	125 °C	-40 °C			Fluoropolymer, Plenum			Copper, Bare	Coaxial - Plenum	Aluminum, Copper, Tinned		Solid		2.87 mm	0.113 "
Amphenol Times Microwave Systems LMR-195-FR	50 Ohms	Enter Number of Feet in Order Quantity	Foam Polyethylene (FPE)	0.195 in	4.95 mm	Black	80	Braid	85 °C	-40 °C	2.79 mm	0.11 in	Polyethylene (PE), Riser	500 '	152.4 m	Copper, Bare	Coaxial - Riser	Aluminum, Copper, Tinned	Fire Retardant	Solid
Amphenol Times Microwave Systems LMR-195-LSZH	50 Ohms		Foam Polyethylene (FPE)	0.195 in	4.95 mm	Black	76	Braid	85 °C	-40 °C			Low Smoke Zero Halogen (LSZH), Polyethylene (PE)			Copper, Bare	Coaxial	Aluminum, Copper, Tinned		Solid		2.87 mm	0.113 "	1 ft	300 mm
