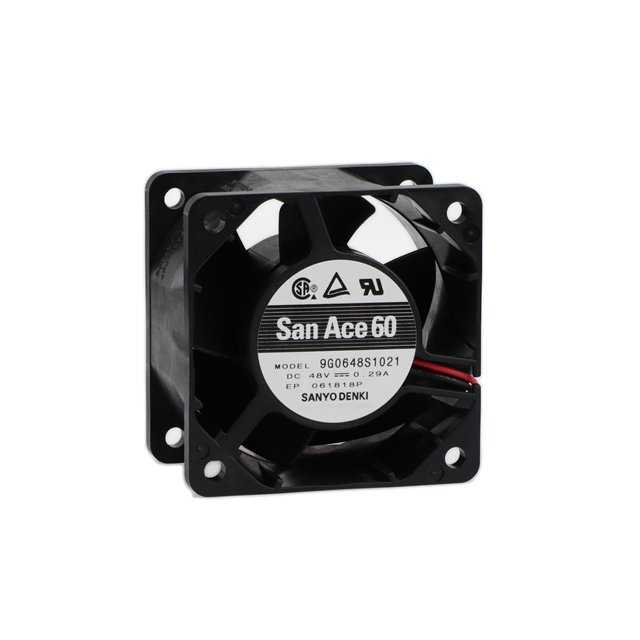

9G0648S1021

Obsolete

Sanyo Denki America Inc.

FAN AXIAL 60X38MM 48VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsRotor Balancing Handling Instructions for Fan Motors

9G0648S1021

Obsolete

Sanyo Denki America Inc.

FAN AXIAL 60X38MM 48VDC WIRE

Deep-Dive with AI

DocumentsRotor Balancing Handling Instructions for Fan Motors

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	9G0648S1021

Air Flow	60 CFM
Air Flow	1.68 mł/min
Approval Agency	CSA, TUV, UL
Bearing Type	Ball
Current Rating (Amps)	0.29 A
Fan Type	Tubeaxial
Lifetime @ Temp.	40000 Hrs
Material - Blade	Plastic
Material - Frame	Plastic
Noise	56 dB
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Operating Temperature [Min]	-20 C
Power (Watts)	13.9 W
RPM	10800 RPM
Size / Dimension [x]	60 mm
Size / Dimension [y]	60 mm
Static Pressure	1.486 in H2O
Static Pressure	370.1 Pa
Termination	2 Wire Leads
Voltage - Rated [custom]	48 VDC
Voltage Range [Max]	55.2 VDC
Voltage Range [Min]	28
Weight	0.243 lb
Weight	110.22 g
Width [y]	38 mm

9G0648 Series

Part	Current Rating (Amps)	Width [y]	RPM	Approval Agency	Fan Type	Air Flow	Air Flow	Features	Termination	Lifetime @ Temp.	Static Pressure	Static Pressure	Voltage - Rated [custom]	Power (Watts)	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [x]	Size / Dimension [y]	Material - Blade	Bearing Type	Noise	Material - Frame	Voltage Range [Max]	Voltage Range [Min]	Weight	Weight
Sanyo Denki America Inc. 9G0648P4S0011	0.18 A	25 mm	11000 RPM	cURus TUV	Tubeaxial	49.4 CFM	1.38 m³/min	Locked Rotor Protection PWM Control Speed Sensor (Tach)	4 Wire Leads	40000 Hrs	1.223 in H2O	304.6 Pa	48 VDC	8.64 W	-20 °C	70 °C	-20 C	70 °C	60 mm	60 mm	Plastic	Ball	53 dB	Plastic	72 VDC	36 VDC	90.26 g	0.199 lb
Sanyo Denki America Inc. 9G0648P1G01	0.35 A	38 mm	11800 RPM	CSA TUV UL	Tubeaxial	65 CFM	1.82 mł/min	Locked Rotor Protection PWM Control Speed Sensor (Tach)	4 Wire Leads	40000 Hrs	1.747 in H2O	435.2 Pa	48 VDC	16.8 W	-20 °C	70 °C	-20 C	70 °C	60 mm	60 mm	Plastic	Ball	58 dB(A)	Plastic	55.2 VDC	28	110.22 g	0.243 lb
Sanyo Denki America Inc. 9G0648G1021	0.35 A	38 mm	11800 RPM	CSA TUV UL	Tubeaxial	65 CFM	1.82 mł/min		2 Wire Leads	40000 Hrs	1.747 in H2O	435.2 Pa	48 VDC	16.8 W	-20 °C	70 °C	-20 C	70 °C	60 mm	60 mm	Plastic	Ball	58 dB(A)	Plastic	55.2 VDC	28	110.22 g	0.243 lb
Sanyo Denki America Inc. 9G0648G101	0.35 A	38 mm	11800 RPM	CSA TUV UL	Tubeaxial	65 CFM	1.82 mł/min	Locked Rotor Protection Speed Sensor (Tach)	3 Wire Leads	40000 Hrs	1.747 in H2O	435.2 Pa	48 VDC	16.8 W	-20 °C	70 °C	-20 C	70 °C	60 mm	60 mm	Plastic	Ball	58 dB(A)	Plastic	55.2 VDC	28	110.22 g	0.243 lb
Sanyo Denki America Inc. 9G0648S1011	0.29 A	38 mm	10800 RPM	CSA TUV UL	Tubeaxial	60 CFM	1.68 mł/min	Locked Rotor Protection Speed Sensor (Tach)	3 Wire Leads	40000 Hrs	1.486 in H2O	370.1 Pa	48 VDC	13.9 W	-20 °C	70 °C	-20 C	70 °C	60 mm	60 mm	Plastic	Ball	56 dB	Plastic	55.2 VDC	28	110.22 g	0.243 lb
Sanyo Denki America Inc. 9G0648P1G011	0.35 A	38 mm	11800 RPM	CSA TUV UL	Tubeaxial	65 CFM	1.82 mł/min	Locked Rotor Protection PWM Control Speed Sensor (Tach)	4 Wire Leads	40000 Hrs	1.747 in H2O	435.2 Pa	48 VDC	16.8 W	-20 °C	70 °C	-20 C	70 °C	60 mm	60 mm	Plastic	Ball	58 dB(A)	Plastic	55.2 VDC	28	110.22 g	0.243 lb
Sanyo Denki America Inc. 9G0648S1021	0.29 A	38 mm	10800 RPM	CSA TUV UL	Tubeaxial	60 CFM	1.68 mł/min		2 Wire Leads	40000 Hrs	1.486 in H2O	370.1 Pa	48 VDC	13.9 W	-20 °C	70 °C	-20 C	70 °C	60 mm	60 mm	Plastic	Ball	56 dB	Plastic	55.2 VDC	28	110.22 g	0.243 lb
Sanyo Denki America Inc. 9G0648G1D01	0.35 A	38 mm	11800 RPM	CSA TUV UL	Tubeaxial	65 CFM	1.82 mł/min	Locked Rotor Sensor	3 Wire Leads	40000 Hrs	1.747 in H2O	435.2 Pa	48 VDC	16.8 W	-20 °C	70 °C	-20 C	70 °C	60 mm	60 mm	Plastic	Ball	58 dB(A)	Plastic	55.2 VDC	28	110.22 g	0.243 lb

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

9G0648 Series

Fan Tubeaxial 48VDC Square - 60mm L x 60mm H Ball 60.0 CFM (1.68m³/min) 2 Wire Leads
