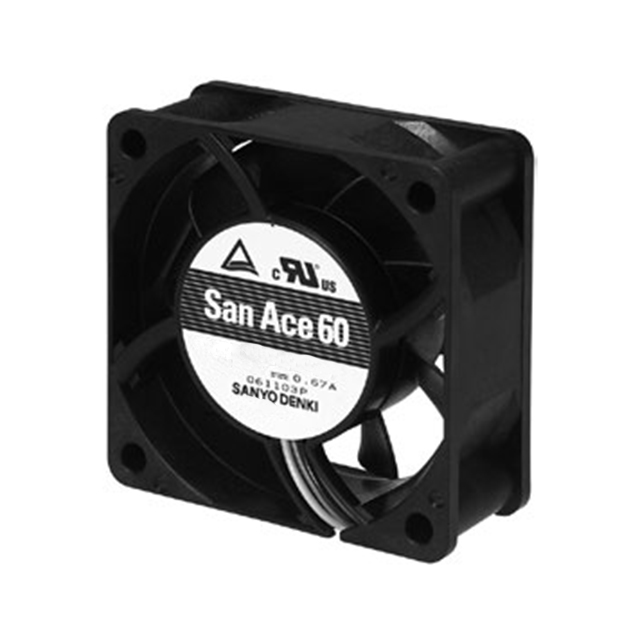

9G0648P4S0011

Active

Sanyo Denki America Inc.

FAN AXIAL 60X25MM 48VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsRotor Balancing Numbering System DC Fan +1

9G0648P4S0011

Active

Sanyo Denki America Inc.

FAN AXIAL 60X25MM 48VDC WIRE

Deep-Dive with AI

DocumentsRotor Balancing Numbering System DC Fan +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	9G0648P4S0011

Air Flow	49.4 CFM
Air Flow	1.38 m³/min
Approval Agency	cURus, TUV
Bearing Type	Ball
Current Rating (Amps)	0.18 A
Fan Type	Tubeaxial
Features	Locked Rotor Protection, PWM Control, Speed Sensor (Tach)
Lifetime @ Temp.	40000 Hrs
Material - Blade	Plastic
Material - Frame	Plastic
Noise	53 dB
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Operating Temperature [Min]	-20 C
Power (Watts)	8.64 W
RPM	11000 RPM
Size / Dimension [x]	60 mm
Size / Dimension [y]	60 mm
Static Pressure	1.223 in H2O
Static Pressure	304.6 Pa
Termination	4 Wire Leads
Voltage - Rated [custom]	48 VDC
Voltage Range [Max]	72 VDC
Voltage Range [Min]	36 VDC
Weight	90.26 g
Weight	0.199 lb
Width [y]	25 mm

9G0648 Series

Part	Current Rating (Amps)	Width [y]	RPM	Approval Agency	Fan Type	Air Flow	Air Flow	Features	Termination	Lifetime @ Temp.	Static Pressure	Static Pressure	Voltage - Rated [custom]	Power (Watts)	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [x]	Size / Dimension [y]	Material - Blade	Bearing Type	Noise	Material - Frame	Voltage Range [Max]	Voltage Range [Min]	Weight	Weight
Sanyo Denki America Inc. 9G0648P4S0011	0.18 A	25 mm	11000 RPM	cURus TUV	Tubeaxial	49.4 CFM	1.38 m³/min	Locked Rotor Protection PWM Control Speed Sensor (Tach)	4 Wire Leads	40000 Hrs	1.223 in H2O	304.6 Pa	48 VDC	8.64 W	-20 °C	70 °C	-20 C	70 °C	60 mm	60 mm	Plastic	Ball	53 dB	Plastic	72 VDC	36 VDC	90.26 g	0.199 lb
Sanyo Denki America Inc. 9G0648P1G01	0.35 A	38 mm	11800 RPM	CSA TUV UL	Tubeaxial	65 CFM	1.82 mł/min	Locked Rotor Protection PWM Control Speed Sensor (Tach)	4 Wire Leads	40000 Hrs	1.747 in H2O	435.2 Pa	48 VDC	16.8 W	-20 °C	70 °C	-20 C	70 °C	60 mm	60 mm	Plastic	Ball	58 dB(A)	Plastic	55.2 VDC	28	110.22 g	0.243 lb
Sanyo Denki America Inc. 9G0648G1021	0.35 A	38 mm	11800 RPM	CSA TUV UL	Tubeaxial	65 CFM	1.82 mł/min		2 Wire Leads	40000 Hrs	1.747 in H2O	435.2 Pa	48 VDC	16.8 W	-20 °C	70 °C	-20 C	70 °C	60 mm	60 mm	Plastic	Ball	58 dB(A)	Plastic	55.2 VDC	28	110.22 g	0.243 lb
Sanyo Denki America Inc. 9G0648G101	0.35 A	38 mm	11800 RPM	CSA TUV UL	Tubeaxial	65 CFM	1.82 mł/min	Locked Rotor Protection Speed Sensor (Tach)	3 Wire Leads	40000 Hrs	1.747 in H2O	435.2 Pa	48 VDC	16.8 W	-20 °C	70 °C	-20 C	70 °C	60 mm	60 mm	Plastic	Ball	58 dB(A)	Plastic	55.2 VDC	28	110.22 g	0.243 lb
Sanyo Denki America Inc. 9G0648S1011	0.29 A	38 mm	10800 RPM	CSA TUV UL	Tubeaxial	60 CFM	1.68 mł/min	Locked Rotor Protection Speed Sensor (Tach)	3 Wire Leads	40000 Hrs	1.486 in H2O	370.1 Pa	48 VDC	13.9 W	-20 °C	70 °C	-20 C	70 °C	60 mm	60 mm	Plastic	Ball	56 dB	Plastic	55.2 VDC	28	110.22 g	0.243 lb
Sanyo Denki America Inc. 9G0648P1G011	0.35 A	38 mm	11800 RPM	CSA TUV UL	Tubeaxial	65 CFM	1.82 mł/min	Locked Rotor Protection PWM Control Speed Sensor (Tach)	4 Wire Leads	40000 Hrs	1.747 in H2O	435.2 Pa	48 VDC	16.8 W	-20 °C	70 °C	-20 C	70 °C	60 mm	60 mm	Plastic	Ball	58 dB(A)	Plastic	55.2 VDC	28	110.22 g	0.243 lb
Sanyo Denki America Inc. 9G0648S1021	0.29 A	38 mm	10800 RPM	CSA TUV UL	Tubeaxial	60 CFM	1.68 mł/min		2 Wire Leads	40000 Hrs	1.486 in H2O	370.1 Pa	48 VDC	13.9 W	-20 °C	70 °C	-20 C	70 °C	60 mm	60 mm	Plastic	Ball	56 dB	Plastic	55.2 VDC	28	110.22 g	0.243 lb
Sanyo Denki America Inc. 9G0648G1D01	0.35 A	38 mm	11800 RPM	CSA TUV UL	Tubeaxial	65 CFM	1.82 mł/min	Locked Rotor Sensor	3 Wire Leads	40000 Hrs	1.747 in H2O	435.2 Pa	48 VDC	16.8 W	-20 °C	70 °C	-20 C	70 °C	60 mm	60 mm	Plastic	Ball	58 dB(A)	Plastic	55.2 VDC	28	110.22 g	0.243 lb

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 37.74
		10	$ 34.47
		25	$ 33.16
		80	$ 30.98
		160	$ 28.58
		320	$ 28.14

Description

General part information

9G0648 Series

Fan Tubeaxial 48VDC Square - 60mm L x 60mm H Ball 49.4 CFM (1.38m³/min) 4 Wire Leads
