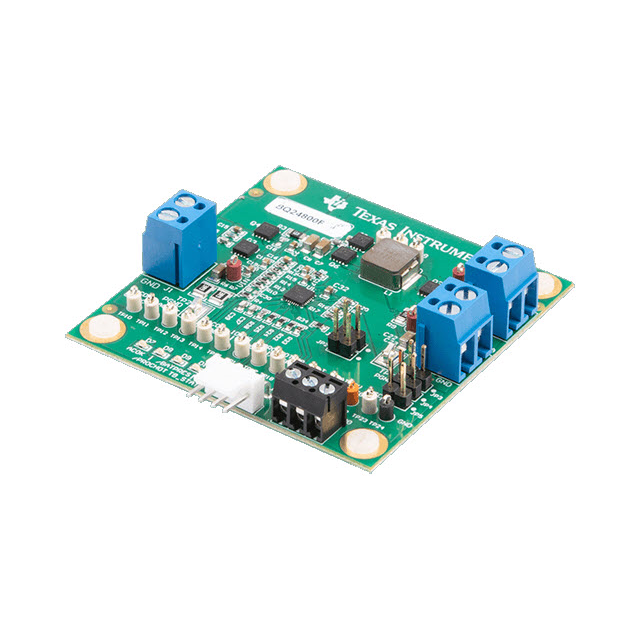

BQ24800EVM
ActiveEVM FOR BQ24800DEVICE
Deep-Dive with AI
Search across all available documentation for this part.
BQ24800EVM
ActiveEVM FOR BQ24800DEVICE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | BQ24800EVM | BQ24800 Series |
|---|---|---|
| Battery Chemistry | - | Multi-Chemistry |
| Current - Charging | - | Constant - Programmable |
| Fault Protection | - | Over Current, Over Voltage, Short Circuit |
| Function | Battery Charger | Battery Charger |
| Mounting Type | - | Surface Mount |
| Number of Cells | - | 4 |
| Number of Cells | - | 1 |
| Operating Temperature | - | 85 °C |
| Operating Temperature | - | -40 °C |
| Package / Case | - | 28-VFQFN Exposed Pad |
| Programmable Features | - | Voltage, Current |
| Supplied Contents | Board(s) | Board(s) |
| Supplier Device Package | - | 28-WQFN (4x4) |
| Type | Power Management | Power Management |
| Voltage - Supply (Max) | - | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| DigiKey | N/A | 1 | $ 118.80 | |
| Digikey | Box | 1 | $ 118.80 | |
| Mouser Electronics | N/A | 1 | $ 131.66 | |
BQ24800 Series
SMBus 1-4 cell Buck battery charge controller to support hybrid power boost and battery boost mode
| Part | Package / Case | Supplier Device Package | Fault Protection | Mounting Type | Voltage - Supply (Max) [Max] | Current - Charging | Number of Cells [Max] [custom] | Number of Cells [Min] [custom] | Programmable Features | Operating Temperature [Max] | Operating Temperature [Min] | Battery Chemistry | Function | Supplied Contents | Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Texas Instruments BQ24800RUYT | 28-VFQFN Exposed Pad | 28-WQFN (4x4) | Over Current, Over Voltage, Short Circuit | Surface Mount | 24 V | Constant - Programmable | 4 | 1 | Current, Voltage | 85 °C | -40 °C | Multi-Chemistry | |||
Texas Instruments BQ24800EVM | Battery Charger | Board(s) | Power Management | ||||||||||||
Texas Instruments BQ24800RUYR | 28-VFQFN Exposed Pad | 28-WQFN (4x4) | Over Current, Over Voltage, Short Circuit | Surface Mount | 24 V | Constant - Programmable | 4 | 1 | Current, Voltage | 85 °C | -40 °C | Multi-Chemistry |
Description
General part information
BQ24800 Series
The BQ24800 device is a high-efficiency, synchronous buck multi-chemistry battery charger supporting 1-, 2-, 3-, or 4-series Li+ cells, or other battery chemistries up to 19.2V.
Through SMBus, a host microcontroller programs charge current, charge voltage, input current limit and discharge current limit with high regulation accuracies. Additionally, the BQ24800 supports a two level input current limit (Peak Power mode) to fully utilize the adapter capabilities and reduce battery discharge. The BQ24800 provides adapter current (IADP), battery discharge current (IDCHG), and system power (PMON) signals to the host microcontroller and outputs the PROCHOT signal to throttle back CPU speed when needed.
The BQ24800 supports hybrid power boost mode to boost the battery voltage to supplement the adapter when system power demand is temporarily higher than the adapter is able to provide. When the adapter is not present, the BQ24800 supports battery only boost mode to boost the battery voltage above the minimum system operating voltage, providing more headroom to support system transients.
