BQ27742EVM
ActiveTexas Instruments
EVAL BOARD BATT FUEL GAUGE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
BQ27742EVM
ActiveTexas Instruments
EVAL BOARD BATT FUEL GAUGE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | BQ27742EVM | BQ27742 Series |
|---|---|---|
| Battery Chemistry | - | Lithium Ion |
| Embedded | False | False |
| Fault Protection | - | Over Current, Short Circuit, Over/Under Voltage |
| Function | Battery Gauge | Battery Gauge, Multi-Function Controller |
| Interface | - | I2C, HDQ |
| Mounting Type | - | Surface Mount |
| Number of Cells | - | 1 |
| Operating Temperature | - | 85 °C |
| Operating Temperature | - | -40 °C |
| Package / Case | - | 15-UFBGA, DSBGA |
| Supplied Contents | Board(s) | Board(s) |
| Supplier Device Package | - | 15-DSBGA |
| Type | Power Management | Power Management |
| Utilized IC / Part | BQ27742 | BQ27742 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 178.80 | |
BQ27742 Series
EVAL BOARD BATT FUEL GAUGE
| Part | Supplied Contents | Utilized IC / Part | Function | Type | Embedded | Fault Protection | Battery Chemistry | Supplier Device Package | Interface | Number of Cells | Package / Case | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Texas Instruments BQ27742EVM | Board(s) | BQ27742 | Battery Gauge | Power Management | ||||||||||
Texas Instruments BQ27742YZFT-G1 | Multi-Function Controller | Over Current, Over/Under Voltage, Short Circuit | Lithium Ion | 15-DSBGA | HDQ, I2C | 1 | 15-UFBGA, DSBGA | 85 °C | -40 °C | Surface Mount | ||||
Texas Instruments BQ27742YZFR-G1 | Multi-Function Controller | Over Current, Over/Under Voltage, Short Circuit | Lithium Ion | 15-DSBGA | HDQ, I2C | 1 | 15-UFBGA, DSBGA | 85 °C | -40 °C | Surface Mount |
Description
General part information
BQ27742 Series

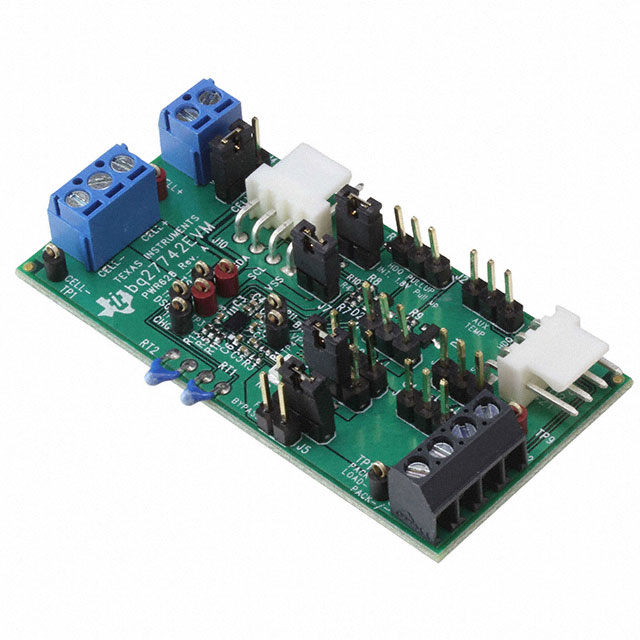

BQ27742 Battery Gauge Power Management Evaluation Board
