LPF-16D-54

Active

MEAN WELL USA Inc.

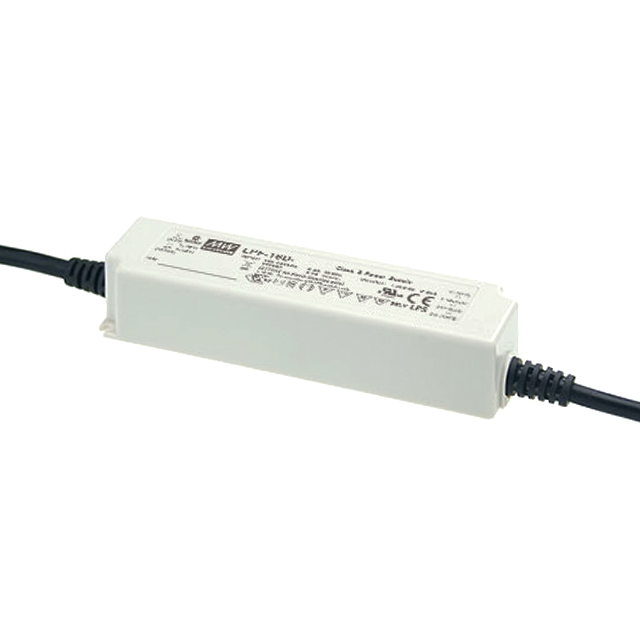

LED DRVR CC AC/DC 29.7-54V 300MA

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

LPF-16D-54

Active

MEAN WELL USA Inc.

LED DRVR CC AC/DC 29.7-54V 300MA

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	LPF-16D-54

Approval Agency	CE, PSE, ENEC, CCC, CB, cURus
Current - Output (Max) [Max]	300 mA
Dimming	Analog, PWM
Efficiency	84.5 %
Features	OTP, SCP, OVP, OCP
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-35 °C
Power (Watts)	16 W
Ratings	IP30
Size / Dimension [x]	5.83 in
Size / Dimension [x]	148 mm
Size / Dimension [y]	40 mm
Size / Dimension [y]	1.57 "
Size / Dimension [z]	32 mm
Size / Dimension [z]	1.26 in
Termination Style	Wire Leads
Topology	AC DC Converter
Type	Constant Current
Voltage - Input (Max) [Max]	305 VAC
Voltage - Input (Min) [Min]	90 VAC
Voltage - Isolation	3750 V
Voltage - Output [Max]	54 V
Voltage - Output [Min]	29.7 V

LPF-16 Series

Part	Voltage - Isolation	Features	Current - Output (Max) [Max]	Termination Style	Approval Agency	Mounting Type	Power (Watts)	Type	Topology	Voltage - Output [Max]	Voltage - Output [Min]	Ratings	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Voltage - Input (Min) [Min]	Number of Outputs	Efficiency	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Input (Max) [Max]	Dimming
MEAN WELL USA Inc. LPF-16-12	3750 V	OCP OTP OVP SCP	1.34 A	Wire Leads	CB CCC CE cURus ENEC PSE	Chassis Mount	16 W	Constant Current Voltage	AC DC Converter	12 V	6.6 V	IP30	5.83 in	32 mm	40 mm	1.57 "	1.26 in	148 mm	90 VAC	1	84 %	-35 °C	70 °C	305 VAC
MEAN WELL USA Inc. LPF-16D-20	3750 V	OCP OTP OVP SCP	800 mA	Wire Leads	CB CCC CE cURus ENEC PSE	Chassis Mount	16 W	Constant Current	AC DC Converter	20 V	11 V	IP30	5.83 in	32 mm	40 mm	1.57 "	1.26 in	148 mm	90 VAC	1	84.5 %	-35 °C	70 °C	305 VAC	Analog PWM
MEAN WELL USA Inc. LPF-16-30	3750 V	OCP OTP OVP SCP	540 mA	Wire Leads	CB CCC CE cURus ENEC PSE	Chassis Mount	16 W	Constant Current Voltage	AC DC Converter	30 VDC	16.5 V	IP30	5.83 in	32 mm	40 mm	1.57 "	1.26 in	148 mm	90 VAC	1	86 %	-35 °C	70 °C	305 VAC
MEAN WELL USA Inc. LPF-16D-36	3750 V	OCP OTP OVP SCP	450 mA	Wire Leads	CB CCC CE cURus ENEC PSE	Chassis Mount	16 W	Constant Current	AC DC Converter	36 V	19.8 V	IP30	5.83 in	32 mm	40 mm	1.57 "	1.26 in	148 mm	90 VAC	1	85 %	-35 °C	70 °C	305 VAC	Analog PWM
MEAN WELL USA Inc. LPF-16D-42	3750 V	OCP OTP OVP SCP	390 mA	Wire Leads	CB CCC CE cURus ENEC PSE	Chassis Mount	16 W	Constant Current	AC DC Converter	42 V	23.1 V	IP30	5.83 in	32 mm	40 mm	1.57 "	1.26 in	148 mm	90 VAC	1	85 %	-35 °C	70 °C	305 VAC	Analog PWM
MEAN WELL USA Inc. LPF-16-42	3750 V	OCP OTP OVP SCP	390 mA	Wire Leads	CB CCC CE cURus ENEC PSE	Chassis Mount	16 W	Constant Current Voltage	AC DC Converter	42 V	23.1 V	IP30	5.83 in	32 mm	40 mm	1.57 "	1.26 in	148 mm	90 VAC	1	86 %	-35 °C	70 °C	305 VAC
MEAN WELL USA Inc. LPF-16-36	3750 V	OCP OTP OVP SCP	450 mA	Wire Leads	CB CCC CE cURus ENEC PSE	Chassis Mount	16 W	Constant Current Voltage	AC DC Converter	36 V	19.8 V	IP30	5.83 in	32 mm	40 mm	1.57 "	1.26 in	148 mm	90 VAC	1	86 %	-35 °C	70 °C	305 VAC
MEAN WELL USA Inc. LPF-16-24	3750 V	OCP OTP OVP SCP	670 mA	Wire Leads	CB CCC CE cURus ENEC PSE	Chassis Mount	16 W	Constant Current Voltage	AC DC Converter	24 V	13.2 V	IP30	5.83 in	32 mm	40 mm	1.57 "	1.26 in	148 mm	90 VAC	1	86 %	-35 °C	70 °C	305 VAC
MEAN WELL USA Inc. LPF-16D-54	3750 V	OCP OTP OVP SCP	300 mA	Wire Leads	CB CCC CE cURus ENEC PSE	Chassis Mount	16 W	Constant Current	AC DC Converter	54 V	29.7 V	IP30	5.83 in	32 mm	40 mm	1.57 "	1.26 in	148 mm	90 VAC	1	84.5 %	-35 °C	70 °C	305 VAC	Analog PWM

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 21.90
		5	$ 20.80
		10	$ 19.90
		25	$ 19.30

Description

General part information

LPF-16 Series

300mA 29.7 ~ 54V Constant Current LED Driver AC DC Converter Topology 1 Output
