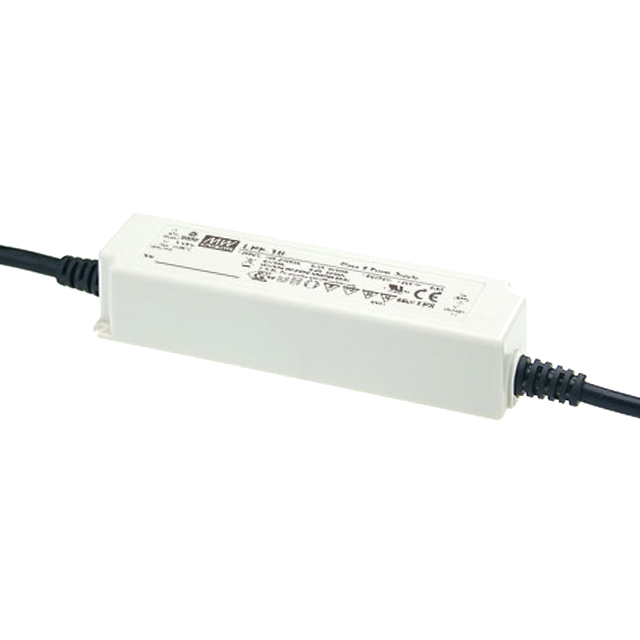

Specification	LPF-16-36

Approval Agency	PSE, CCC, CE, ENEC, cURus, CB
Current - Output (Max)	450 mA
Efficiency	86 %
Features	OCP, SCP, OTP, OVP
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature (Max)	70 °C
Operating Temperature (Min)	-35 °C
Power (Watts)	16 W
Ratings	IP30
Size / Dimension Height	1.26 in
Size / Dimension Length	5.83 in
Size / Dimension Width	1.57 in
Termination Style	Wire Leads
Topology	AC DC Converter
Type	Constant Current, Voltage
Voltage - Input (Max)	305 V
Voltage - Input (Min)	90 VAC
Voltage - Isolation	3750 VDC
Voltage - Output (Max)	36 V
Voltage - Output (Min)	19.8 V

LPF-16 Series

Part	Current - Output (Max)	Topology	Power (Watts)	Number of Outputs	Termination Style	Size / Dimension Length	Size / Dimension Width	Size / Dimension Height	Ratings	Operating Temperature (Min)	Operating Temperature (Max)	Dimming	Voltage - Isolation	Approval Agency	Type	Efficiency	Voltage - Output (Max)	Voltage - Output (Min)	Features	Voltage - Input (Min)	Voltage - Input (Max)	Mounting Type
MEAN WELL USA Inc. LPF-16D-30	540 mA	AC DC Converter	16 W	1	Wire Leads	5.83 in	1.57 in	1.26 in	IP30	-35 °C	70 °C	Analog PWM	3750 VDC	CB CCC CE cURus ENEC PSE	Constant Current	84.5 %	30 V	16.5 V	OCP OTP OVP SCP	90 VAC	305 V	Chassis Mount
MEAN WELL USA Inc. LPF-16-12	1.34 A	AC DC Converter	16 W	1	Wire Leads	5.83 in	1.57 in	1.26 in	IP30	-35 °C	70 °C		3750 VDC	CB CCC CE cURus ENEC PSE	Constant Current Voltage	84 %	12 V	6.6 V	OCP OTP OVP SCP	90 VAC	305 V	Chassis Mount
MEAN WELL USA Inc. LPF-16D-20	800 mA	AC DC Converter	16 W	1	Wire Leads	5.83 in	1.57 in	1.26 in	IP30	-35 °C	70 °C	Analog PWM	3750 VDC	CB CCC CE cURus ENEC PSE	Constant Current	84.5 %	20 V	11 V	OCP OTP OVP SCP	90 VAC	305 V	Chassis Mount
MEAN WELL USA Inc. LPF-16-30	540 mA	AC DC Converter	16 W	1	Wire Leads	5.83 in	1.57 in	1.26 in	IP30	-35 °C	70 °C		3750 VDC	CB CCC CE cURus ENEC PSE	Constant Current Voltage	86 %	30 V	16.5 V	OCP OTP OVP SCP	90 VAC	305 V	Chassis Mount
MEAN WELL USA Inc. LPF-16D-36	450 mA	AC DC Converter	16 W	1	Wire Leads	5.83 in	1.57 in	1.26 in	IP30	-35 °C	70 °C	Analog PWM	3750 VDC	CB CCC CE cURus ENEC PSE	Constant Current	85 %	36 V	19.8 V	OCP OTP OVP SCP	90 VAC	305 V	Chassis Mount
MEAN WELL USA Inc. LPF-16D-42	390 mA	AC DC Converter	16 W	1	Wire Leads	5.83 in	1.57 in	1.26 in	IP30	-35 °C	70 °C	Analog PWM	3750 VDC	CB CCC CE cURus ENEC PSE	Constant Current	85 %	42 V	23.1 V	OCP OTP OVP SCP	90 VAC	305 V	Chassis Mount
MEAN WELL USA Inc. LPF-16-42	390 mA	AC DC Converter	16 W	1	Wire Leads	5.83 in	1.57 in	1.26 in	IP30	-35 °C	70 °C		3750 VDC	CB CCC CE cURus ENEC PSE	Constant Current Voltage	86 %	42 V	23.1 V	OCP OTP OVP SCP	90 VAC	305 V	Chassis Mount
MEAN WELL USA Inc. LPF-16-36	450 mA	AC DC Converter	16 W	1	Wire Leads	5.83 in	1.57 in	1.26 in	IP30	-35 °C	70 °C		3750 VDC	CB CCC CE cURus ENEC PSE	Constant Current Voltage	86 %	36 V	19.8 V	OCP OTP OVP SCP	90 VAC	305 V	Chassis Mount
MEAN WELL USA Inc. LPF-16-20	800 mA	AC DC Converter	16 W	1	Wire Leads	5.83 in	1.57 in	1.26 in	IP30	-35 °C	70 °C		3750 VDC	CB CCC CE cURus ENEC PSE	Constant Current Voltage	86 %	20 V	11 V	OCP OTP OVP SCP	90 VAC	305 V	Chassis Mount
MEAN WELL USA Inc. LPF-16-48	340 mA	AC DC Converter	16 W	1	Wire Leads	5.83 in	1.57 in	1.26 in	IP30	-35 °C	70 °C		3750 VDC	CB CCC CE cURus ENEC PSE	Constant Current Voltage	86 %	48 V	26.4 V	OCP OTP OVP SCP	90 VAC	305 V	Chassis Mount
