TL3301BF160QGTUBE

Active

E-Switch

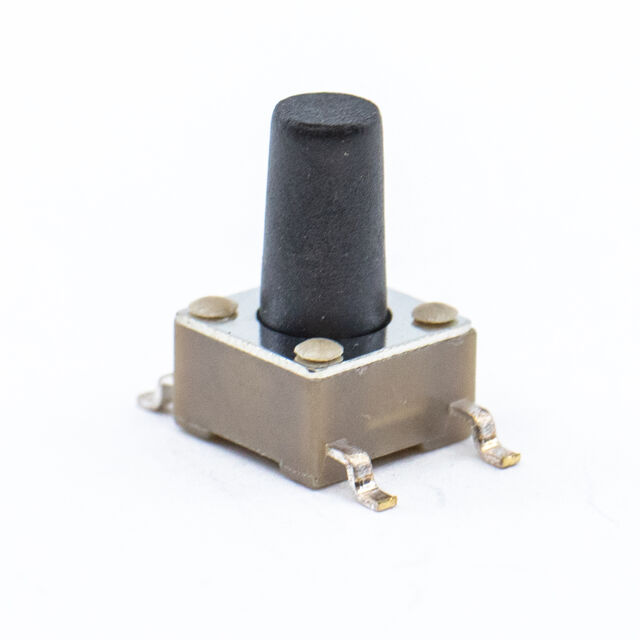

SWITCH TACTILE SPST-NO 0.05A 12V

Deep-Dive with AI

Search across all available documentation for this part.

TL3301BF160QGTUBE

Active

E-Switch

SWITCH TACTILE SPST-NO 0.05A 12V

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TL3301BF160QGTUBE

Actuator Height off PCB, Vertical	9.5 mm
Actuator Material	Nylon, Polyamide (PA)
Actuator Orientation	Top Actuated
Actuator Type	Standard
Circuit	SPST-NO
Contact Rating @ Voltage	0.05 A, 12 VDC
Illumination	Non-Illuminated
Mechanical Life	100000 Cycles
Mounting Type	Surface Mount
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 C
Outline [x]	6 mm
Outline [y]	6 mm
Switch Function	Off-Mom
Switch Travel	0.25 mm
Termination Style	Gull Wing

TL3301 Series

Part	Outline [y]	Outline [x]	Actuator Type	Mechanical Life	Switch Travel	Mounting Type	Circuit	Switch Function	Actuator Material	Operating Temperature [Min]	Operating Temperature [Max]	Illumination	Termination Style	Actuator Orientation	Actuator Height off PCB, Vertical	Contact Rating @ Voltage	Actuator Height off PCB, Vertical [z]	Operating Force
E-Switch TL3301BF160QGTUBE	6 mm	6 mm	Standard	100000 Cycles	0.25 mm	Surface Mount	SPST-NO	Off-Mom	Nylon Polyamide (PA)	-20 C	70 °C	Non-Illuminated	Gull Wing	Top Actuated	9.5 mm	0.05 A 12 VDC
E-Switch TL3301DF260RG	6 mm	6 mm	Standard	100000 Cycles	0.25 mm	Surface Mount	SPST-NO	Off-Mom	Nylon Polyamide (PA)	-20 C	70 °C	Non-Illuminated	Gull Wing	Top Actuated		0.05 A 12 VDC	13 mm	260 gf
E-Switch TL3301CF260QJ	6 mm	6 mm	Standard	100000 Cycles	0.25 mm	Surface Mount	SPST-NO	Off-Mom	Nylon Polyamide (PA)	-20 C	70 °C	Non-Illuminated	J Lead	Top Actuated		0.05 A 12 VDC	8 mm	260 gf
E-Switch TL3301NF160QJ	6 mm	6 mm	Standard	100000 Cycles	0.25 mm	Surface Mount	SPST-NO	Off-Mom	Nylon Polyamide (PA)	-20 C	70 °C	Non-Illuminated	J Lead	Top Actuated		0.05 A 12 VDC	4.3 mm
E-Switch TL3301PF100QG	6 mm	6 mm	Standard	100000 Cycles	0.25 mm	Surface Mount	SPST-NO	Off-Mom	Nylon Polyamide (PA)	-20 C	70 °C	Non-Illuminated	Gull Wing	Top Actuated	8.5 mm	0.05 A 12 VDC		100 gf
E-Switch TL3301SPF160QG1RBLK	6 mm	6 mm	Round Button	100000 Cycles	0.25 mm	Surface Mount	SPST-NO	Off-Mom	Nylon Polyamide (PA)	-20 C	70 °C	Non-Illuminated	Gull Wing	Top Actuated		0.05 A 12 VDC	7.5 mm
E-Switch TL3301CF100QJ	6 mm	6 mm	Standard	100000 Cycles	0.25 mm	Surface Mount	SPST-NO	Off-Mom	Nylon Polyamide (PA)	-20 C	70 °C	Non-Illuminated	J Lead	Top Actuated		0.05 A 12 VDC	8 mm	100 gf
E-Switch TL3301EF260QG	6 mm	6 mm	Standard	100000 Cycles	0.25 mm	Surface Mount	SPST-NO	Off-Mom	Nylon Polyamide (PA)	-20 C	70 °C	Non-Illuminated	Gull Wing	Top Actuated		0.05 A 12 VDC	7.3 mm	260 gf
E-Switch TL3301LF260QG	6 mm	6 mm	Standard	100000 Cycles	0.25 mm	Surface Mount	SPST-NO	Off-Mom	Nylon Polyamide (PA)	-20 C	70 °C	Non-Illuminated	Gull Wing	Top Actuated		0.05 A 12 VDC		260 gf
E-Switch TL3301BF160RJ	6 mm	6 mm	Standard	100000 Cycles	0.25 mm	Surface Mount	SPST-NO	Off-Mom	Nylon Polyamide (PA)	-20 C	70 °C	Non-Illuminated	J Lead	Top Actuated	9.5 mm	0.05 A 12 VDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 0.47
		10	$ 0.39
		25	$ 0.36
		100	$ 0.31
		250	$ 0.29
		500	$ 0.27
		1000	$ 0.25
		2500	$ 0.23
		5000	$ 0.22

Description

General part information

TL3301 Series

Tactile Switch SPST-NO Top Actuated Surface Mount
