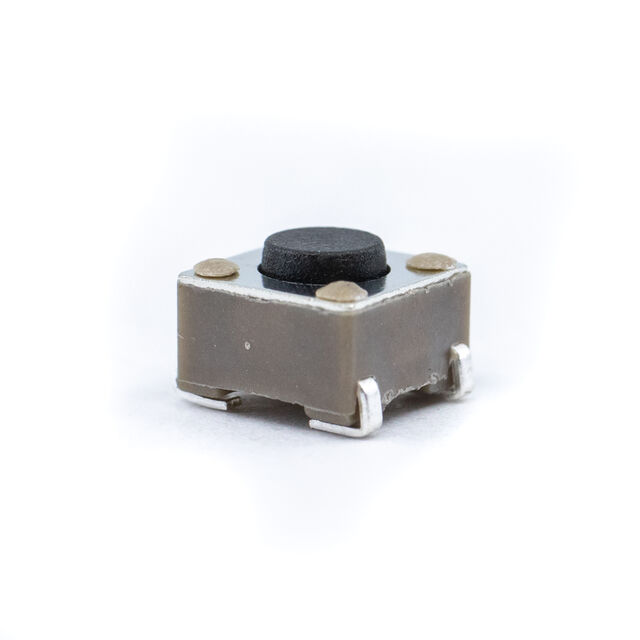

TL3301NF160QJ

Active

E-Switch

SWITCH TACTILE SPST-NO 0.05A 12V

Deep-Dive with AI

Search across all available documentation for this part.

TL3301NF160QJ

Active

E-Switch

SWITCH TACTILE SPST-NO 0.05A 12V

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TL3301NF160QJ

Actuator Height off PCB, Vertical [z]	4.3 mm
Actuator Material	Nylon, Polyamide (PA)
Actuator Orientation	Top Actuated
Actuator Type	Standard
Circuit	SPST-NO
Contact Rating @ Voltage	0.05 A, 12 VDC
Illumination	Non-Illuminated
Mechanical Life	100000 Cycles
Mounting Type	Surface Mount
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 C
Outline [x]	6 mm
Outline [y]	6 mm
Switch Function	Off-Mom
Switch Travel	0.25 mm
Termination Style	J Lead

TL3301 Series

Part	Outline [y]	Outline [x]	Actuator Type	Mechanical Life	Switch Travel	Mounting Type	Circuit	Switch Function	Actuator Material	Operating Temperature [Min]	Operating Temperature [Max]	Illumination	Termination Style	Actuator Orientation	Actuator Height off PCB, Vertical	Contact Rating @ Voltage	Actuator Height off PCB, Vertical [z]	Operating Force
E-Switch TL3301BF160QGTUBE	6 mm	6 mm	Standard	100000 Cycles	0.25 mm	Surface Mount	SPST-NO	Off-Mom	Nylon Polyamide (PA)	-20 C	70 °C	Non-Illuminated	Gull Wing	Top Actuated	9.5 mm	0.05 A 12 VDC
E-Switch TL3301DF260RG	6 mm	6 mm	Standard	100000 Cycles	0.25 mm	Surface Mount	SPST-NO	Off-Mom	Nylon Polyamide (PA)	-20 C	70 °C	Non-Illuminated	Gull Wing	Top Actuated		0.05 A 12 VDC	13 mm	260 gf
E-Switch TL3301CF260QJ	6 mm	6 mm	Standard	100000 Cycles	0.25 mm	Surface Mount	SPST-NO	Off-Mom	Nylon Polyamide (PA)	-20 C	70 °C	Non-Illuminated	J Lead	Top Actuated		0.05 A 12 VDC	8 mm	260 gf
E-Switch TL3301NF160QJ	6 mm	6 mm	Standard	100000 Cycles	0.25 mm	Surface Mount	SPST-NO	Off-Mom	Nylon Polyamide (PA)	-20 C	70 °C	Non-Illuminated	J Lead	Top Actuated		0.05 A 12 VDC	4.3 mm
E-Switch TL3301PF100QG	6 mm	6 mm	Standard	100000 Cycles	0.25 mm	Surface Mount	SPST-NO	Off-Mom	Nylon Polyamide (PA)	-20 C	70 °C	Non-Illuminated	Gull Wing	Top Actuated	8.5 mm	0.05 A 12 VDC		100 gf
E-Switch TL3301SPF160QG1RBLK	6 mm	6 mm	Round Button	100000 Cycles	0.25 mm	Surface Mount	SPST-NO	Off-Mom	Nylon Polyamide (PA)	-20 C	70 °C	Non-Illuminated	Gull Wing	Top Actuated		0.05 A 12 VDC	7.5 mm
E-Switch TL3301CF100QJ	6 mm	6 mm	Standard	100000 Cycles	0.25 mm	Surface Mount	SPST-NO	Off-Mom	Nylon Polyamide (PA)	-20 C	70 °C	Non-Illuminated	J Lead	Top Actuated		0.05 A 12 VDC	8 mm	100 gf
E-Switch TL3301EF260QG	6 mm	6 mm	Standard	100000 Cycles	0.25 mm	Surface Mount	SPST-NO	Off-Mom	Nylon Polyamide (PA)	-20 C	70 °C	Non-Illuminated	Gull Wing	Top Actuated		0.05 A 12 VDC	7.3 mm	260 gf
E-Switch TL3301LF260QG	6 mm	6 mm	Standard	100000 Cycles	0.25 mm	Surface Mount	SPST-NO	Off-Mom	Nylon Polyamide (PA)	-20 C	70 °C	Non-Illuminated	Gull Wing	Top Actuated		0.05 A 12 VDC		260 gf
E-Switch TL3301BF160RJ	6 mm	6 mm	Standard	100000 Cycles	0.25 mm	Surface Mount	SPST-NO	Off-Mom	Nylon Polyamide (PA)	-20 C	70 °C	Non-Illuminated	J Lead	Top Actuated	9.5 mm	0.05 A 12 VDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.46
		10	$ 0.45
		25	$ 0.43
		100	$ 0.37
		250	$ 0.34
		500	$ 0.31
	Digi-Reel®	1	$ 0.46
		10	$ 0.45
		25	$ 0.43
		100	$ 0.37
		250	$ 0.34
		500	$ 0.31
	Tape & Reel (TR)	1100	$ 0.28
		3300	$ 0.27
		5500	$ 0.25
		11000	$ 0.23

Description

General part information

TL3301 Series

Tactile Switch SPST-NO Top Actuated Surface Mount

Documents

Technical documentation and resources

No documents available
