E3522S.44.03

Active

Prysmian Group

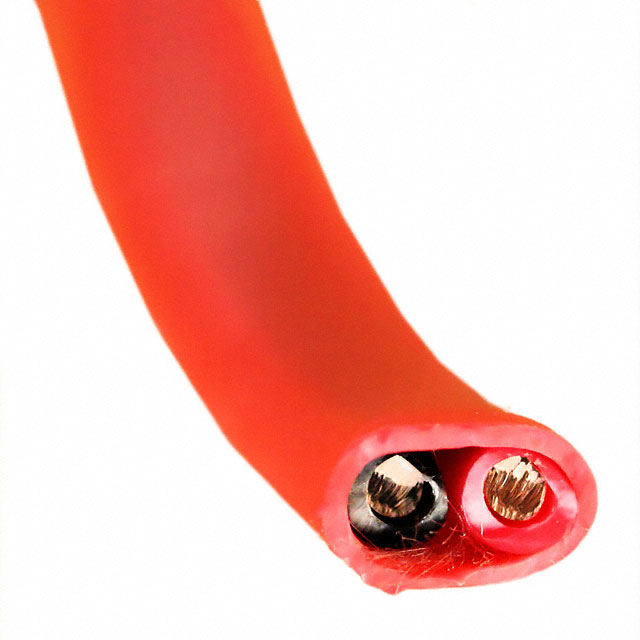

CABLE 2COND 14AWG RED

Deep-Dive with AI

Search across all available documentation for this part.

E3522S.44.03

Active

Prysmian Group

CABLE 2COND 14AWG RED

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	E3522S.44.03

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Annealed Bare
Conductor Strand	Solid
Features	Rip Cord
Jacket (Insulation) Diameter [diameter]	0.205 in
Jacket (Insulation) Diameter [diameter]	5.21 mm
Jacket (Insulation) Material	Plenum, Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.015 in
Jacket (Insulation) Thickness	0.381 mm
Jacket Color	Red
Length	2500 ft
Length	762 m
Number of Conductors	2
Operating Temperature [Max]	75 ░C
Operating Temperature [Min]	0 °C
Ratings	ASTM B-3
Usage	Alarm, Safety
Voltage	300 V
Wire Gauge	13.5 AWG

E3522S Series

Part	Wire Gauge	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Strand	Length	Length	Number of Conductors	Jacket (Insulation) Material	Voltage	Conductor Insulation	Features	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Usage	Conductor Material	Cable Type	Operating Temperature [Max]	Jacket Color	Ratings	Length [x]	Length [x]
Prysmian Group E3522S.41.0305	13.5 AWG	0.205 in	5.21 mm	Solid	1000 ft	304.8 m	2	Plenum Poly-Vinyl Chloride (PVC)	300 V	Poly-Vinyl Chloride (PVC)	Rip Cord	0.015 in	0.381 mm	Alarm Security Sound	Copper Annealed Bare	Multi-Conductor	75 ░C	Red Yellow
Prysmian Group E3522S.41.03	13.5 AWG	0.205 in	5.21 mm	Solid	1000 ft	15.24 m 304.8 m	2	Plenum Poly-Vinyl Chloride (PVC)	300 V	Poly-Vinyl Chloride (PVC)	Rip Cord	0.015 in	0.381 mm	Alarm Safety	Copper Annealed Bare	Multi-Conductor	75 ░C	Red	ASTM B-3	30.5 m 152.4 m	50 ft 100 ft 500 '
Prysmian Group E3522S.41.05	13.5 AWG	0.205 in	5.21 mm	Solid	1000 ft	15.24 m 304.8 m	2	Plenum Poly-Vinyl Chloride (PVC)	300 V	Poly-Vinyl Chloride (PVC)	Rip Cord	0.015 in	0.381 mm	Alarm Safety	Copper Annealed Bare	Multi-Conductor	75 ░C	Yellow	ASTM B-3	7.62 m 30.5 m	25 ft 50 ft 100 ft
Prysmian Group E3522S.86.03	13.5 AWG	0.205 in	5.21 mm	Solid			2	Plenum Poly-Vinyl Chloride (PVC)	300 V	Poly-Vinyl Chloride (PVC)	Rip Cord	0.015 in	0.381 mm	Alarm Safety	Copper Annealed Bare	Multi-Conductor	75 ░C	Red	ASTM B-3	152.4 m	500 '
Prysmian Group E3522S.41.06	13.5 AWG	0.205 in	5.21 mm	Solid	1000 ft	304.8 m	2	Plenum Poly-Vinyl Chloride (PVC)	300 V	Poly-Vinyl Chloride (PVC)	Rip Cord	0.015 in	0.381 mm	Alarm Safety	Copper Annealed Bare	Multi-Conductor	75 ░C	Green	ASTM B-3
Prysmian Group E3522S.41.01	13.5 AWG	0.205 in	5.21 mm	Solid	1000 ft	15.24 m 304.8 m	2	Plenum Poly-Vinyl Chloride (PVC)	300 V	Poly-Vinyl Chloride (PVC)	Rip Cord	0.015 in	0.381 mm	Alarm Safety	Copper Annealed Bare	Multi-Conductor	75 ░C	Black	ASTM B-3	7.62 m 30.5 m	25 ft 50 ft 100 ft
Prysmian Group E3522S.41.02	13.5 AWG	0.205 in	5.21 mm	Solid	1000 ft	15.24 m 304.8 m	2	Plenum Poly-Vinyl Chloride (PVC)	300 V	Poly-Vinyl Chloride (PVC)	Rip Cord	0.015 in	0.381 mm	Alarm Safety	Copper Annealed Bare	Multi-Conductor	75 ░C		ASTM B-3	30.5 m	50 ft 100 ft
Prysmian Group E3522S.69.0302	13.5 AWG	0.205 in	5.21 mm	Solid	1000 ft	304.8 m	2	Plenum Poly-Vinyl Chloride (PVC)	300 V	Poly-Vinyl Chloride (PVC)	Rip Cord	0.015 in	0.381 mm	Alarm Security Sound	Copper Annealed Bare	Multi-Conductor	75 ░C	Red White
Prysmian Group E3522S.44.03	13.5 AWG	0.205 in	5.21 mm	Solid	2500 ft	762 m	2	Plenum Poly-Vinyl Chloride (PVC)	300 V	Poly-Vinyl Chloride (PVC)	Rip Cord	0.015 in	0.381 mm	Alarm Safety	Copper Annealed Bare	Multi-Conductor	75 ░C	Red	ASTM B-3
Prysmian Group E3522S.18.03	13.5 AWG	0.205 in	5.21 mm	Solid			2	Plenum Poly-Vinyl Chloride (PVC)	300 V	Poly-Vinyl Chloride (PVC)	Rip Cord	0.015 in	0.381 mm	Alarm Safety	Copper Annealed Bare	Multi-Conductor	75 ░C	Red	ASTM B-3	152.4 m	500 '

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	25000	$ 0.34

Description

General part information

E3522S Series

2 Conductor Multi-Conductor Cable Red 14 AWG 2500' (762.0m)

Documents

Technical documentation and resources

No documents available
