E3522S.41.01
ActivePrysmian Group

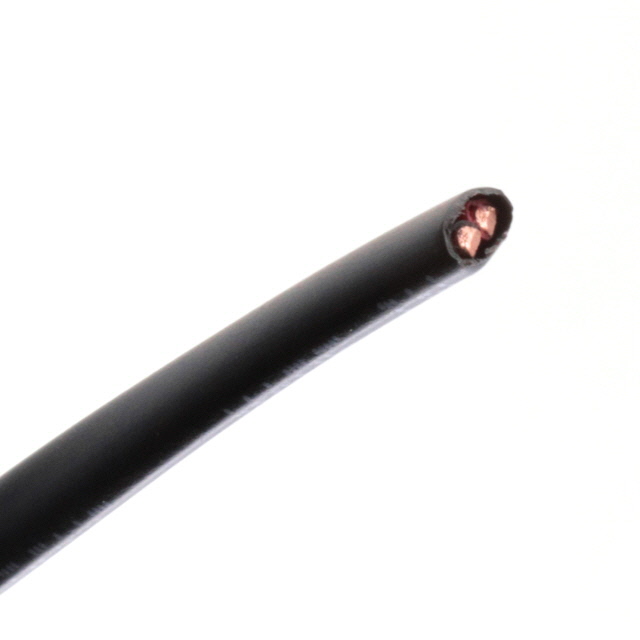

CABLE 2COND 14AWG BLACK 50'
Deep-Dive with AI
Search across all available documentation for this part.
E3522S.41.01
ActivePrysmian Group
CABLE 2COND 14AWG BLACK 50'
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | E3522S.41.01 |
|---|---|
| Cable Type | Multi-Conductor |
| Conductor Insulation | Poly-Vinyl Chloride (PVC) |
| Conductor Material | Copper, Annealed Bare |
| Conductor Strand | Solid |
| Features | Rip Cord |
| Jacket (Insulation) Diameter [diameter] | 0.205 in |
| Jacket (Insulation) Diameter [diameter] | 5.21 mm |
| Jacket (Insulation) Material | Plenum, Poly-Vinyl Chloride (PVC) |
| Jacket (Insulation) Thickness | 0.015 in |
| Jacket (Insulation) Thickness | 0.381 mm |
| Jacket Color | Black |
| Length | 1000 ft |
| Length | 304.8 m, 15.24 m |
| Length [x] | 30.5 m, 7.62 m |
| Length [x] | 100 ft, 50 ft, 25 ft |
| Number of Conductors | 2 |
| Operating Temperature [Max] | 75 ░C |
| Operating Temperature [Min] | 0 °C |
| Ratings | ASTM B-3 |
| Usage | Alarm, Safety |
| Voltage | 300 V |
| Wire Gauge | 13.5 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 79.19 | |
| 1 | $ 42.42 | |||
| 1 | $ 20.11 | |||
| 5 | $ 64.79 | |||
| 5 | $ 16.45 | |||
| 5 | $ 34.71 | |||
| 10 | $ 27.00 | |||
| 10 | $ 50.39 | |||
| 10 | $ 12.80 | |||
| 1000 | $ 0.43 | |||
| 3000 | $ 0.40 | |||
| 5000 | $ 0.39 | |||
| 10000 | $ 0.37 | |||
| 25000 | $ 0.36 | |||
Description
General part information
E3522S Series
2 Conductor Multi-Conductor Cable Black 14 AWG 50.00' (15.24m)
Documents
Technical documentation and resources
No documents available
