R142085000W

Active

Radiall USA, Inc.

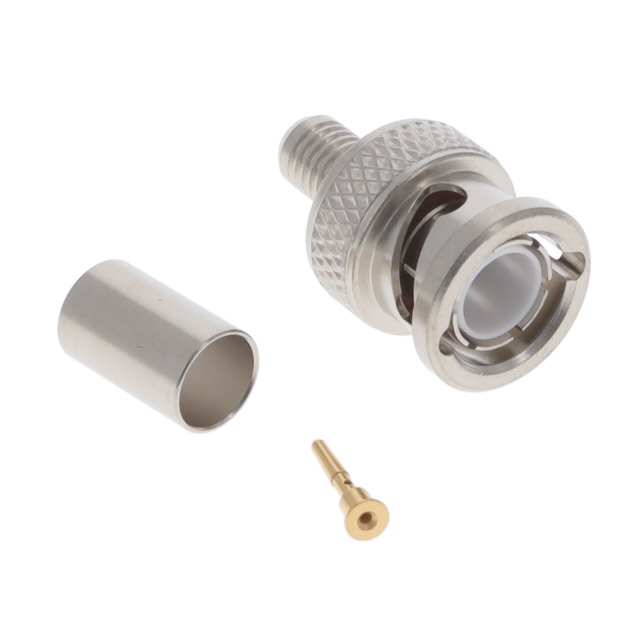

RF BNC CONNECTOR, 1 CONTACT(S), MALE, CABLE MOUNT, CRIMP TERMINAL, PLUG,

Search across all available documentation for this part.

Active

Radiall USA, Inc.

RF BNC CONNECTOR, 1 CONTACT(S), MALE, CABLE MOUNT, CRIMP TERMINAL, PLUG,

Technical Specifications

Parameters and characteristics for this part

Specification	R142085000W

Body Finish	Nickel
Body Material	Brass
Cable Group	62, RG-59
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	BNC
Connector Type	Male Pin, Plug
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Frequency - Max [Max]	1.5 GHz
Housing Color	Silver
Impedance	75 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	335 V

Part	Dielectric Material	Shield Termination	Body Finish	Operating Temperature [Min]	Operating Temperature [Max]	Contact Termination	Fastening Type	Connector Type	Center Contact Material	Housing Color	Center Contact Plating	Connector Style	Mounting Type	Voltage Rating	Frequency - Max [Max]	Number of Ports	Insertion Loss	Impedance	Body Material	Cable Group	Mating Cycles
Radiall USA, Inc. R142086161W	Polypropylene (PP)	Crimp	Nickel	-35 °C	70 °C	Crimp	Bayonet Lock	Male Pin Plug	Brass	Silver	Gold	BNC	Free Hanging (In-Line)	500 V	1.5 GHz	1	0.2 dB	75 Ohms	Brass
Radiall USA, Inc. R142086161	Polypropylene (PP)	Crimp	Nickel	-35 °C	70 °C	Crimp	Bayonet Lock	Male Pin Plug	Brass	Silver	Gold	BNC	Free Hanging (In-Line)	500 V	1.5 GHz	1	0.2 dB	75 Ohms	Brass
Radiall USA, Inc. R142085161	Polypropylene (PP)	Crimp	Nickel	-35 °C	70 °C	Crimp	Bayonet Lock	Male Pin Plug	Brass	Silver	Gold	BNC	Free Hanging (In-Line)	500 V	3 GHz	1	0.2 dB	75 Ohms	Brass
Radiall USA, Inc. R142085000W	Polytetrafluoroethylene (PTFE)	Crimp	Nickel	-65 ░C	165 °C	Crimp	Bayonet Lock	Male Pin Plug	Brass	Silver	Gold	BNC	Free Hanging (In-Line)	335 V	1.5 GHz	1		75 Ohms	Brass	62 RG-59	500
Radiall USA, Inc. R142085161W	Polypropylene (PP)	Crimp	Nickel	-35 °C	70 °C	Crimp	Bayonet Lock	Male Pin Plug	Brass	Silver	Gold	BNC	Free Hanging (In-Line)	500 V	3 GHz	1	0.2 dB	75 Ohms	Brass
