R14208 Series

Part	Mating Cycles	Center Contact Plating	Insertion Loss	Body Finish	Operating Temperature (Min)	Operating Temperature (Max)	Voltage Rating	Body Material	Dielectric Material	Frequency - Max	Shield Termination	Mounting Type	Number of Ports	Connector Type	Fastening Type	Contact Termination	Impedance	Connector Style	Housing Color	Center Contact Material	Cable Group
Radiall USA, Inc. R142086161W	100 cycles	Gold	0.2 dB	Nickel	-35 °C	70 °C	500 V	Brass	Polypropylene (PP)	1.5 GHz	Crimp	Free Hanging (In-Line)	1	Male Pin Plug	Bayonet Lock	Crimp	75 Ohm	BNC	Silver	Brass
Radiall USA, Inc. R142085702W	1000 cycles	Gold	0.2 dB	Nickel	-65 °C	165 °C	500 V	Brass	Polypropylene (PP)	6000 MHz	Crimp	Free Hanging (In-Line)	1	Male Pin Plug	Bayonet Lock	Crimp	75 Ohm	BNC	Silver	Brass	Belden 1505A RG-59

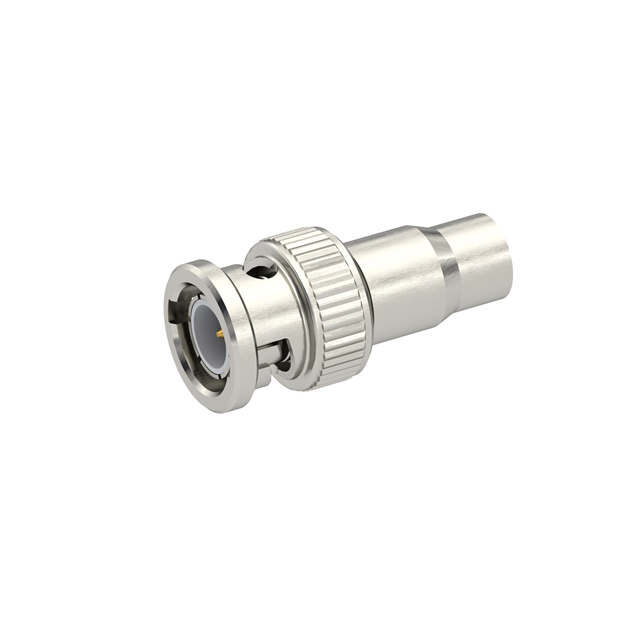

Radiall USA, Inc. R142086161	100 cycles	Gold	0.2 dB	Nickel	-35 °C	70 °C	500 V	Brass	Polypropylene (PP)	1.5 GHz	Crimp	Free Hanging (In-Line)	1	Male Pin Plug	Bayonet Lock	Crimp	75 Ohm	BNC	Silver	Brass
Radiall USA, Inc. R142085161	100 cycles	Gold	0.2 dB	Nickel	-35 °C	70 °C	500 V	Brass	Polypropylene (PP)	3 GHz	Crimp	Free Hanging (In-Line)	1	Male Pin Plug	Bayonet Lock	Crimp	75 Ohm	BNC	Silver	Brass
Radiall USA, Inc. R142085000W	500 cycles	Gold		Nickel	-65 °C	165 °C	335 V	Brass	Polytetrafluoroethylene (PTFE)	1.5 GHz	Crimp	Free Hanging (In-Line)	1	Male Pin Plug	Bayonet Lock	Crimp	75 Ohm	BNC	Silver	Brass	62 RG-59
Radiall USA, Inc. R142085161W	100 cycles	Gold	0.2 dB	Nickel	-35 °C	70 °C	500 V	Brass	Polypropylene (PP)	3 GHz	Crimp	Free Hanging (In-Line)	1	Male Pin Plug	Bayonet Lock	Crimp	75 Ohm	BNC	Silver	Brass

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

3D models and CAD resources for this part

Technical documentation and resources

No documents available
