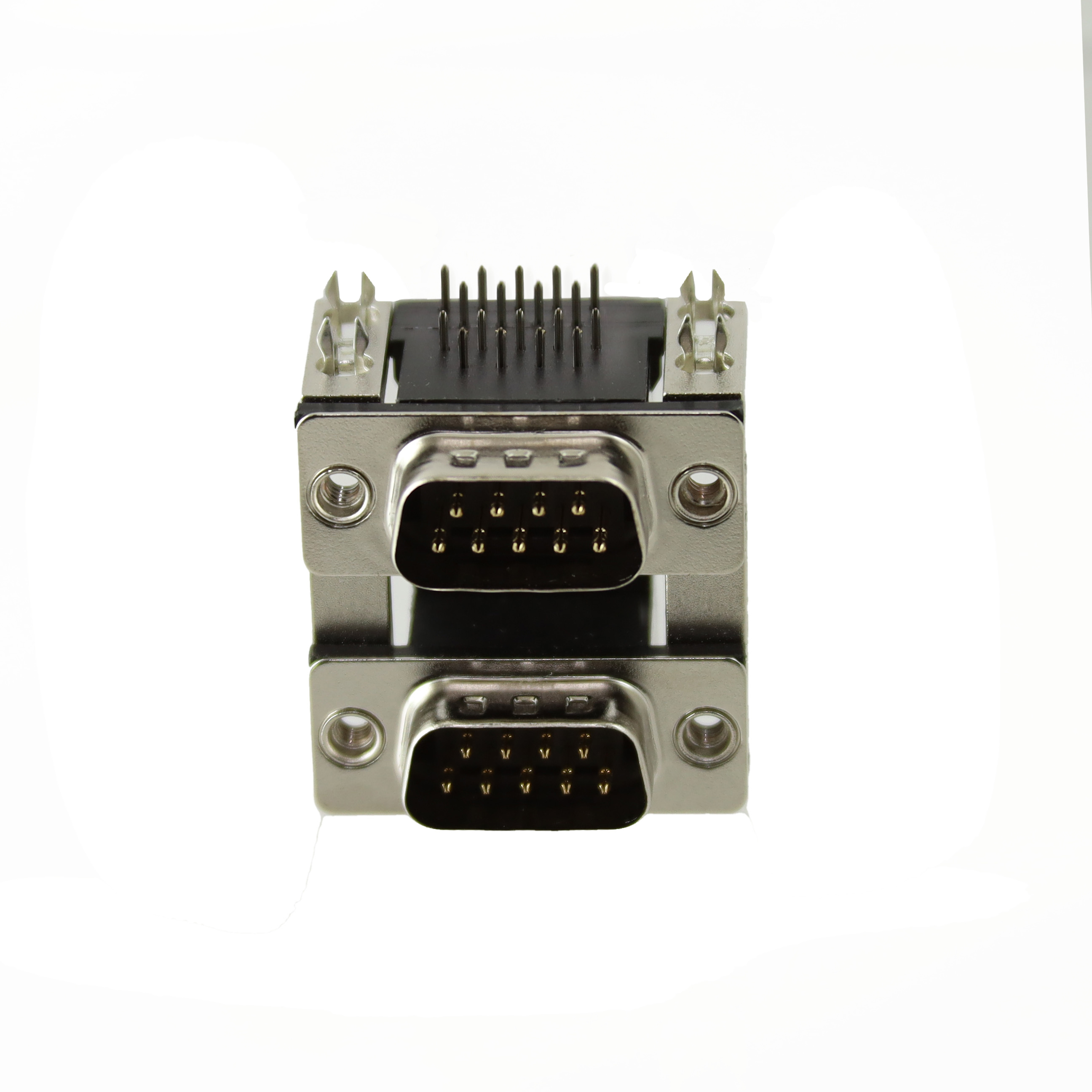

Specification	DPD-09-11-B3

Backset Spacing	0.318 in
Color	Black
Connector Style	D-Type - Stacked
Connector Type	Male Pins, Plug
Contact Finish	Gold
Contact Form	Stamped
Contact Material	Copper Alloy
Current Rating	3 A
Dielectric Material	Polybutylene Terephthalate (PBT)
Features	Mounting Brackets, Grounding Indents, Board Lock
Finish	Nickel Plated
Flange Feature	Shell (4-40), Housing
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	9
Number of Positions	9
Number of Rows	2
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-55 °C
Shell Material	Steel
Shell Size, Connector Layout	1 (DE, E)
Termination	Solder
Voltage Rating	250 V

DPD-09 Series

Part	Connector Type	Material Flammability Rating	Backset Spacing	Shell Material	Finish	Current Rating	Features	Number of Positions	Number of Positions	Mounting Type	Number of Rows	Connector Style	Flange Feature	Shell Size, Connector Layout	Termination	Contact Finish	Color	Contact Form	Voltage Rating	Contact Material	Dielectric Material	Operating Temperature (Min)	Operating Temperature (Max)	Contact Finish Thickness	Contact Finish Thickness (string set options)	Contact Finish Thickness	Contact Type
Adam Tech DPD-09-01-A3	Female Sockets Male Pins Plug Receptacle	UL94 V-0	0.318 in	Steel	Nickel Plated	3 A	Board Lock Grounding Indents Mounting Brackets	9	9	Right Angle Through Hole	2	D-Type - Stacked	Housing Shell (4-40)	1 (DE E)	Solder	Gold	Black	Stamped	250 V	Copper Alloy	Polybutylene Terephthalate (PBT)	-55 °C	85 °C
Adam Tech DPD-09-01-B2	Female Sockets Male Pins Plug Receptacle	UL94 V-0	0.318 in	Steel	Nickel Plated	3 A	Grounding Indents Mounting Brackets	9	9	Right Angle Through Hole	2	D-Type - Stacked	Housing Shell (4-40)	1 (DE E)	Solder	Gold	Black	Stamped	250 V	Copper Alloy	Polybutylene Terephthalate (PBT)	-55 °C	85 °C
Adam Tech DPD-09-00-B2	Female Sockets Receptacle	UL94 V-0	0.318 in	Steel	Nickel Plated	3 A	Mounting Brackets	9	9	Right Angle Through Hole	2	D-Type - Stacked	Housing Shell (4-40)	1 (DE E)	Solder	Gold	Black	Stamped	250 V	Copper Alloy	Polybutylene Terephthalate (PBT)	-55 °C	85 °C	0	Flash	Flash
Adam Tech DPD-09-00-B3	Female Sockets Receptacle	UL94 V-0	0.318 in	Steel	Nickel Plated	3 A	Board Lock Mounting Brackets	9	9	Right Angle Through Hole	2	D-Type - Stacked	Housing Shell (4-40)	1 (DE E)	Solder	Gold	Black	Stamped	250 V	Copper Alloy	Polybutylene Terephthalate (PBT)	-55 °C	85 °C
Adam Tech DPD-09-01-B3	Female Sockets Male Pins Plug Receptacle	UL94 V-0	0.318 in	Steel	Nickel Plated	3 A	Board Lock Grounding Indents Mounting Brackets	9	9	Right Angle Through Hole	2	D-Sub - Stacked	Mating Side (4-40)	1 (DE E)	Solder	Gold	Black	Stamped	250 V	Copper Alloy	Polybutylene Terephthalate (PBT)	-55 °C	85 °C	5 µin			Signal
Adam Tech DPD-09-00-B1	Female Sockets Receptacle	UL94 V-0	0.318 in	Steel	Zinc Plated	5 A	Mounting Brackets	9	9	Right Angle Through Hole	2	D-Type - Stacked	Housing Shell (Unthreaded)	1 (DE E)	Solder	Gold	Black	Stamped	250 V	Phosphor Bronze	Polybutylene Terephthalate (PBT)	-65 °C	125 °C	0	Flash	Flash
Adam Tech DPD-09-11-B3	Male Pins Plug	UL94 V-0	0.318 in	Steel	Nickel Plated	3 A	Board Lock Grounding Indents Mounting Brackets	9	9	Right Angle Through Hole	2	D-Type - Stacked	Housing Shell (4-40)	1 (DE E)	Solder	Gold	Black	Stamped	250 V	Copper Alloy	Polybutylene Terephthalate (PBT)	-55 °C	85 °C
