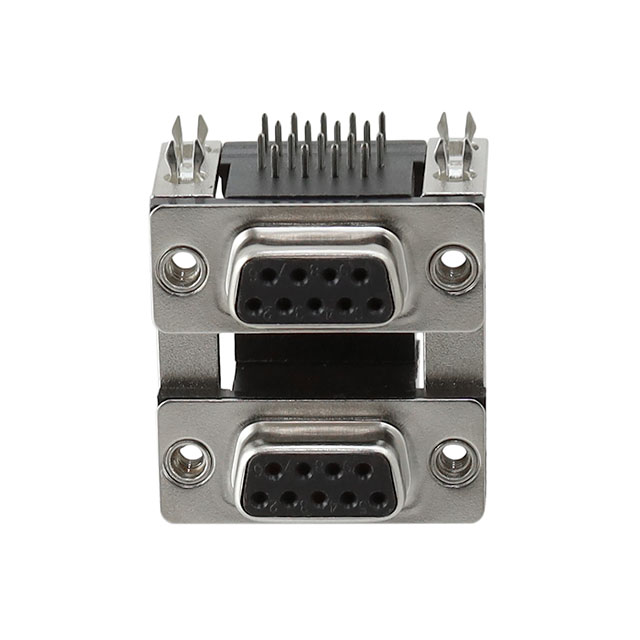

DPD-09-00-B3

Active

Adam Tech

CONN D-SUB F/F 9/9 POS 1.38MM SOLDER RA THRU-HOLE 18 TERMINAL 2 PORT TRAY

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsECBT2-E224053 Data Connectors, Signal, Control, Power Applications Datasheet

DPD-09-00-B3

Active

Adam Tech

CONN D-SUB F/F 9/9 POS 1.38MM SOLDER RA THRU-HOLE 18 TERMINAL 2 PORT TRAY

Deep-Dive with AI

DocumentsECBT2-E224053 Data Connectors, Signal, Control, Power Applications Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DPD-09-00-B3

Backset Spacing	8.08 mm
Backset Spacing	0.318 "
Color	Black
Connector Style	D-Type - Stacked
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Form	Stamped
Contact Material	Copper Alloy
Current Rating (Amps)	3 A
Dielectric Material	Polybutylene Terephthalate (PBT)
Features	Board Lock, Mounting Brackets
Flange Feature	Housing/Shell (4-40)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	9
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	1 (DE, E)
Termination	Solder
Voltage Rating	250 VAC

DPD-09 Series

Part	Material Flammability Rating	Dielectric Material	Contact Material	Shell Material, Finish	Number of Positions	Voltage Rating	Number of Rows	Backset Spacing	Backset Spacing	Current Rating (Amps)	Features	Contact Form	Shell Size, Connector Layout	Color	Contact Finish	Connector Type	Flange Feature	Termination	Connector Style	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish Thickness	Contact Finish Thickness	Contact Finish Thickness	Contact Type
Adam Tech DPD-09-01-A3	UL94 V-0	Polybutylene Terephthalate (PBT)	Copper Alloy	Nickel Plated Steel	9	250 VAC	2	8.08 mm	0.318 "	3 A	Board Lock Grounding Indents Mounting Brackets	Stamped	1 (DE E)	Black	Gold	Plug Male Pins Receptacle Female Sockets	Housing/Shell (4-40)	Solder	D-Type - Stacked	Through Hole Right Angle	85 °C	-55 °C
Adam Tech DPD-09-00-B2	UL94 V-0	Polybutylene Terephthalate (PBT)	Copper Alloy	Nickel Plated Steel	9	250 VAC	2	8.08 mm	0.318 "	3 A	Mounting Brackets	Stamped	1 (DE E)	Black	Gold	Receptacle Female Sockets	Housing/Shell (4-40)	Solder	D-Type - Stacked	Through Hole Right Angle	85 °C	-55 °C	Flash
Adam Tech DPD-09-00-B3	UL94 V-0	Polybutylene Terephthalate (PBT)	Copper Alloy	Nickel Plated Steel	9	250 VAC	2	8.08 mm	0.318 "	3 A	Board Lock Mounting Brackets	Stamped	1 (DE E)	Black	Gold	Receptacle Female Sockets	Housing/Shell (4-40)	Solder	D-Type - Stacked	Through Hole Right Angle	85 °C	-55 °C
Adam Tech DPD-09-01-B3	UL94 V-0	Polybutylene Terephthalate (PBT)	Copper Alloy	Nickel Plated Steel	9	250 VAC	2	8.08 mm	0.318 "	3 A	Board Lock Grounding Indents Mounting Brackets	Stamped	1 (DE E)	Black	Gold	Plug Male Pins Receptacle Female Sockets	4-40	Solder	D-Sub - Stacked	Through Hole Right Angle	85 °C	-55 °C		0.127 µm	5 µin	Signal
Adam Tech DPD-09-11-B3	UL94 V-0	Polybutylene Terephthalate (PBT)	Copper Alloy	Nickel Plated Steel	9	250 VAC	2	8.08 mm	0.318 "	3 A	Board Lock Grounding Indents Mounting Brackets	Stamped	1 (DE E)	Black	Gold	Male Pins Plug	Housing/Shell (4-40)	Solder	D-Type - Stacked	Through Hole Right Angle	85 °C	-55 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Arrow	N/A	1	$ 1.35
Digikey	Tray	1	$ 4.91
		10	$ 3.75
		25	$ 3.38
		40	$ 3.21
		80	$ 2.98
		230	$ 2.66
		440	$ 2.49
		945	$ 2.30
		2400	$ 2.11
