L717SDBH25P

Active

Amphenol ICC (Commercial Products)

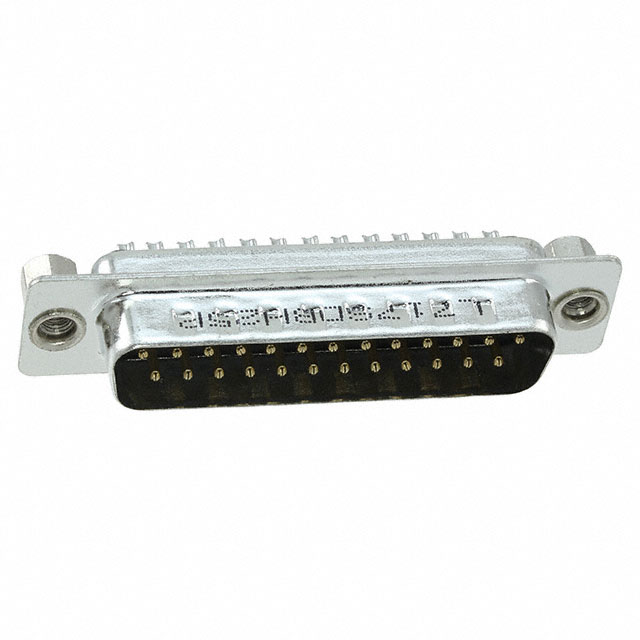

CONN D-SUB PLUG 25POS SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

L717SDBH25P

Active

Amphenol ICC (Commercial Products)

CONN D-SUB PLUG 25POS SLDR CUP

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	L717SDBH25P

Color	Black
Connector Style	D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Form	Stamped
Contact Material	Brass
Contact Type	Signal
Current Rating (Amps)	3 A
Dielectric Material	Thermoplastic, Glass Filled
Features	Grounding Indents
Flange Feature	Cable Side
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout [custom]	DB, B
Shell Size, Connector Layout [custom]	3
Voltage Rating	250 VDC
Wire Gauge	20 AWG

L717SDBH25 Series

Part	Voltage Rating	Features	Contact Material	Contact Form	Dielectric Material	Operating Temperature [Min]	Operating Temperature [Max]	Flange Feature	Material Flammability Rating	Contact Type	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Contact Finish Thickness	Contact Finish Thickness	Number of Rows	Connector Style	Current Rating (Amps)	Termination	Mounting Type	Connector Type	Contact Finish	Color	Contact Finish Thickness	Wire Gauge
Amphenol ICC (Commercial Products) L717SDBH25POL2RM5GC309	250 VDC	Board Lock Grounding Indents	Brass	Stamped	Thermoplastic Glass Filled	-55 °C	125 °C	4-40 Board Side	UL94 V-0	Signal	B DB	3	0.76 Ám	30 Áin	2	D-Sub	3 A	Solder	Through Hole	Male Pins Plug	Gold	Black
Amphenol ICC (Commercial Products) L717SDBH25POL2G	250 VDC	Grounding Indents	Brass	Stamped	Thermoplastic Glass Filled	-55 °C	125 °C	4-40 Board Side	UL94 V-0	Signal	B DB	3			2	D-Sub	3 A	Solder	Through Hole	Male Pins Plug	Gold	Black	Flash
Amphenol ICC (Commercial Products) L717SDBH25POL2RM8C309	250 VDC	Board Lock Grounding Indents	Brass	Stamped	Thermoplastic Glass Filled	-55 °C	125 °C	Board Side (4-40) Mating Side Female Screwlock (4-40)	UL94 V-0	Signal	B DB	3	0.76 Ąm	30 Ąin	2	D-Sub	3 A	Solder	Through Hole	Male Pins Plug	Gold	Black
Amphenol ICC (Commercial Products) L717SDBH25PVF	250 VDC	Grounding Indents	Brass	Stamped	Thermoplastic Glass Filled	-55 °C	105 ░C	Cable Side (4-40) Mating Side Female Screwlock (4-40)	UL94 V-0	Signal	B DB	3			2	D-Sub	3 A		Free Hanging (In-Line)	Male Pins Plug	Gold	Black	Flash	20 AWG
Amphenol ICC (Commercial Products) L717SDBH25POL2RM5G	250 VDC	Board Lock Grounding Indents	Brass	Stamped	Thermoplastic Glass Filled	-55 °C	125 °C	4-40 Board Side	UL94 V-0	Signal	B DB	3			2	D-Sub	3 A	Solder	Through Hole	Male Pins Plug	Gold	Black	Flash
Amphenol ICC (Commercial Products) L717SDBH25POL2RM8	250 VDC	Board Lock Grounding Indents	Brass	Stamped	Thermoplastic Glass Filled	-55 °C	125 °C	Board Side (4-40) Mating Side Female Screwlock (4-40)	UL94 V-0	Signal	B DB	3			2	D-Sub	3 A	Solder	Through Hole	Male Pins Plug	Gold	Black	Flash
Amphenol ICC (Commercial Products) L717SDBH25POL2RM5MT	250 VDC	Board Lock Grounding Indents	Brass	Stamped	Thermoplastic Glass Filled	-55 °C	125 °C	4-40 Board Side	UL94 V-0	Signal	B DB	3			2	D-Sub	3 A	Solder	Through Hole	Male Pins Plug	Gold	Black	Flash
Amphenol ICC (Commercial Products) L717SDBH25POL2GC309	250 VDC	Grounding Indents	Brass	Stamped	Thermoplastic Glass Filled	-55 °C	125 °C	4-40 Board Side	UL94 V-0	Signal	B DB	3	0.76 Ám	30 Áin	2	D-Sub	3 A	Solder	Through Hole	Male Pins Plug	Gold	Black
Amphenol ICC (Commercial Products) L717SDBH25P	250 VDC	Grounding Indents	Brass	Stamped	Thermoplastic Glass Filled	-55 °C	105 ░C	Cable Side	UL94 V-0	Signal	B DB	3			2	D-Sub	3 A		Free Hanging (In-Line)	Male Pins Plug	Gold	Black	Flash	20 AWG
Amphenol ICC (Commercial Products) L717SDBH25PC309	250 VDC	Grounding Indents	Brass	Stamped	Thermoplastic Glass Filled	-55 °C	105 ░C	Cable Side	UL94 V-0	Signal	B DB	3	0.76 Ám	30 Áin	2	D-Sub	3 A		Free Hanging (In-Line)	Male Pins Plug	Gold	Black		20 AWG

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 1.09
		10	$ 0.95
		25	$ 0.91
		50	$ 0.89
		100	$ 0.84
		250	$ 0.76
		450	$ 0.71

Description

General part information

L717SDBH25 Series

25 Position D-Sub Plug, Male Pins Connector
