L717SDBH25POL2RM8C309
ActiveAmphenol ICC (Commercial Products)

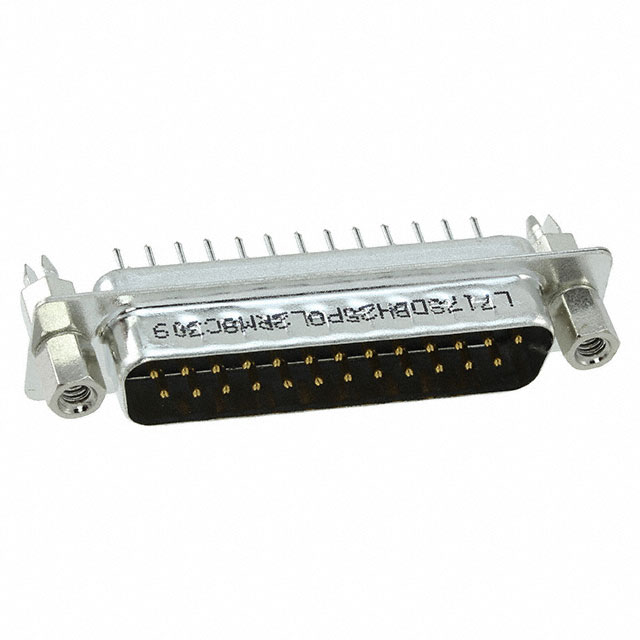

CONN D-SUB PLUG 25POS VERT SLDR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
L717SDBH25POL2RM8C309
ActiveAmphenol ICC (Commercial Products)
CONN D-SUB PLUG 25POS VERT SLDR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | L717SDBH25POL2RM8C309 |
|---|---|
| Color | Black |
| Connector Style | D-Sub |
| Connector Type | Plug, Male Pins |
| Contact Finish | Gold |
| Contact Finish Thickness | 30 Ąin |
| Contact Finish Thickness | 0.76 Ąm |
| Contact Form | Stamped |
| Contact Material | Brass |
| Contact Type | Signal |
| Current Rating (Amps) | 3 A |
| Dielectric Material | Thermoplastic, Glass Filled |
| Features | Grounding Indents, Board Lock |
| Flange Feature | Board Side (4-40), Mating Side, Female Screwlock (4-40) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Shell Size, Connector Layout [custom] | DB, B |
| Shell Size, Connector Layout [custom] | 3 |
| Termination | Solder |
| Voltage Rating | 250 VDC |
L717SDBH25 Series
| Part | Voltage Rating | Features | Contact Material | Contact Form | Dielectric Material | Operating Temperature [Min] | Operating Temperature [Max] | Flange Feature | Material Flammability Rating | Contact Type | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Contact Finish Thickness | Contact Finish Thickness | Number of Rows | Connector Style | Current Rating (Amps) | Termination | Mounting Type | Connector Type | Contact Finish | Color | Contact Finish Thickness | Wire Gauge |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol ICC (Commercial Products) | 250 VDC | Board Lock Grounding Indents | Brass | Stamped | Thermoplastic Glass Filled | -55 °C | 125 °C | 4-40 Board Side | UL94 V-0 | Signal | B DB | 3 | 0.76 Ám | 30 Áin | 2 | D-Sub | 3 A | Solder | Through Hole | Male Pins Plug | Gold | Black | ||
Amphenol ICC (Commercial Products) | 250 VDC | Grounding Indents | Brass | Stamped | Thermoplastic Glass Filled | -55 °C | 125 °C | 4-40 Board Side | UL94 V-0 | Signal | B DB | 3 | 2 | D-Sub | 3 A | Solder | Through Hole | Male Pins Plug | Gold | Black | Flash | |||
Amphenol ICC (Commercial Products) | 250 VDC | Board Lock Grounding Indents | Brass | Stamped | Thermoplastic Glass Filled | -55 °C | 125 °C | Board Side (4-40) Mating Side Female Screwlock (4-40) | UL94 V-0 | Signal | B DB | 3 | 0.76 Ąm | 30 Ąin | 2 | D-Sub | 3 A | Solder | Through Hole | Male Pins Plug | Gold | Black | ||
Amphenol ICC (Commercial Products) | 250 VDC | Grounding Indents | Brass | Stamped | Thermoplastic Glass Filled | -55 °C | 105 ░C | Cable Side (4-40) Mating Side Female Screwlock (4-40) | UL94 V-0 | Signal | B DB | 3 | 2 | D-Sub | 3 A | Free Hanging (In-Line) | Male Pins Plug | Gold | Black | Flash | 20 AWG | |||
Amphenol ICC (Commercial Products) | 250 VDC | Board Lock Grounding Indents | Brass | Stamped | Thermoplastic Glass Filled | -55 °C | 125 °C | 4-40 Board Side | UL94 V-0 | Signal | B DB | 3 | 2 | D-Sub | 3 A | Solder | Through Hole | Male Pins Plug | Gold | Black | Flash | |||
Amphenol ICC (Commercial Products) | 250 VDC | Board Lock Grounding Indents | Brass | Stamped | Thermoplastic Glass Filled | -55 °C | 125 °C | Board Side (4-40) Mating Side Female Screwlock (4-40) | UL94 V-0 | Signal | B DB | 3 | 2 | D-Sub | 3 A | Solder | Through Hole | Male Pins Plug | Gold | Black | Flash | |||
Amphenol ICC (Commercial Products) | 250 VDC | Board Lock Grounding Indents | Brass | Stamped | Thermoplastic Glass Filled | -55 °C | 125 °C | 4-40 Board Side | UL94 V-0 | Signal | B DB | 3 | 2 | D-Sub | 3 A | Solder | Through Hole | Male Pins Plug | Gold | Black | Flash | |||
Amphenol ICC (Commercial Products) | 250 VDC | Grounding Indents | Brass | Stamped | Thermoplastic Glass Filled | -55 °C | 125 °C | 4-40 Board Side | UL94 V-0 | Signal | B DB | 3 | 0.76 Ám | 30 Áin | 2 | D-Sub | 3 A | Solder | Through Hole | Male Pins Plug | Gold | Black | ||
Amphenol ICC (Commercial Products) | 250 VDC | Grounding Indents | Brass | Stamped | Thermoplastic Glass Filled | -55 °C | 105 ░C | Cable Side | UL94 V-0 | Signal | B DB | 3 | 2 | D-Sub | 3 A | Free Hanging (In-Line) | Male Pins Plug | Gold | Black | Flash | 20 AWG | |||
Amphenol ICC (Commercial Products) | 250 VDC | Grounding Indents | Brass | Stamped | Thermoplastic Glass Filled | -55 °C | 105 ░C | Cable Side | UL94 V-0 | Signal | B DB | 3 | 0.76 Ám | 30 Áin | 2 | D-Sub | 3 A | Free Hanging (In-Line) | Male Pins Plug | Gold | Black | 20 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 2.94 | |
| 10 | $ 2.67 | |||
| 25 | $ 2.53 | |||
| 50 | $ 2.47 | |||
| 100 | $ 2.35 | |||
| 250 | $ 2.07 | |||
Description
General part information
L717SDBH25 Series
25 Position D-Sub Plug, Male Pins Connector
