823-22-048-10-004101

Active

Mill-Max Manufacturing Corp.

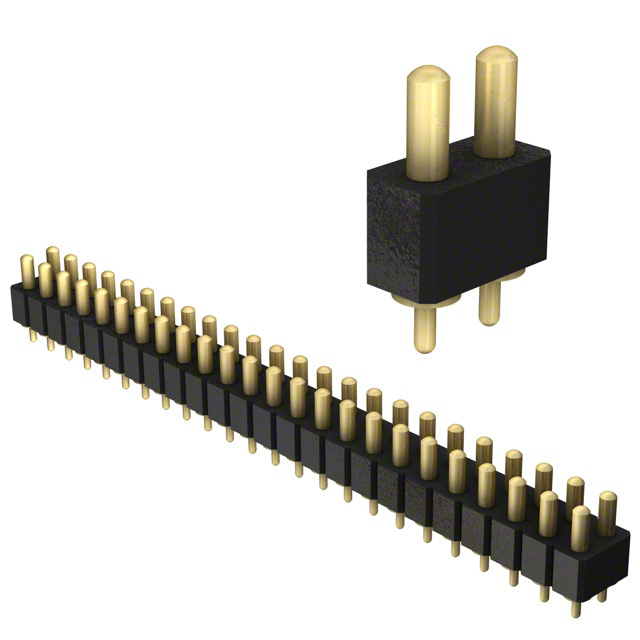

CONN SPRING PISTON 48POS PCB

Search across all available documentation for this part.

Active

Mill-Max Manufacturing Corp.

CONN SPRING PISTON 48POS PCB

Technical Specifications

Parameters and characteristics for this part

...

Part	Number of Contacts	Pitch [x]	Pitch [x]	Mounting Type	Connector Type	Row Spacing [x]	Row Spacing	Number of Rows	Material	Contact Finish Thickness	Contact Finish Thickness	Contact Finish
Mill-Max Manufacturing Corp. 823-22-048-10-004101	48	2.54 mm	0.1 in	Through Hole	Piston	0.1 in	2.54 mm	2	Copper Alloy	0.51 µm	20 µin	Gold
Mill-Max Manufacturing Corp. 823-22-014-10-003101	14	2.54 mm	0.1 in	Through Hole	Piston	0.1 in	2.54 mm	2	Copper Alloy	0.51 µm	20 µin	Gold
Mill-Max Manufacturing Corp. 823-22-070-10-004101	70	2.54 mm	0.1 in	Through Hole	Piston	0.1 in	2.54 mm	2	Copper Alloy	0.51 µm	20 µin	Gold
Mill-Max Manufacturing Corp. 823-22-008-10-002101	8	2.54 mm	0.1 in	Through Hole	Piston	0.1 in	2.54 mm	2	Copper Alloy	0.51 µm	20 µin	Gold
Mill-Max Manufacturing Corp. 823-22-052-10-000101	52	2.54 mm	0.1 in	Through Hole	Piston	0.1 in	2.54 mm	2	Copper Alloy	0.51 µm	20 µin	Gold
Mill-Max Manufacturing Corp. 823-22-070-10-001101	70	2.54 mm	0.1 in	Through Hole	Piston	0.1 in	2.54 mm	2	Copper Alloy	0.51 µm	20 µin	Gold
Mill-Max Manufacturing Corp. 823-22-032-10-000101	32	2.54 mm	0.1 in	Through Hole	Piston	0.1 in	2.54 mm	2	Copper Alloy	0.51 µm	20 µin	Gold
Mill-Max Manufacturing Corp. 823-22-050-10-004101	50	2.54 mm	0.1 in	Through Hole	Piston	0.1 in	2.54 mm	2	Copper Alloy	0.51 µm	20 µin	Gold
Mill-Max Manufacturing Corp. 823-22-036-10-002101	36	2.54 mm	0.1 in	Through Hole	Piston	0.1 in	2.54 mm	2	Copper Alloy	0.51 µm	20 µin	Gold
Mill-Max Manufacturing Corp. 823-22-032-10-004101	32	2.54 mm	0.1 in	Through Hole	Piston	0.1 in	2.54 mm	2	Copper Alloy	0.51 µm	20 µin	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

48 Position Spring Piston Connector Through Hole
