823-22-008-10-002101

Active

Mill-Max Manufacturing Corp.

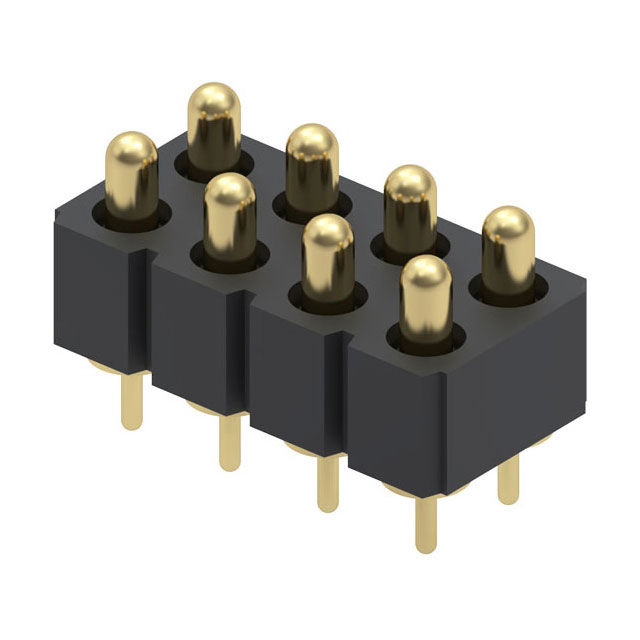

CONN SPRING PISTON 8POS PCB

Search across all available documentation for this part.

Active

Mill-Max Manufacturing Corp.

CONN SPRING PISTON 8POS PCB

Technical Specifications

Parameters and characteristics for this part

...

Part	Number of Contacts	Pitch [x]	Pitch [x]	Mounting Type	Connector Type	Row Spacing [x]	Row Spacing	Number of Rows	Material	Contact Finish Thickness	Contact Finish Thickness	Contact Finish
Mill-Max Manufacturing Corp. 823-22-048-10-004101	48	2.54 mm	0.1 in	Through Hole	Piston	0.1 in	2.54 mm	2	Copper Alloy	0.51 µm	20 µin	Gold
Mill-Max Manufacturing Corp. 823-22-014-10-003101	14	2.54 mm	0.1 in	Through Hole	Piston	0.1 in	2.54 mm	2	Copper Alloy	0.51 µm	20 µin	Gold
Mill-Max Manufacturing Corp. 823-22-070-10-004101	70	2.54 mm	0.1 in	Through Hole	Piston	0.1 in	2.54 mm	2	Copper Alloy	0.51 µm	20 µin	Gold
Mill-Max Manufacturing Corp. 823-22-008-10-002101	8	2.54 mm	0.1 in	Through Hole	Piston	0.1 in	2.54 mm	2	Copper Alloy	0.51 µm	20 µin	Gold
Mill-Max Manufacturing Corp. 823-22-052-10-000101	52	2.54 mm	0.1 in	Through Hole	Piston	0.1 in	2.54 mm	2	Copper Alloy	0.51 µm	20 µin	Gold
Mill-Max Manufacturing Corp. 823-22-070-10-001101	70	2.54 mm	0.1 in	Through Hole	Piston	0.1 in	2.54 mm	2	Copper Alloy	0.51 µm	20 µin	Gold
Mill-Max Manufacturing Corp. 823-22-032-10-000101	32	2.54 mm	0.1 in	Through Hole	Piston	0.1 in	2.54 mm	2	Copper Alloy	0.51 µm	20 µin	Gold
Mill-Max Manufacturing Corp. 823-22-050-10-004101	50	2.54 mm	0.1 in	Through Hole	Piston	0.1 in	2.54 mm	2	Copper Alloy	0.51 µm	20 µin	Gold
Mill-Max Manufacturing Corp. 823-22-036-10-002101	36	2.54 mm	0.1 in	Through Hole	Piston	0.1 in	2.54 mm	2	Copper Alloy	0.51 µm	20 µin	Gold
Mill-Max Manufacturing Corp. 823-22-032-10-004101	32	2.54 mm	0.1 in	Through Hole	Piston	0.1 in	2.54 mm	2	Copper Alloy	0.51 µm	20 µin	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

8 Position Spring Piston Connector Through Hole
