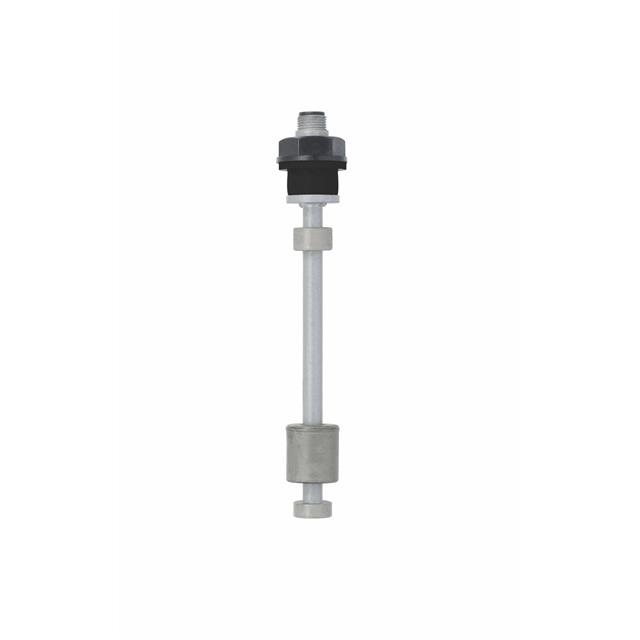

RSF166A25B175P

Active

Sensata Technologies

SENSOR LEVEL SWITCH SINGLE FLOAT

Deep-Dive with AI

Search across all available documentation for this part.

RSF166A25B175P

Active

Sensata Technologies

SENSOR LEVEL SWITCH SINGLE FLOAT

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RSF166A25B175P

Current	600 mA
Material - Housing & Prism	Polyphenylene Sulphide (PPS)
Minimum Liquid Specific Gravity [Min]	0.85
Mounting Type	M16x2 Thread, Panel Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-10 °C
Output Configuration	SPST-NC/NO
Output Type	Switch (2) (Single Float)
Switch Actuation Level	1.181 ", 6.89 in
Type	Liquid
Voltage Rating	120 VDC, 240 VAC

RSF166 Series

Part	Mounting Type	Material - Housing & Prism	Operating Temperature [Min]	Operating Temperature [Max]	Output Type	Current	Minimum Liquid Specific Gravity [Min]	Voltage Rating	Output Configuration	Switch Actuation Level	Type	Switch Actuation Level	Switch Actuation Level
Sensata Technologies RSF166B50B150P	M16x2 Thread Panel Mount	Polyphenylene Sulphide (PPS)	-10 °C	85 °C	Switch (2) (Dual Float)	600 mA	0.85	120 VDC 240 VAC	SPST-NC/NO	1.969 " 5.906 in 50 mm 150 mm	Liquid
Sensata Technologies RSF166A25B125	M16x2 Thread Panel Mount	Polyphenylene Sulphide (PPS)	-10 °C	85 °C	Switch (2) (Single Float)	600 mA	0.85	120 VDC 240 VAC	SPST-NC/NO	1.181 " 4.921 in	Liquid	30 mm 125 mm
Sensata Technologies RSF166B50B150	M16x2 Thread Panel Mount	Polyphenylene Sulphide (PPS)	-10 °C	85 °C	Switch (2) (Dual Float)	600 mA	0.85	120 VDC 240 VAC	SPST-NC/NO	1.969 " 5.906 in 50 mm 150 mm	Liquid
Sensata Technologies RSF166A25B150P	M16x2 Thread Panel Mount	Polyphenylene Sulphide (PPS)	-10 °C	85 °C	Switch (2) (Single Float)	600 mA	0.85	120 VDC 240 VAC	SPST-NC/NO	30 mm	Liquid	1.181 in 5.906 in	150 mm
Sensata Technologies RSF166A50A100P	M16x2 Thread Panel Mount	Polyphenylene Sulphide (PPS)	-10 °C	85 °C	Switch (2) (Dual Float)	600 mA	0.85	120 VDC 240 VAC	SPST-NC/NO	1.969 " 5.906 in 50 mm 150 mm	Liquid
Sensata Technologies RSF166A50A150	M16x2 Thread Panel Mount	Polyphenylene Sulphide (PPS)	-10 °C	85 °C	Switch (2) (Dual Float)	600 mA	0.85	120 VDC 240 VAC	SPST-NC/NO	1.969 " 5.906 in 50 mm 150 mm	Liquid
Sensata Technologies RSF166A50A150P	M16x2 Thread Panel Mount	Polyphenylene Sulphide (PPS)	-10 °C	85 °C	Switch (2) (Dual Float)	600 mA	0.85	120 VDC 240 VAC	SPST-NC/NO	1.969 " 5.906 in 50 mm 150 mm	Liquid
Sensata Technologies RSF166A25B100	M16x2 Thread Panel Mount	Polyphenylene Sulphide (PPS)	-10 °C	85 °C	Switch (2) (Single Float)	600 mA	0.85	120 VDC 240 VAC	SPST-NC/NO	30 mm 100 mm	Liquid	1.181 in 3.937 in
Sensata Technologies RSF166A25B125P	M16x2 Thread Panel Mount	Polyphenylene Sulphide (PPS)	-10 °C	85 °C	Switch (2) (Single Float)	600 mA	0.85	120 VDC 240 VAC	SPST-NC/NO	1.181 " 4.921 in	Liquid	30 mm 125 mm
Sensata Technologies RSF166A25B175P	M16x2 Thread Panel Mount	Polyphenylene Sulphide (PPS)	-10 °C	85 °C	Switch (2) (Single Float)	600 mA	0.85	120 VDC 240 VAC	SPST-NC/NO	1.181 " 6.89 in	Liquid

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 62.37
		10	$ 59.40
		50	$ 56.70
		100	$ 55.04

Description

General part information

RSF166 Series

Liquid Level Sensor Switch (2) (Single Float) SPST-NC/NO Output Panel Mount, M16x2 Thread

Documents

Technical documentation and resources

No documents available
