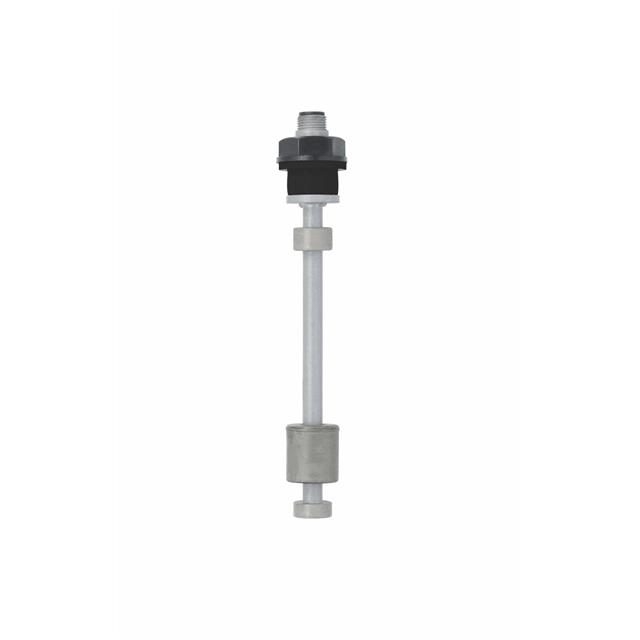

RSF166A25B125P

Active

Sensata Technologies

SENSOR LEVEL SWITCH SINGLE FLOAT

Deep-Dive with AI

Search across all available documentation for this part.

RSF166A25B125P

Active

Sensata Technologies

SENSOR LEVEL SWITCH SINGLE FLOAT

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RSF166A25B125P

Current	600 mA
Material - Housing & Prism	Polyphenylene Sulphide (PPS)
Minimum Liquid Specific Gravity [Min]	0.85
Mounting Type	M16x2 Thread, Panel Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-10 °C
Output Configuration	SPST-NC/NO
Output Type	Switch (2) (Single Float)
Switch Actuation Level	1.181 ", 4.921 in
Switch Actuation Level	125 mm, 30 mm
Type	Liquid
Voltage Rating	120 VDC, 240 VAC

RSF166 Series

Part	Mounting Type	Material - Housing & Prism	Operating Temperature [Min]	Operating Temperature [Max]	Output Type	Current	Minimum Liquid Specific Gravity [Min]	Voltage Rating	Output Configuration	Switch Actuation Level	Type	Switch Actuation Level	Switch Actuation Level
Sensata Technologies RSF166B50B150P	M16x2 Thread Panel Mount	Polyphenylene Sulphide (PPS)	-10 °C	85 °C	Switch (2) (Dual Float)	600 mA	0.85	120 VDC 240 VAC	SPST-NC/NO	1.969 " 5.906 in 50 mm 150 mm	Liquid
Sensata Technologies RSF166A25B125	M16x2 Thread Panel Mount	Polyphenylene Sulphide (PPS)	-10 °C	85 °C	Switch (2) (Single Float)	600 mA	0.85	120 VDC 240 VAC	SPST-NC/NO	1.181 " 4.921 in	Liquid	30 mm 125 mm
Sensata Technologies RSF166B50B150	M16x2 Thread Panel Mount	Polyphenylene Sulphide (PPS)	-10 °C	85 °C	Switch (2) (Dual Float)	600 mA	0.85	120 VDC 240 VAC	SPST-NC/NO	1.969 " 5.906 in 50 mm 150 mm	Liquid
Sensata Technologies RSF166A25B150P	M16x2 Thread Panel Mount	Polyphenylene Sulphide (PPS)	-10 °C	85 °C	Switch (2) (Single Float)	600 mA	0.85	120 VDC 240 VAC	SPST-NC/NO	30 mm	Liquid	1.181 in 5.906 in	150 mm
Sensata Technologies RSF166A50A100P	M16x2 Thread Panel Mount	Polyphenylene Sulphide (PPS)	-10 °C	85 °C	Switch (2) (Dual Float)	600 mA	0.85	120 VDC 240 VAC	SPST-NC/NO	1.969 " 5.906 in 50 mm 150 mm	Liquid
Sensata Technologies RSF166A50A150	M16x2 Thread Panel Mount	Polyphenylene Sulphide (PPS)	-10 °C	85 °C	Switch (2) (Dual Float)	600 mA	0.85	120 VDC 240 VAC	SPST-NC/NO	1.969 " 5.906 in 50 mm 150 mm	Liquid
Sensata Technologies RSF166A50A150P	M16x2 Thread Panel Mount	Polyphenylene Sulphide (PPS)	-10 °C	85 °C	Switch (2) (Dual Float)	600 mA	0.85	120 VDC 240 VAC	SPST-NC/NO	1.969 " 5.906 in 50 mm 150 mm	Liquid
Sensata Technologies RSF166A25B100	M16x2 Thread Panel Mount	Polyphenylene Sulphide (PPS)	-10 °C	85 °C	Switch (2) (Single Float)	600 mA	0.85	120 VDC 240 VAC	SPST-NC/NO	30 mm 100 mm	Liquid	1.181 in 3.937 in
Sensata Technologies RSF166A25B125P	M16x2 Thread Panel Mount	Polyphenylene Sulphide (PPS)	-10 °C	85 °C	Switch (2) (Single Float)	600 mA	0.85	120 VDC 240 VAC	SPST-NC/NO	1.181 " 4.921 in	Liquid	30 mm 125 mm
Sensata Technologies RSF166A25B175P	M16x2 Thread Panel Mount	Polyphenylene Sulphide (PPS)	-10 °C	85 °C	Switch (2) (Single Float)	600 mA	0.85	120 VDC 240 VAC	SPST-NC/NO	1.181 " 6.89 in	Liquid

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	5	$ 62.37

Description

General part information

RSF166 Series

Liquid Level Sensor Switch (2) (Single Float) SPST-NC/NO Output Panel Mount, M16x2 Thread
