TPS56837RPAR
ActiveTexas Instruments
4.5-V TO 28-V INPUT, 8-A SYNCHRONOUS BUCK CONVERTER
Deep-Dive with AI
Search across all available documentation for this part.
TPS56837RPAR
ActiveTexas Instruments
4.5-V TO 28-V INPUT, 8-A SYNCHRONOUS BUCK CONVERTER
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | TPS56837RPAR | TPS56837 Series |
|---|---|---|
| Current - Output | 8 A | 8 A |
| Frequency - Switching | 800 kHz, 1.2 MHz, 500 kHz | 1.2 - 800 kHz |
| Function | Step-Down | Step-Down |
| Mounting Type | Surface Mount | Surface Mount |
| Number of Outputs | 1 | 1 |
| Operating Temperature [Max] | 150 C | 150 C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Output Configuration | Positive | Positive |
| Output Type | Adjustable | Adjustable |

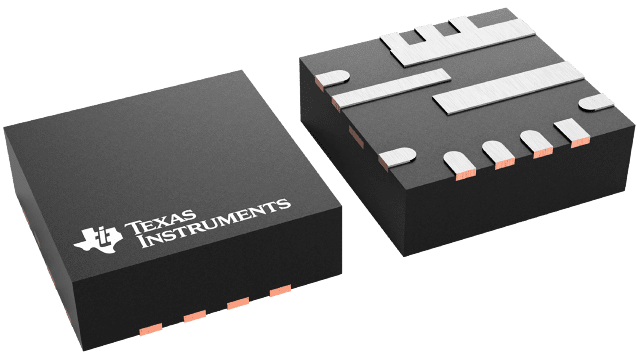

| Package / Case | 10-PowerVFQFN | 10-PowerVFQFN |
| Supplier Device Package | 10-VQFN-HR (3x3) | 10-VQFN-HR (3x3) |
| Synchronous Rectifier | True | True |
| Topology | Buck | Buck |
| Voltage - Input (Max) [Max] | 28 V | 28 V |
| Voltage - Input (Min) [Min] | 4.5 V | 4.5 V |
| Voltage - Output (Max) [Max] | 13 V | 13 - 22 V |
| Voltage - Output (Min/Fixed) | 13 V | 4 - 13 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
TPS56837 Series
4.5V to 28V input, 8A synchronous buck converter with output voltage range supporting USB-C
| Part | Current - Output | Topology | Output Type | Frequency - Switching | Voltage - Input (Max) [Max] | Mounting Type | Voltage - Output (Max) [Max] | Function | Number of Outputs | Supplier Device Package | Synchronous Rectifier | Operating Temperature [Max] | Operating Temperature [Min] | Package / Case | Voltage - Output (Min/Fixed) | Output Configuration | Voltage - Input (Min) [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Texas Instruments TPS56837HRPARThe TPS56837H and TPS56837HA are high-efficiency, easy-to-use, synchronous buck converters with wide input voltage range of 4.5V to 28V. The devices support up to 8A continuous output current at output voltages between 4V and 22V, and support 5V, 9V, 15V, 20V dynamic output change for USB Power Delivery (USB PD) application.
The TPS56837H and TPS56837HA use D-CAP3 control mode to provide fast transient response, good line and load regulation, no requirement for external compensation, and support low equivalent series resistance (ESR) output capacitors like MLCC.
The TPS56837H and TPS56837HA operate at Eco-mode to attain high efficiency at light load with fixed 500kHz switching frequency and three selectable current limit through MODE pin configuration. The TPS56837H and TPS56837HA have adjustable soft-start time by the SS pin capacitor configuration.
The TPS56837H and TPS56837HA provide complete non-latched OV, UV, OC, OT, and UVLO protections combined with power-good indicator features. TPS56837H supports output discharge function and TPS56837HA disables the function.
The TPS56837H and TPS56837HA are available in a 10-pin, 3.0mm × 3.0mm, HotRod QFN package, and the junction temperature is specified from –40°C to 150°C.
The TPS56837H and TPS56837HA are high-efficiency, easy-to-use, synchronous buck converters with wide input voltage range of 4.5V to 28V. The devices support up to 8A continuous output current at output voltages between 4V and 22V, and support 5V, 9V, 15V, 20V dynamic output change for USB Power Delivery (USB PD) application.
The TPS56837H and TPS56837HA use D-CAP3 control mode to provide fast transient response, good line and load regulation, no requirement for external compensation, and support low equivalent series resistance (ESR) output capacitors like MLCC.
The TPS56837H and TPS56837HA operate at Eco-mode to attain high efficiency at light load with fixed 500kHz switching frequency and three selectable current limit through MODE pin configuration. The TPS56837H and TPS56837HA have adjustable soft-start time by the SS pin capacitor configuration.
The TPS56837H and TPS56837HA provide complete non-latched OV, UV, OC, OT, and UVLO protections combined with power-good indicator features. TPS56837H supports output discharge function and TPS56837HA disables the function.
The TPS56837H and TPS56837HA are available in a 10-pin, 3.0mm × 3.0mm, HotRod QFN package, and the junction temperature is specified from –40°C to 150°C. | 8 A | Buck | Adjustable | 500 kHz | 28 V | Surface Mount | 22 V | Step-Down | 1 | 10-VQFN-HR (3x3) | 150 C | -40 °C | 10-PowerVFQFN | 4 V | Positive | 4.5 V | |
Texas Instruments TPS56837RPARThe TPS5683x is a high-efficiency, easy-to-use, synchronous buck converter with a wide input voltage range of 4.5V to 28V. The device supports up to 8A continuous output current at output voltages between 0.6V and 13V.
The TPS5683x uses D-CAP3 control mode to provide fast transient response, good line and load regulation, no requirement for external compensation, and supports low equivalent series resistance (ESR) output capacitors like MLCC.
The TPS56837 operates at Eco-mode to attain high efficiency at light load. The TPS56838 operates in forced continuous conduction mode which maintains lower output ripple during all load conditions. The TPS56836 operates in Out-of-Audio mode to avoid audible noise.
The TPS5683x has three selectable switching frequencies, 500kHz, 800kHz, and 1200kHz, and selectable current limit through MODE pin configuration. The TPS5683x has adjustable soft-start time by connecting the SS capacitor and with default 1.8ms with the SS pin floating.
The TPS5683x provides complete non-latched OV (overvoltage), UV (undervoltage), OC (overcurrent), OT (overtemperature) and UVLO (undervoltage lockout) protections combined with power-good indicator and output discharge function features.
The TPS5683x is available in a 10-pin, 3.0mm × 3.0mm, HotRod QFN package, and the junction temperature is specified from –40°C to 150°C.
The TPS5683x is a high-efficiency, easy-to-use, synchronous buck converter with a wide input voltage range of 4.5V to 28V. The device supports up to 8A continuous output current at output voltages between 0.6V and 13V.
The TPS5683x uses D-CAP3 control mode to provide fast transient response, good line and load regulation, no requirement for external compensation, and supports low equivalent series resistance (ESR) output capacitors like MLCC.
The TPS56837 operates at Eco-mode to attain high efficiency at light load. The TPS56838 operates in forced continuous conduction mode which maintains lower output ripple during all load conditions. The TPS56836 operates in Out-of-Audio mode to avoid audible noise.
The TPS5683x has three selectable switching frequencies, 500kHz, 800kHz, and 1200kHz, and selectable current limit through MODE pin configuration. The TPS5683x has adjustable soft-start time by connecting the SS capacitor and with default 1.8ms with the SS pin floating.
The TPS5683x provides complete non-latched OV (overvoltage), UV (undervoltage), OC (overcurrent), OT (overtemperature) and UVLO (undervoltage lockout) protections combined with power-good indicator and output discharge function features.
The TPS5683x is available in a 10-pin, 3.0mm × 3.0mm, HotRod QFN package, and the junction temperature is specified from –40°C to 150°C. | 8 A | Buck | Adjustable | 1.2 MHz, 500 kHz, 800 kHz | 28 V | Surface Mount | 13 V | Step-Down | 1 | 10-VQFN-HR (3x3) | 150 C | -40 °C | 10-PowerVFQFN | 13 V | Positive | 4.5 V |
Description
General part information
TPS56837 Series
The TPS56837H and TPS56837HA are high-efficiency, easy-to-use, synchronous buck converters with wide input voltage range of 4.5V to 28V. The devices support up to 8A continuous output current at output voltages between 4V and 22V, and support 5V, 9V, 15V, 20V dynamic output change for USB Power Delivery (USB PD) application.
The TPS56837H and TPS56837HA use D-CAP3 control mode to provide fast transient response, good line and load regulation, no requirement for external compensation, and support low equivalent series resistance (ESR) output capacitors like MLCC.
The TPS56837H and TPS56837HA operate at Eco-mode to attain high efficiency at light load with fixed 500kHz switching frequency and three selectable current limit through MODE pin configuration. The TPS56837H and TPS56837HA have adjustable soft-start time by the SS pin capacitor configuration.
