MX77A024HF1

Active

JAE Electronics

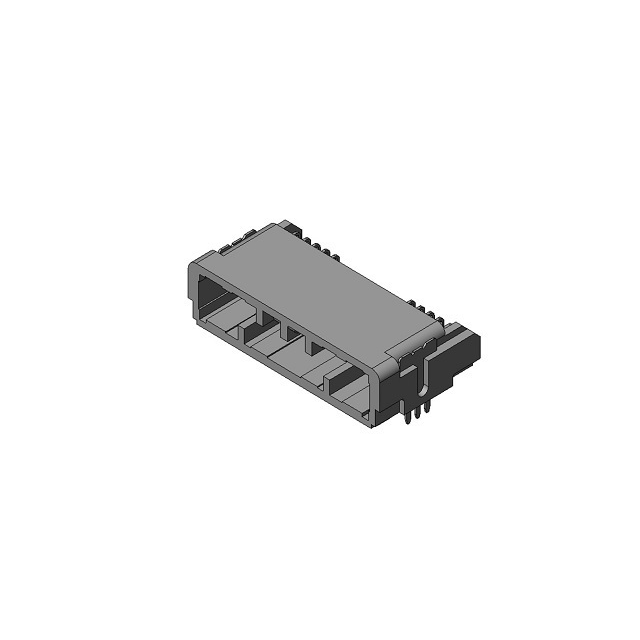

CONN PIN HDR 24 POS R/A SMT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MX77A024HF1

Active

JAE Electronics

CONN PIN HDR 24 POS R/A SMT

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MX77A024HF1

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Mating	6.1 mm
Contact Length - Mating [x]	0.24 in
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Locking Ramp
Features	Solder Retention
Insulation Color	Black
Insulation Height [z]	9.7 mm
Insulation Height [z]	0.382 in
Insulation Material	Polyphenylene Sulfide (PPS), Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount, Right Angle
Number of Positions	24
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Row Spacing - Mating	0.116 in
Row Spacing - Mating	2.95 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder

MX77A Series

Part	Mounting Type	Number of Positions Loaded	Style	Contact Shape	Shrouding	Operating Temperature [Max]	Operating Temperature [Min]	Features	Fastening Type	Contact Material	Contact Type	Connector Type	Number of Rows	Insulation Material	Contact Finish - Post	Current Rating (Amps)	Number of Positions	Insulation Height [z]	Insulation Height [z]	Insulation Color	Contact Length - Mating	Contact Length - Mating [x]	Termination	Contact Termination	Color	Note	Row Spacing - Mating	Row Spacing - Mating	Material Flammability Rating
JAE Electronics MX77A004HF2	Surface Mount Right Angle	All	Board to Cable/Wire	Square	Shrouded - 4 Wall	85 °C	-40 °C	Solder Retention	Locking Ramp	Copper Alloy	Male Pin	Header	1	Polyphenylene Sulfide (PPS) Glass Filled	Tin	3 A	4	9.7 mm	0.382 in	Blue	6.1 mm	0.24 in	Solder
JAE Electronics MX77A008SF1	Free Hanging (In-Line)					85 °C	-40 °C		Latch Holder		Female Socket	Receptacle	2	Polybutylene Terephthalate (PBT)			8							Crimp	Black	Contacts Not Included
JAE Electronics MX77A008HF1	Surface Mount Right Angle	All	Board to Cable/Wire	Square	Shrouded - 4 Wall	85 °C	-40 °C	Solder Retention	Locking Ramp	Copper Alloy	Male Pin	Header	2	Polyphenylene Sulfide (PPS) Glass Filled	Tin	3 A	8	9.7 mm	0.382 in	Black	6.1 mm	0.24 in	Solder				0.116 in	2.95 mm
JAE Electronics MX77A012HF1	Surface Mount Right Angle	All	Board to Cable/Wire	Square	Shrouded - 4 Wall	85 °C	-40 °C	Solder Retention	Locking Ramp	Copper Alloy	Male Pin	Header	2	Polyphenylene Sulfide (PPS) Glass Filled	Tin	3 A	12	9.7 mm	0.382 in	Black	6.1 mm	0.24 in	Solder				0.116 in	2.95 mm
JAE Electronics MX77A020HF1	Surface Mount Right Angle	All	Board to Cable/Wire	Square	Shrouded - 4 Wall	85 °C	-40 °C	Solder Retention	Locking Ramp	Copper Alloy	Male Pin	Header	2	Polyphenylene Sulfide (PPS) Glass Filled	Tin	3 A	20	9.7 mm	0.382 in	Black	6.1 mm	0.24 in	Solder				0.116 in	2.95 mm
JAE Electronics MX77A024HF1	Surface Mount Right Angle	All	Board to Cable/Wire	Square	Shrouded - 4 Wall	85 °C	-40 °C	Solder Retention	Locking Ramp	Copper Alloy	Male Pin	Header	2	Polyphenylene Sulfide (PPS) Glass Filled	Tin	3 A	24	9.7 mm	0.382 in	Black	6.1 mm	0.24 in	Solder				0.116 in	2.95 mm	UL94 V-0

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 9.15
		10	$ 8.24
		25	$ 7.76
		42	$ 7.56
		84	$ 7.36
		252	$ 6.57
		462	$ 6.17
		966	$ 5.45

Description

General part information

MX77A Series

Connector Header Surface Mount, Right Angle 24 position
