MX77A008SF1

Active

JAE Electronics

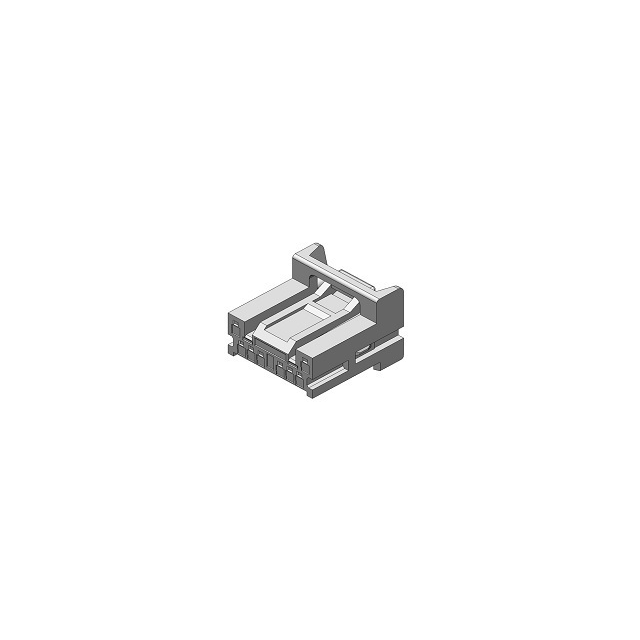

CONN RCPT HSG 8POS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MX77A008SF1

Active

JAE Electronics

CONN RCPT HSG 8POS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MX77A008SF1

Color	Black
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Latch Holder
Insulation Material	Polybutylene Terephthalate (PBT)
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	8
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C

MX77A Series

Part	Mounting Type	Number of Positions Loaded	Style	Contact Shape	Shrouding	Operating Temperature [Max]	Operating Temperature [Min]	Features	Fastening Type	Contact Material	Contact Type	Connector Type	Number of Rows	Insulation Material	Contact Finish - Post	Current Rating (Amps)	Number of Positions	Insulation Height [z]	Insulation Height [z]	Insulation Color	Contact Length - Mating	Contact Length - Mating [x]	Termination	Contact Termination	Color	Note	Row Spacing - Mating	Row Spacing - Mating	Material Flammability Rating
JAE Electronics MX77A004HF2	Surface Mount Right Angle	All	Board to Cable/Wire	Square	Shrouded - 4 Wall	85 °C	-40 °C	Solder Retention	Locking Ramp	Copper Alloy	Male Pin	Header	1	Polyphenylene Sulfide (PPS) Glass Filled	Tin	3 A	4	9.7 mm	0.382 in	Blue	6.1 mm	0.24 in	Solder
JAE Electronics MX77A008SF1	Free Hanging (In-Line)					85 °C	-40 °C		Latch Holder		Female Socket	Receptacle	2	Polybutylene Terephthalate (PBT)			8							Crimp	Black	Contacts Not Included
JAE Electronics MX77A008HF1	Surface Mount Right Angle	All	Board to Cable/Wire	Square	Shrouded - 4 Wall	85 °C	-40 °C	Solder Retention	Locking Ramp	Copper Alloy	Male Pin	Header	2	Polyphenylene Sulfide (PPS) Glass Filled	Tin	3 A	8	9.7 mm	0.382 in	Black	6.1 mm	0.24 in	Solder				0.116 in	2.95 mm
JAE Electronics MX77A012HF1	Surface Mount Right Angle	All	Board to Cable/Wire	Square	Shrouded - 4 Wall	85 °C	-40 °C	Solder Retention	Locking Ramp	Copper Alloy	Male Pin	Header	2	Polyphenylene Sulfide (PPS) Glass Filled	Tin	3 A	12	9.7 mm	0.382 in	Black	6.1 mm	0.24 in	Solder				0.116 in	2.95 mm
JAE Electronics MX77A020HF1	Surface Mount Right Angle	All	Board to Cable/Wire	Square	Shrouded - 4 Wall	85 °C	-40 °C	Solder Retention	Locking Ramp	Copper Alloy	Male Pin	Header	2	Polyphenylene Sulfide (PPS) Glass Filled	Tin	3 A	20	9.7 mm	0.382 in	Black	6.1 mm	0.24 in	Solder				0.116 in	2.95 mm
JAE Electronics MX77A024HF1	Surface Mount Right Angle	All	Board to Cable/Wire	Square	Shrouded - 4 Wall	85 °C	-40 °C	Solder Retention	Locking Ramp	Copper Alloy	Male Pin	Header	2	Polyphenylene Sulfide (PPS) Glass Filled	Tin	3 A	24	9.7 mm	0.382 in	Black	6.1 mm	0.24 in	Solder				0.116 in	2.95 mm	UL94 V-0

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 1.79
		10	$ 1.63
		25	$ 1.54
		40	$ 1.51
		150	$ 1.43
		300	$ 1.26

Description

General part information

MX77A Series

8 Rectangular Connectors - Housings Receptacle Black
