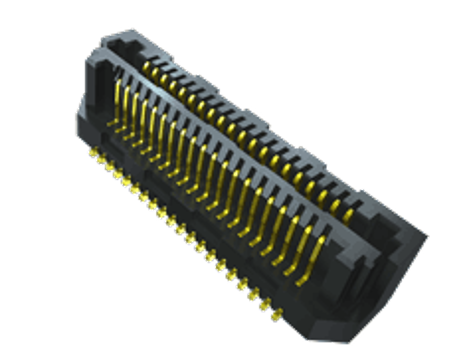

Specification	LSS-110-03-F-DV-A-K

Connector Type	Non-Gendered, Hermaphroditic, Self Mating
Contact Finish	Gold
Contact Finish Thickness	3 µin
Features	Board Guide, Pick and Place
Height Above Board	0.209 in
Mated Stacking Height Options	7mm, 8mm, 10mm
Mounting Type	Surface Mount
Number of Positions	20
Number of Rows	2
Pitch	0.025 in

LSS-110 Series

Part	Contact Finish	Connector Type	Contact Finish Thickness	Mounting Type	Number of Rows	Height Above Board	Number of Positions	Mated Stacking Height Options	Pitch	Features
Samtec Inc. LSS-110-02-L-DV	Gold	Hermaphroditic Non-Gendered Self Mating	10 Ąin	Surface Mount	2	0.287 in	20	10mm 12mm 9mm	0.025 in
Samtec Inc. LSS-110-02-F-DV-A-K-TR	Gold	Hermaphroditic Non-Gendered Self Mating	3 µin	Surface Mount	2	0.287 in	20	10mm 12mm 9mm	0.025 in	Board Guide Pick and Place
Samtec Inc. LSS-110-03-L-DV-K-TR	Gold	Hermaphroditic Non-Gendered Self Mating	10 Ąin	Surface Mount	2	0.209 in	20	10mm 7mm 8mm	0.025 in	Pick and Place
Samtec Inc. LSS-110-01-F-DV-A-TR	Gold	Hermaphroditic Non-Gendered Self Mating	3 µin	Surface Mount	2	0.169 in	20	6mm 7mm 9mm	0.025 in	Board Guide
Samtec Inc. LSS-110-03-L-DV-A-K-TR	Gold	Hermaphroditic Non-Gendered Self Mating	10 Ąin	Surface Mount	2	0.209 in	20	10mm 7mm 8mm	0.025 in	Board Guide Pick and Place
Samtec Inc. LSS-110-02-L-DV-A-TR	Gold	Hermaphroditic Non-Gendered Self Mating	10 Ąin	Surface Mount	2	0.287 in	20	10mm 12mm 9mm	0.025 in	Board Guide
Samtec Inc. LSS-110-03-F-DV-A-TR	Gold	Hermaphroditic Non-Gendered Self Mating	3 µin	Surface Mount	2	0.209 in	20	10mm 7mm 8mm	0.025 in	Board Guide
Samtec Inc. LSS-110-01-L-DV-A-K	Gold	Hermaphroditic Non-Gendered Self Mating	10 Ąin	Surface Mount	2	0.169 in	20	6mm 7mm 9mm	0.025 in	Board Guide Pick and Place
Samtec Inc. LSS-110-02-F-DV-LC-K-TR	Gold	Hermaphroditic Non-Gendered Self Mating	3 µin	Surface Mount	2	0.287 in	20	10mm 12mm 9mm	0.025 in	Board Lock Pick and Place
Samtec Inc. LSS-110-01-F-DV-A-K-TR	Gold	Hermaphroditic Non-Gendered Self Mating	3 µin	Surface Mount	2	0.169 in	20	6mm 7mm 9mm	0.025 in	Board Guide Pick and Place
