M80-273M106-00-00

Active

Harwin Inc.

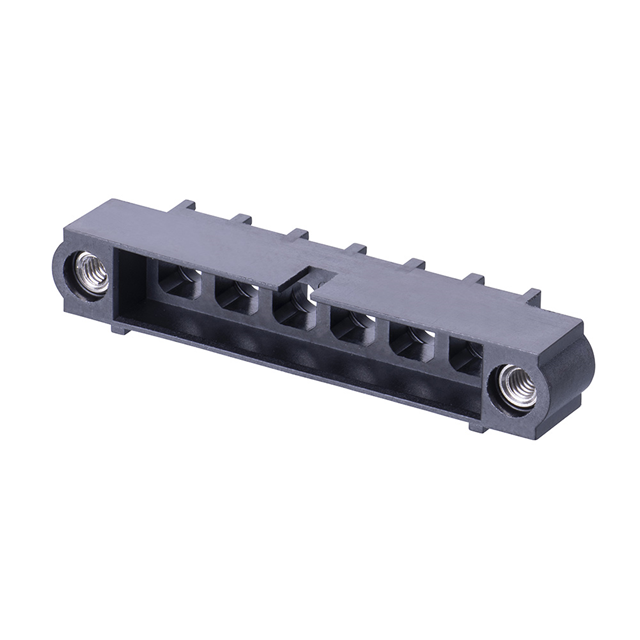

CONNECTOR HOUSING, DATAMATE MIX-TEK M80 SERIES, PLUG, 6 POSITIONS, 4 MM

Search across all available documentation for this part.

Active

Harwin Inc.

CONNECTOR HOUSING, DATAMATE MIX-TEK M80 SERIES, PLUG, 6 POSITIONS, 4 MM

Technical Specifications

Parameters and characteristics for this part

Part	Note	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Color	Contact Termination	Features	Number of Rows	Number of Positions	Pitch [x]	Pitch [x]	Connector Type	Insulation Material	Contact Type
Harwin Inc. M80-273MA03-00-00	Contacts Not Included	Free Hanging (In-Line)	-55 °C	125 °C	Black	Crimp and Solder	Jackscrews Polarizing Key	1	3	4 mm	0.157 in	Plug	Polyphenylene Sulfide (PPS)	Male Pin
Harwin Inc. M80-273MU04-00-00	Contacts Not Included		-55 °C	125 °C	Black	Crimp and Solder	Mating Flange Mounting Flange Polarizing Key		4			Plug	Polyphenylene Sulfide (PPS)	Male Pin
Harwin Inc. M80-273MC06-00-00	Contacts Not Included	Free Hanging (In-Line)	-55 °C	125 °C	Black	Crimp and Solder	Jackscrews Polarizing Key	1	6	4 mm	0.157 in	Plug	Polyphenylene Sulfide (PPS)	Male Pin
Harwin Inc. M80-273M106-00-00	Contacts Not Included	Free Hanging (In-Line)	-55 °C	125 °C	Black	Crimp and Solder	Polarizing Key	1	6	4 mm	0.157 in	Plug	Polyphenylene Sulfide (PPS)	Male Pin

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

6 (Coax or Power) Rectangular Connectors - Housings Plug Black 0.157" (4.00mm)
