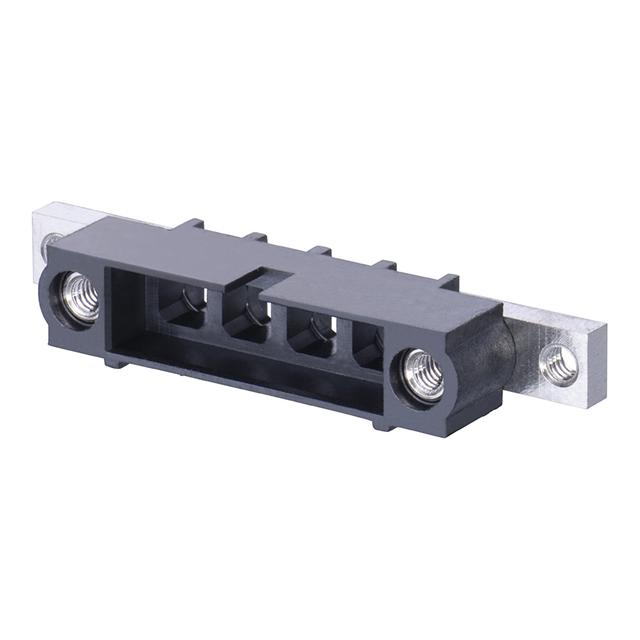

M80-273MU04-00-00

Active

Harwin Inc.

CONNECTOR HOUSING, PLUG, 4POS, 2MM/4MM ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Harwin Inc.

CONNECTOR HOUSING, PLUG, 4POS, 2MM/4MM ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	M80-273MU04-00-00

Color	Black
Connector Type	Plug
Contact Termination	Crimp and Solder
Contact Type	Male Pin
Features	Polarizing Key, Mounting Flange, Mating Flange
Insulation Material	Polyphenylene Sulfide (PPS)
Note	Contacts Not Included
Number of Positions	4
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C

Part	Note	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Color	Contact Termination	Features	Number of Rows	Number of Positions	Pitch [x]	Pitch [x]	Connector Type	Insulation Material	Contact Type
Harwin Inc. M80-273MA03-00-00	Contacts Not Included	Free Hanging (In-Line)	-55 °C	125 °C	Black	Crimp and Solder	Jackscrews Polarizing Key	1	3	4 mm	0.157 in	Plug	Polyphenylene Sulfide (PPS)	Male Pin
Harwin Inc. M80-273MU04-00-00	Contacts Not Included		-55 °C	125 °C	Black	Crimp and Solder	Mating Flange Mounting Flange Polarizing Key		4			Plug	Polyphenylene Sulfide (PPS)	Male Pin
Harwin Inc. M80-273MC06-00-00	Contacts Not Included	Free Hanging (In-Line)	-55 °C	125 °C	Black	Crimp and Solder	Jackscrews Polarizing Key	1	6	4 mm	0.157 in	Plug	Polyphenylene Sulfide (PPS)	Male Pin
Harwin Inc. M80-273M106-00-00	Contacts Not Included	Free Hanging (In-Line)	-55 °C	125 °C	Black	Crimp and Solder	Polarizing Key	1	6	4 mm	0.157 in	Plug	Polyphenylene Sulfide (PPS)	Male Pin
