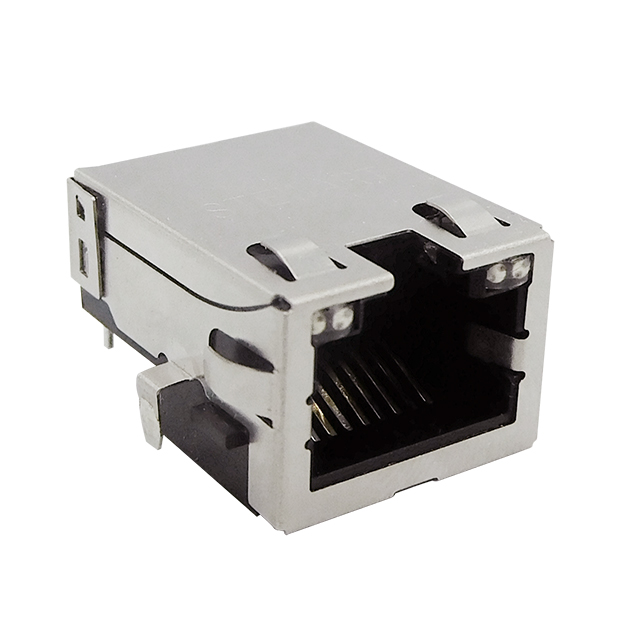

SS-74800-142

Active

BEL MAGNETIC SOLUTIONS

JACK MID-PLANE BI-COLOR LED 1G

Search across all available documentation for this part.

Active

BEL MAGNETIC SOLUTIONS

JACK MID-PLANE BI-COLOR LED 1G

Technical Specifications

Parameters and characteristics for this part

Specification	SS-74800-142

Connector Type	Jack
Contact Finish	Gold
Contact Finish Thickness	50 µin
Contact Finish Thickness	1.27 µm
Contact Material	Copper Alloy
Housing Material	Thermoplastic
LED Color	Yellow, Green
Mounting Type	Mid Mount, Through Hole
Number of Ports	1
Number of Positions/Contacts	8p8c (RJ45, Ethernet)
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	90 °
Ratings	Cat5e
Shielding	Shielded, EMI Finger
Tab Direction	Up
Termination	Solder

Part	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Ratings	LED Color	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Shielding	Number of Positions/Contacts	Tab Direction	Contact Material	Orientation	Mounting Type	Number of Rows	Housing Material	Termination	Number of Ports
BEL MAGNETIC SOLUTIONS SS-74800-146	Gold	50 µin	1.27 µm	Cat5e	Green Yellow	Jack	85 °C	-40 °C	Shielded EMI Finger	8p8c (RJ45 Ethernet)	Up	Copper Alloy	90 °	Mid Mount Through Hole	1	Thermoplastic	Solder	1
BEL MAGNETIC SOLUTIONS SS-74800-143	Gold	50 µin	1.27 µm	Cat5e	Does Not Contain LED	Jack	85 °C	-40 °C	Shielded EMI Finger	8p8c (RJ45 Ethernet)	Up	Copper Alloy	90 °	Mid Mount Through Hole	1	Thermoplastic	Solder	1
BEL MAGNETIC SOLUTIONS SS-74800-125	Gold	30 Áin	0.76 Ám	Cat5e	Green - Green	Jack	85 °C	-40 °C	Shielded EMI Finger	8p8c (RJ45 Ethernet)	Up	Copper Alloy	90 °	Mid Mount Through Hole	1	Thermoplastic	Solder	4
BEL MAGNETIC SOLUTIONS SS-74800-139	Gold	50 µin	1.27 µm	Cat5e	Yellow - Green	Jack	85 °C	-40 °C	Shielded EMI Finger	8p8c (RJ45 Ethernet)	Up	Copper Alloy	90 °	Mid Mount Through Hole	1	Thermoplastic	Solder	1
BEL MAGNETIC SOLUTIONS SS-74800-142	Gold	50 µin	1.27 µm	Cat5e	Green Yellow	Jack	85 °C	-40 °C	Shielded EMI Finger	8p8c (RJ45 Ethernet)	Up	Copper Alloy	90 °	Mid Mount Through Hole	1	Thermoplastic	Solder	1
BEL MAGNETIC SOLUTIONS SS-74800-144	Gold	50 µin	1.27 µm	Cat5e	Yellow - Green	Jack	85 °C	-40 °C	Shielded EMI Finger	8p8c (RJ45 Ethernet)	Up	Copper Alloy	90 °	Mid Mount Through Hole	1	Thermoplastic	Solder	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	900	$ 3.89

General part information

Jack Modular Connector 8p8c (RJ45, Ethernet) 90° Angle (Right) Shielded, EMI Finger Cat5e
