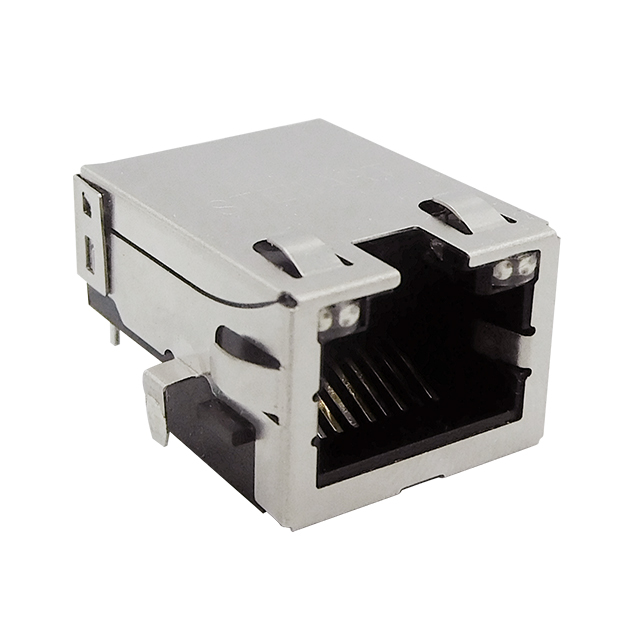

Specification	SS-74800-143

Connector Type	Jack, Ethernet, RJ45
Contact Finish	Gold
Contact Finish Thickness	50 µin
Contact Material	Copper Alloy
Housing Material	Thermoplastic
LED Color	Does Not Contain LED
Mounting Type	Through Hole, Mid Mount
Number of Contacts	8
Number of Ports	1
Number of Positions	8
Number of Rows	1
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Orientation Angle	90 °
Orientation Direction	Right
Ratings	Cat5e
Shielding	EMI Finger, Shielded
Tab Direction	Up
Termination	Solder

SS-74800 Series

Part	Number of Rows	Shielding	Ratings	Orientation Angle	Orientation Direction	Contact Material	Number of Ports	Mounting Type	Termination	Tab Direction	Number of Positions	Connector Type	Number of Contacts	Contact Finish	LED Color	Contact Finish Thickness	Operating Temperature (Min)	Operating Temperature (Max)	Housing Material
Bel Fuse Inc. SS-74800-145	1	EMI Finger Shielded	Cat5e	90 °	Right	Copper Alloy	1	Mid Mount Through Hole	Solder	Up	8	Ethernet Jack RJ45	8	Gold	Does Not Contain LED	50 µin	-40 °C	85 °C	Thermoplastic
Bel Fuse Inc. SS-74800-146	1	EMI Finger Shielded	Cat5e	90 °	Right	Copper Alloy	1	Mid Mount Through Hole	Solder	Up	8	Ethernet Jack RJ45	8	Gold	Green Yellow Yellow - Green	50 µin	-40 °C	85 °C	Thermoplastic
Bel Fuse Inc. SS-74800-143	1	EMI Finger Shielded	Cat5e	90 °	Right	Copper Alloy	1	Mid Mount Through Hole	Solder	Up	8	Ethernet Jack RJ45	8	Gold	Does Not Contain LED	50 µin	-40 °C	85 °C	Thermoplastic
Bel Fuse Inc. SS-74800-125	1	EMI Finger Shielded	Cat5e	90 °	Right	Copper Alloy	4	Mid Mount Through Hole	Solder	Up	8	Ethernet Jack RJ45	8	Gold	Green - Green	30 µin	-40 °C	85 °C	Thermoplastic
Bel Fuse Inc. SS-74800-139	1	EMI Finger Shielded	Cat5e	90 °	Right	Copper Alloy	1	Mid Mount Through Hole	Solder	Up	8	Ethernet Jack RJ45	8	Gold	Yellow - Green	50 µin	-40 °C	85 °C	Thermoplastic
Bel Fuse Inc. SS-74800-142	1	EMI Finger Shielded	Cat5e	90 °	Right	Copper Alloy	1	Mid Mount Through Hole	Solder	Up	8	Ethernet Jack RJ45	8	Gold	Green Yellow Yellow - Green	50 µin	-40 °C	85 °C	Thermoplastic
Bel Fuse Inc. SS-74800-144	1	EMI Finger Shielded	Cat5e	90 °	Right	Copper Alloy	1	Mid Mount Through Hole	Solder	Up	8	Ethernet Jack RJ45	8	Gold	Yellow - Green	50 µin	-40 °C	85 °C	Thermoplastic

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

SS-74800-143 | Datasheet
