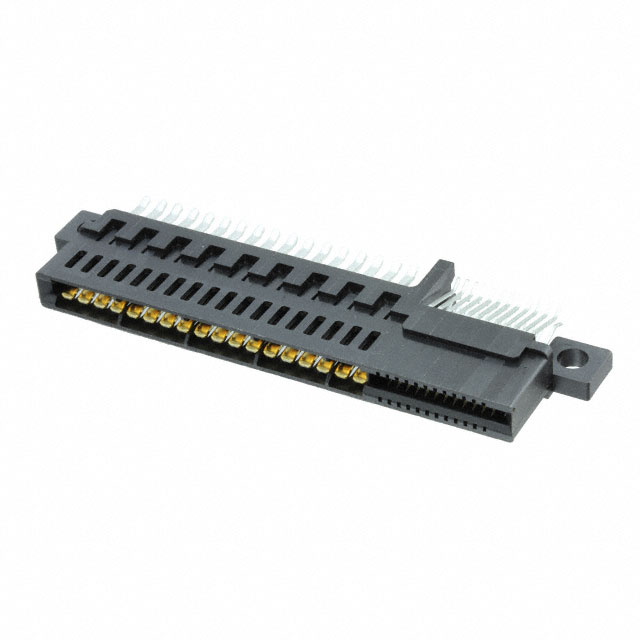

10107844-004LF

Active

Amphenol ICC (FCI)

CONN EDGE DUAL FMALE 60POS GOLD

Search across all available documentation for this part.

Active

Amphenol ICC (FCI)

CONN EDGE DUAL FMALE 60POS GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	10107844-004LF

Card Thickness	0.062 in
Card Thickness	1.57 mm
Card Type	Non Specified - Dual Edge
Color	Black
Contact Finish	Gold
Contact Material	Copper Alloy
Contact Type	Cantilever
Features	Card Extender, Polarizing Key
Flange Feature	Unthreaded, Straddle Mount Opening
Flange Feature	3.9 mm
Flange Feature	0.154 in
Gender	Female
Material - Insulation	Thermoplastic
Mounting Type	Board Edge, Straddle Mount
Number of Positions [custom]	60
Number of Positions [custom]	36
Number of Positions/Bay/Row [custom]	12
Number of Positions/Bay/Row [custom]	18
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Read Out	Dual
Termination	Solder

Part	Number of Positions/Bay/Row [custom]	Number of Positions/Bay/Row [custom]	Contact Finish	Number of Positions [custom]	Number of Positions [custom]	Material - Insulation	Termination	Card Thickness	Card Thickness	Operating Temperature [Max]	Operating Temperature [Min]	Color	Mounting Type	Card Type	Flange Feature	Flange Feature	Flange Feature	Gender	Contact Material	Number of Rows	Features	Contact Type	Read Out
Amphenol ICC (FCI) 10107844-003LF	12	18	Gold	60	36	Thermoplastic	Solder	0.062 in	1.57 mm	105 ░C	-55 °C	Black	Board Edge Straddle Mount	Non Specified - Dual Edge	Straddle Mount Opening Unthreaded	3.9 mm	0.154 in	Female	Copper Alloy	2	Card Extender	Cantilever	Dual
Amphenol ICC (FCI) 10107844-002LF	12	18	Gold	60	36	Thermoplastic	Solder	0.062 in	1.57 mm	105 ░C	-55 °C	Black	Board Edge Straddle Mount	Non Specified - Dual Edge	Straddle Mount Opening Unthreaded	3.9 mm	0.154 in	Female	Copper Alloy	2	Card Extender	Cantilever	Dual
Amphenol ICC (FCI) 10107844-004LF	12	18	Gold	60	36	Thermoplastic	Solder	0.062 in	1.57 mm	105 ░C	-55 °C	Black	Board Edge Straddle Mount	Non Specified - Dual Edge	Straddle Mount Opening Unthreaded	3.9 mm	0.154 in	Female	Copper Alloy	2	Card Extender Polarizing Key	Cantilever	Dual

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1080	$ 6.33

General part information

60 (24 + 36 Power) Position Female Connector Non Specified - Dual Edge Gold Black
