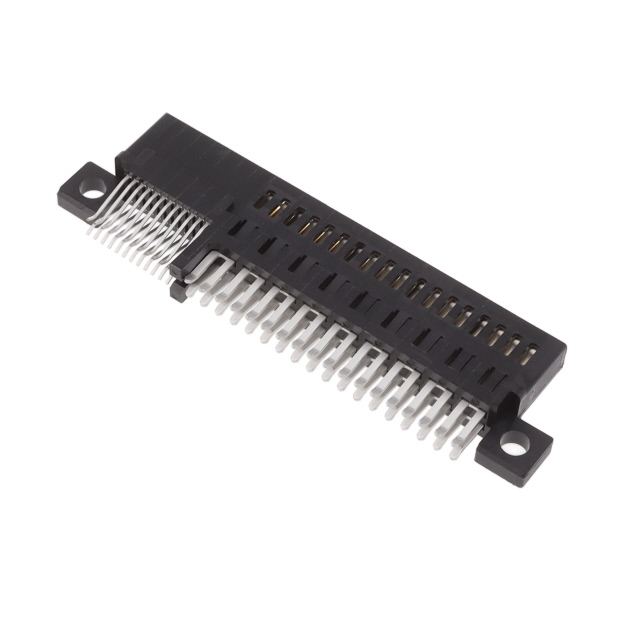

10107844-002LF
ActiveAmphenol ICC (FCI)
CONN EDGE DUAL FMALE 60POS GOLD
Deep-Dive with AI
Search across all available documentation for this part.
10107844-002LF
ActiveAmphenol ICC (FCI)
CONN EDGE DUAL FMALE 60POS GOLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 10107844-002LF |
|---|---|
| Card Thickness | 0.062 in |
| Card Thickness | 1.57 mm |
| Card Type | Non Specified - Dual Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Features | Card Extender |
| Flange Feature | Unthreaded, Straddle Mount Opening |
| Flange Feature | 3.9 mm |
| Flange Feature | 0.154 in |
| Gender | Female |
| Material - Insulation | Thermoplastic |
| Mounting Type | Board Edge, Straddle Mount |
| Number of Positions [custom] | 60 |
| Number of Positions [custom] | 36 |
| Number of Positions/Bay/Row [custom] | 12 |
| Number of Positions/Bay/Row [custom] | 18 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Read Out | Dual |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 9.01 | |
| 10 | $ 7.42 | |||
| 25 | $ 7.15 | |||
| 40 | $ 7.01 | |||
| 80 | $ 5.90 | |||
Description
General part information
10107844 Series
60 (24 + 36 Power) Position Female Connector Non Specified - Dual Edge Gold Black
