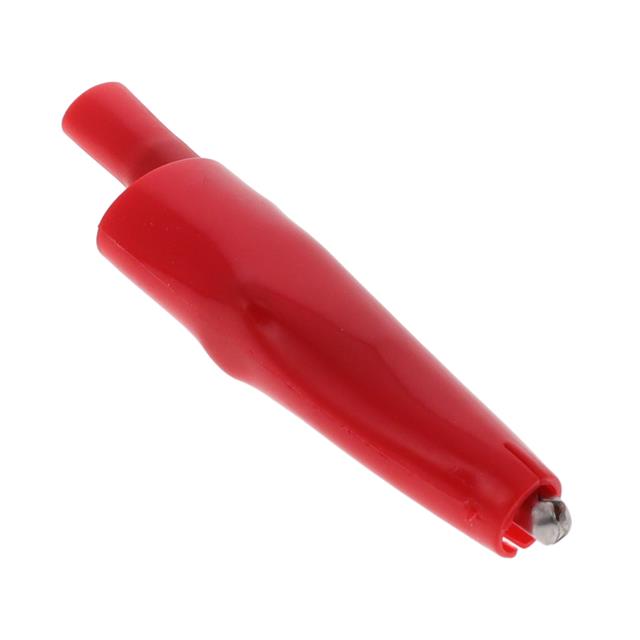

BU-63X-2

Active

Mueller Electric Co

INSULATED ALLIGATOR CLIP, RED, 10A/7.9MM ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

BU-63X-2

Active

Mueller Electric Co

INSULATED ALLIGATOR CLIP, RED, 10A/7.9MM ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	BU-63X-2

Color	Red
Current Rating (Amps)	10 A
Insulation	Insulated
Jaw Opening	0.31 in
Jaw Opening	7.87 mm
Length	2.25 in
Length	57.15 mm
Length
Material	Stainless Steel
Material - Insulation	Poly-Vinyl Chloride (PVC)
Quantity	1 Box
Termination	Banana, Female Socket (Jack)
Type	Alligator

BU-63 Series

Part	Material - Insulation	Current Rating (Amps)	Jaw Opening	Jaw Opening	Type	Termination	Insulation	Quantity	Length	Length	Material	Color	Plating
Mueller Electric Co BU-63X-0	Poly-Vinyl Chloride (PVC)	10 A	0.31 in	7.87 mm	Alligator	Banana Female Socket (Jack)	Insulated	1 Box	2.25 in	57.15 mm	Stainless Steel	Black
Mueller Electric Co BU-63-0	Poly-Vinyl Chloride (PVC)	10 A	0.31 in	7.87 mm	Alligator	Banana Female Socket (Jack)	Insulated	1 Box				Black	Nickel
Mueller Electric Co BU-63C-6	Poly-Vinyl Chloride (PVC)	10 A	0.31 in	7.87 mm	Alligator	Banana Female Socket (Jack)	Insulated	1 Box	2.25 in	57.15 mm	Copper	Blue
Mueller Electric Co BU-63-5	Poly-Vinyl Chloride (PVC)	10 A	0.31 in	7.87 mm	Alligator	Banana Female Socket (Jack)	Insulated	1 Box				Green	Nickel
Mueller Electric Co BU-63-2	Poly-Vinyl Chloride (PVC)	10 A	0.31 in	7.87 mm	Alligator	Banana Female Socket (Jack)	Insulated	1 Box				Red	Nickel
Mueller Electric Co BU-63C-5	Poly-Vinyl Chloride (PVC)	10 A	0.31 in	7.87 mm	Alligator	Banana Female Socket (Jack)	Insulated	1 Box	2.25 in	57.15 mm	Copper	Green
Mueller Electric Co BU-63C-0	Poly-Vinyl Chloride (PVC)	10 A	0.31 in	7.87 mm	Alligator	Banana Female Socket (Jack)	Insulated	1 Box	2.25 in	57.15 mm	Copper	Black
Mueller Electric Co BU-63X-2	Poly-Vinyl Chloride (PVC)	10 A	0.31 in	7.87 mm	Alligator	Banana Female Socket (Jack)	Insulated	1 Box	2.25 in	57.15 mm	Stainless Steel	Red
Mueller Electric Co BU-63-6	Poly-Vinyl Chloride (PVC)	10 A	0.31 in	7.87 mm	Alligator	Banana Female Socket (Jack)	Insulated	1 Box				Blue	Nickel
Mueller Electric Co BU-63-9	Poly-Vinyl Chloride (PVC)	10 A	0.31 in	7.87 mm	Alligator	Banana Female Socket (Jack)	Insulated	1 Box				White	Nickel

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.87
		10	$ 1.53
		100	$ 1.46
		500	$ 1.41
		1000	$ 1.38
Newark	Each	1	$ 3.53
		100	$ 3.29
		500	$ 3.08
		1000	$ 2.83
		2500	$ 2.58

Description

General part information

BU-63 Series

10 A Insulated Alligator Test Clip Stainless Steel 0.310" (7.87mm)

Documents

Technical documentation and resources
