BU-63C-0

Active

Mueller Electric Co

ALLIGATOR CLIP, INSULATED, 7.95 MM, 10 A, BLACK

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsBU-60 Series Datasheet Datasheet +1

BU-63C-0

Active

Mueller Electric Co

ALLIGATOR CLIP, INSULATED, 7.95 MM, 10 A, BLACK

Deep-Dive with AI

DocumentsBU-60 Series Datasheet Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	BU-63C-0

Color	Black
Current Rating (Amps)	10 A
Insulation	Insulated
Jaw Opening	0.31 in
Jaw Opening	7.87 mm
Length	2.25 in
Length	57.15 mm
Length
Material	Copper
Material - Insulation	Poly-Vinyl Chloride (PVC)
Quantity	1 Box
Termination	Banana, Female Socket (Jack)
Type	Alligator

BU-63 Series

Part	Material - Insulation	Current Rating (Amps)	Jaw Opening	Jaw Opening	Type	Termination	Insulation	Quantity	Length	Length	Material	Color	Plating
Mueller Electric Co BU-63X-0	Poly-Vinyl Chloride (PVC)	10 A	0.31 in	7.87 mm	Alligator	Banana Female Socket (Jack)	Insulated	1 Box	2.25 in	57.15 mm	Stainless Steel	Black
Mueller Electric Co BU-63-0	Poly-Vinyl Chloride (PVC)	10 A	0.31 in	7.87 mm	Alligator	Banana Female Socket (Jack)	Insulated	1 Box				Black	Nickel
Mueller Electric Co BU-63C-6	Poly-Vinyl Chloride (PVC)	10 A	0.31 in	7.87 mm	Alligator	Banana Female Socket (Jack)	Insulated	1 Box	2.25 in	57.15 mm	Copper	Blue
Mueller Electric Co BU-63-5	Poly-Vinyl Chloride (PVC)	10 A	0.31 in	7.87 mm	Alligator	Banana Female Socket (Jack)	Insulated	1 Box				Green	Nickel
Mueller Electric Co BU-63-2	Poly-Vinyl Chloride (PVC)	10 A	0.31 in	7.87 mm	Alligator	Banana Female Socket (Jack)	Insulated	1 Box				Red	Nickel
Mueller Electric Co BU-63C-5	Poly-Vinyl Chloride (PVC)	10 A	0.31 in	7.87 mm	Alligator	Banana Female Socket (Jack)	Insulated	1 Box	2.25 in	57.15 mm	Copper	Green
Mueller Electric Co BU-63C-0	Poly-Vinyl Chloride (PVC)	10 A	0.31 in	7.87 mm	Alligator	Banana Female Socket (Jack)	Insulated	1 Box	2.25 in	57.15 mm	Copper	Black
Mueller Electric Co BU-63X-2	Poly-Vinyl Chloride (PVC)	10 A	0.31 in	7.87 mm	Alligator	Banana Female Socket (Jack)	Insulated	1 Box	2.25 in	57.15 mm	Stainless Steel	Red
Mueller Electric Co BU-63-6	Poly-Vinyl Chloride (PVC)	10 A	0.31 in	7.87 mm	Alligator	Banana Female Socket (Jack)	Insulated	1 Box				Blue	Nickel
Mueller Electric Co BU-63-9	Poly-Vinyl Chloride (PVC)	10 A	0.31 in	7.87 mm	Alligator	Banana Female Socket (Jack)	Insulated	1 Box				White	Nickel

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.12
		10	$ 1.73
		100	$ 1.65
		500	$ 1.60
		1000	$ 1.57
Newark	Each	1	$ 2.44
		100	$ 2.27
		500	$ 2.13
		1000	$ 1.96
		2500	$ 1.79

Description

General part information

BU-63 Series

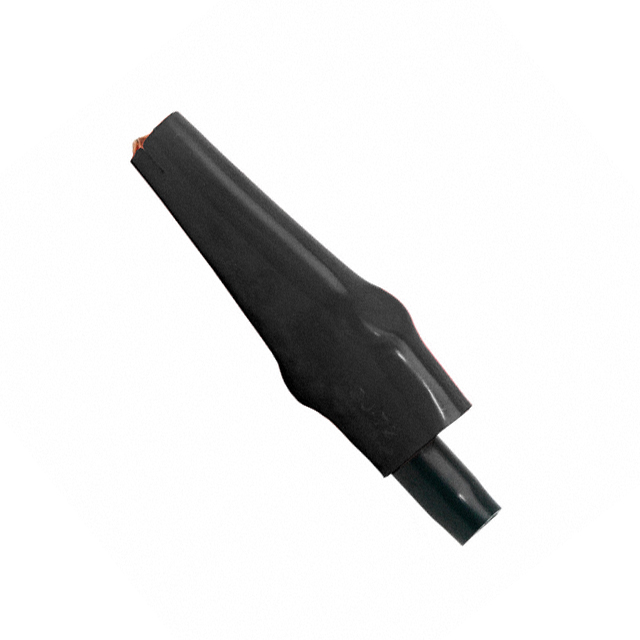

The BU-63C-0 is a solid copper Alligator Clip fully insulated with a PVC sheath. It is compatible with all shrouded, un-shrouded and retractable 4mm banana plugs. It has music wire spring, copper-plated steel and PVC insulation.

Documents

Technical documentation and resources

BU-60 Series Datasheet

Datasheet

Technical Data Sheet EN

Datasheet
