245102-08-48.00

Active

Amphenol RF

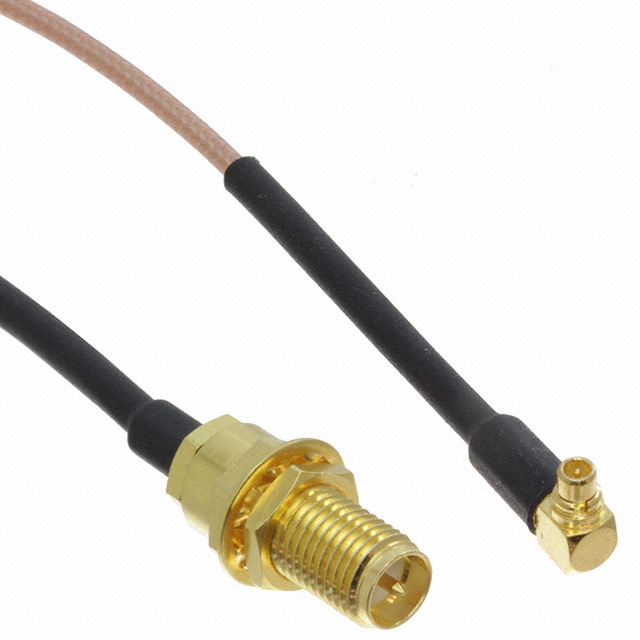

CBL ASSY RPSMA-MMCX JACK-PLUG 4'

Search across all available documentation for this part.

Active

Amphenol RF

CBL ASSY RPSMA-MMCX JACK-PLUG 4'

Technical Specifications

Parameters and characteristics for this part

Specification	245102-08-48.00

1st Connector	RP-SMA Jack
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Male
2nd Connector	MMCX Plug, Right Angle
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Impedance	50 Ohms
Cable Type	RG-178
Color	Copper
Features	Shielded
Frequency - Max [Max]	3 GHz
Length	1200 mm
Length	4 ft
Length	48 in
Overall Impedance	50 Ohms
Style	RP-SMA to MMCX

Part	2nd Connector Mounting Type	Cable Type	1st Connector Mounting Feature	Frequency - Max [Max]	2nd Contact Gender	Overall Impedance	Cable Impedance	1st Contact Gender	1st Connector	2nd Connector	Length	Length	Style	Features	Color	1st Connector Mounting Type	Length
Amphenol RF 245102-08-12.00	Free Hanging (In-Line)	RG-178	Bulkhead - Front Side Nut	3 GHz	Male	50 Ohms	50 Ohms	Male	RP-SMA Jack	MMCX Plug Right Angle	12 "	304.8 mm	RP-SMA to MMCX	Shielded	Copper	Panel Mount
Amphenol RF 245102-08-48.00	Free Hanging (In-Line)	RG-178	Bulkhead - Front Side Nut	3 GHz	Male	50 Ohms	50 Ohms	Male	RP-SMA Jack	MMCX Plug Right Angle	48 in	1200 mm	RP-SMA to MMCX	Shielded	Copper	Panel Mount	4 ft
Amphenol RF 245102-08-06.00	Free Hanging (In-Line)	RG-178	Bulkhead - Front Side Nut	3 GHz	Male	50 Ohms	50 Ohms	Male	RP-SMA Jack	MMCX Plug Right Angle	6 in	152.4 mm	RP-SMA to MMCX	Shielded	Copper	Panel Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	25	$ 25.56

General part information

Cable Assembly Coaxial RP-SMA to MMCX RG-178 48.0" (1.2m) 4.0'
