245102-08-12.00
ActiveAmphenol RF

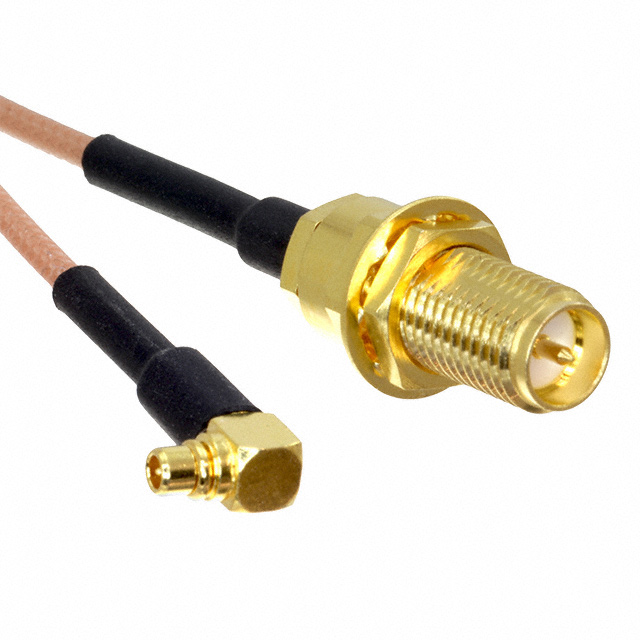

CBL ASSY RPSMA-MMCX JACK-PLG 12"
Deep-Dive with AI
Search across all available documentation for this part.
245102-08-12.00
ActiveAmphenol RF
CBL ASSY RPSMA-MMCX JACK-PLG 12"
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 245102-08-12.00 |
|---|---|
| 1st Connector | RP-SMA Jack |
| 1st Connector Mounting Feature | Bulkhead - Front Side Nut |
| 1st Connector Mounting Type | Panel Mount |
| 1st Contact Gender | Male |
| 2nd Connector | MMCX Plug, Right Angle |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Type | RG-178 |
| Color | Copper |
| Features | Shielded |
| Frequency - Max [Max] | 3 GHz |
| Length | 12 " |
| Length | 304.8 mm |
| Overall Impedance | 50 Ohms |
| Style | RP-SMA to MMCX |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 32.44 | |
| 10 | $ 25.04 | |||
| 25 | $ 22.69 | |||
| 50 | $ 21.10 | |||
| 100 | $ 19.66 | |||
| 250 | $ 17.97 | |||
| 500 | $ 16.83 | |||
Description
General part information
245102 Series
Cable Assembly Coaxial RP-SMA to MMCX RG-178 12.00" (304.80mm)
Documents
Technical documentation and resources
No documents available
