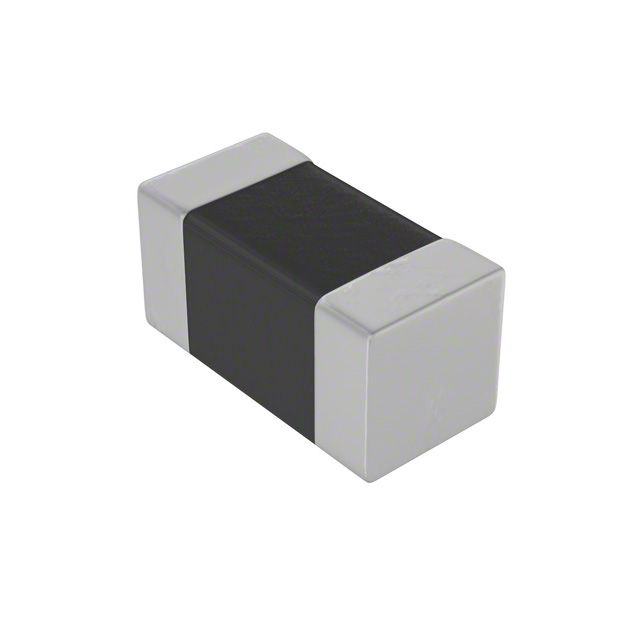

L0603CR33JRMST

Obsolete

KEMET

FIXED IND 330NH 150MA 2.1OHM SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

L0603CR33JRMST

Obsolete

KEMET

FIXED IND 330NH 150MA 2.1OHM SMD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	L0603CR33JRMST

Current Rating (Amps)	150 mA
DC Resistance (DCR) [Max]	2.1 Ohm
Frequency - Self Resonant	480 MHz
Height - Seated (Max) [Max] [z]	0.028 in
Height - Seated (Max) [Max] [z]	0.71 mm
Inductance	330 nH
Inductance Frequency - Test	100 MHz
Material - Core	Ceramic
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	0603 (1608 Metric)
Q @ Freq	100 MHz, 14
Shielding	Unshielded
Size / Dimension [x]	0.063 in
Size / Dimension [x]	1.6 mm
Size / Dimension [y]	0.81 mm
Size / Dimension [y]	0.032 in
Supplier Device Package	1608 Metric
Supplier Device Package	0603
Tolerance	5 %
Type	Multilayer

L0603C Series

Part	Type	Current Rating (Amps)	Supplier Device Package	Supplier Device Package	Inductance	DC Resistance (DCR)	Package / Case	Tolerance	Operating Temperature [Max]	Operating Temperature [Min]	Frequency - Self Resonant	Material - Core	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Shielding	Q @ Freq	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Mounting Type	Inductance Frequency - Test	DC Resistance (DCR) [Max]
KEMET L0603C1N0SRMST	Multilayer	300 mA	1608 Metric	0603	1 nH	50 mOhm	0603 (1608 Metric)	0.3 nH	85 °C	-40 °C	13 GHz	Ceramic	0.81 mm	0.032 in	0.063 in	1.6 mm	Unshielded	14 100 MHz	0.028 in	0.71 mm	Surface Mount	100 MHz
KEMET L0603C1R0MDMIT	Multilayer	750 mA			1 µH	200 mOhm	0603 (1608 Metric)	20 %	85 °C	-40 °C		Ferrite	0.8 mm	0.031 in	0.063 in	1.6 mm	Shielded		0.031 "	0.8 mm	Surface Mount	1 MHz
KEMET L0603C3N9SRMST	Multilayer	300 mA	1608 Metric	0603	3.9 nH	140 mOhm	0603 (1608 Metric)	0.3 nH	85 °C	-40 °C	8 GHz	Ceramic	0.81 mm	0.032 in	0.063 in	1.6 mm	Unshielded	13 100 MHz	0.028 in	0.71 mm	Surface Mount	100 MHz
KEMET L0603C100MPMST	Multilayer	50 mA	1608 Metric	0603	10 µH		0603 (1608 Metric)	20 %	85 °C	-40 °C		Ferrite	0.8 mm	0.031 in	0.063 in	1.6 mm	Shielded		0.037 "	0.95 mm	Surface Mount	2 MHz	850 mOhm
KEMET L0603CR50MDMIT	Multilayer	900 mA			500 nH		0603 (1608 Metric)	20 %	85 °C	-40 °C		Ferrite	0.8 mm	0.031 in	0.063 in	1.6 mm	Shielded		0.031 "	0.8 mm	Surface Mount	1 MHz	150 mOhm
KEMET L0603CR33JRMST	Multilayer	150 mA	1608 Metric	0603	330 nH		0603 (1608 Metric)	5 %	85 °C	-40 °C	480 MHz	Ceramic	0.81 mm	0.032 in	0.063 in	1.6 mm	Unshielded	14 100 MHz	0.028 in	0.71 mm	Surface Mount	100 MHz	2.1 Ohm
KEMET L0603C4N7SRMST	Multilayer	300 mA	1608 Metric	0603	4.7 nH		0603 (1608 Metric)	0.3 nH	85 °C	-40 °C	6.5 GHz	Ceramic	0.81 mm	0.032 in	0.063 in	1.6 mm	Unshielded	13 100 MHz	0.028 in	0.71 mm	Surface Mount	100 MHz	160 mOhm
KEMET L0603C18NJRMST	Multilayer	300 mA	1608 Metric	0603	18 nH	350 mOhm	0603 (1608 Metric)	5 %	85 °C	-40 °C	3 GHz	Ceramic	0.81 mm	0.032 in	0.063 in	1.6 mm	Unshielded		0.028 in	0.71 mm	Surface Mount	100 MHz
KEMET L0603C12NJRMST	Multilayer	300 mA	1608 Metric	0603	12 nH		0603 (1608 Metric)	5 %	85 °C	-40 °C	4 GHz	Ceramic	0.81 mm	0.032 in	0.063 in	1.6 mm	Unshielded	14 100 MHz	0.028 in	0.71 mm	Surface Mount	100 MHz	280 mOhm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.10
		10	$ 0.04
		25	$ 0.04
		50	$ 0.04
		100	$ 0.04
		250	$ 0.04
		500	$ 0.04
		1000	$ 0.04
	Digi-Reel®	1	$ 0.10
		10	$ 0.04
		25	$ 0.04
		50	$ 0.04
		100	$ 0.04
		250	$ 0.04
		500	$ 0.04
		1000	$ 0.04

Description

General part information

L0603C Series

330 nH Unshielded Multilayer Inductor 150 mA 2.1Ohm Max 0603 (1608 Metric)
