L0603CR50MDMIT

Obsolete

KEMET

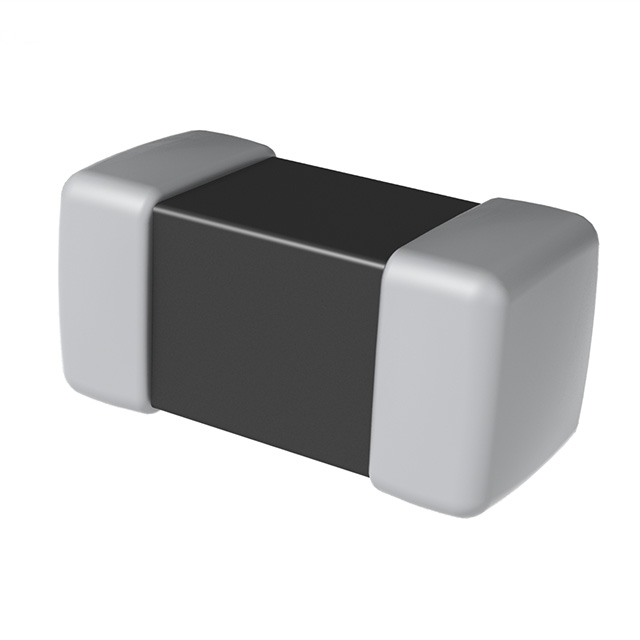

FIXED IND 500NH 900MA 150MOHM SM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsL0603CR50MDMIT Spec Datasheet

L0603CR50MDMIT

Obsolete

KEMET

FIXED IND 500NH 900MA 150MOHM SM

Deep-Dive with AI

DocumentsL0603CR50MDMIT Spec Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	L0603CR50MDMIT

Current Rating (Amps)	900 mA
DC Resistance (DCR) [Max]	150 mOhm
Height - Seated (Max) [Max] [z]	0.8 mm
Height - Seated (Max) [Max] [z]	0.031 "
Inductance	500 nH
Inductance Frequency - Test	1 MHz
Material - Core	Ferrite
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	0603 (1608 Metric)
Shielding	Shielded
Size / Dimension [x]	0.063 in
Size / Dimension [x]	1.6 mm
Size / Dimension [y]	0.8 mm
Size / Dimension [y]	0.031 in
Tolerance	20 %
Type	Multilayer

L0603C Series

Part	Type	Current Rating (Amps)	Supplier Device Package	Supplier Device Package	Inductance	DC Resistance (DCR)	Package / Case	Tolerance	Operating Temperature [Max]	Operating Temperature [Min]	Frequency - Self Resonant	Material - Core	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Shielding	Q @ Freq	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Mounting Type	Inductance Frequency - Test	DC Resistance (DCR) [Max]
KEMET L0603C1N0SRMST	Multilayer	300 mA	1608 Metric	0603	1 nH	50 mOhm	0603 (1608 Metric)	0.3 nH	85 °C	-40 °C	13 GHz	Ceramic	0.81 mm	0.032 in	0.063 in	1.6 mm	Unshielded	14 100 MHz	0.028 in	0.71 mm	Surface Mount	100 MHz
KEMET L0603C1R0MDMIT	Multilayer	750 mA			1 µH	200 mOhm	0603 (1608 Metric)	20 %	85 °C	-40 °C		Ferrite	0.8 mm	0.031 in	0.063 in	1.6 mm	Shielded		0.031 "	0.8 mm	Surface Mount	1 MHz
KEMET L0603C3N9SRMST	Multilayer	300 mA	1608 Metric	0603	3.9 nH	140 mOhm	0603 (1608 Metric)	0.3 nH	85 °C	-40 °C	8 GHz	Ceramic	0.81 mm	0.032 in	0.063 in	1.6 mm	Unshielded	13 100 MHz	0.028 in	0.71 mm	Surface Mount	100 MHz
KEMET L0603C100MPMST	Multilayer	50 mA	1608 Metric	0603	10 µH		0603 (1608 Metric)	20 %	85 °C	-40 °C		Ferrite	0.8 mm	0.031 in	0.063 in	1.6 mm	Shielded		0.037 "	0.95 mm	Surface Mount	2 MHz	850 mOhm
KEMET L0603CR50MDMIT	Multilayer	900 mA			500 nH		0603 (1608 Metric)	20 %	85 °C	-40 °C		Ferrite	0.8 mm	0.031 in	0.063 in	1.6 mm	Shielded		0.031 "	0.8 mm	Surface Mount	1 MHz	150 mOhm
KEMET L0603CR33JRMST	Multilayer	150 mA	1608 Metric	0603	330 nH		0603 (1608 Metric)	5 %	85 °C	-40 °C	480 MHz	Ceramic	0.81 mm	0.032 in	0.063 in	1.6 mm	Unshielded	14 100 MHz	0.028 in	0.71 mm	Surface Mount	100 MHz	2.1 Ohm
KEMET L0603C4N7SRMST	Multilayer	300 mA	1608 Metric	0603	4.7 nH		0603 (1608 Metric)	0.3 nH	85 °C	-40 °C	6.5 GHz	Ceramic	0.81 mm	0.032 in	0.063 in	1.6 mm	Unshielded	13 100 MHz	0.028 in	0.71 mm	Surface Mount	100 MHz	160 mOhm
KEMET L0603C18NJRMST	Multilayer	300 mA	1608 Metric	0603	18 nH	350 mOhm	0603 (1608 Metric)	5 %	85 °C	-40 °C	3 GHz	Ceramic	0.81 mm	0.032 in	0.063 in	1.6 mm	Unshielded		0.028 in	0.71 mm	Surface Mount	100 MHz
KEMET L0603C12NJRMST	Multilayer	300 mA	1608 Metric	0603	12 nH		0603 (1608 Metric)	5 %	85 °C	-40 °C	4 GHz	Ceramic	0.81 mm	0.032 in	0.063 in	1.6 mm	Unshielded	14 100 MHz	0.028 in	0.71 mm	Surface Mount	100 MHz	280 mOhm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.14

Description

General part information

L0603C Series

500 nH Shielded Multilayer Inductor 900 mA 150mOhm Max 0603 (1608 Metric)
