LP0115CCKW01A

Active

NKK Switches

PUSHBUTTON SWITCH, LP01 SERIES, 16 MM, SPDT, ON-(ON), ROUND, BLACK

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

LP0115CCKW01A

Active

NKK Switches

PUSHBUTTON SWITCH, LP01 SERIES, 16 MM, SPDT, ON-(ON), ROUND, BLACK

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	LP0115CCKW01A

Actuator Marking	No Marking
Actuator Type	Round, Button
Circuit	SPDT
Color - Actuator/Cap	Black
Current Rating (Amps)	3 A
Electrical Life	50000 Cycles
Mechanical Life	500000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	16 mm
Switch Function	On-Mom
Termination Style	0.11 in
Termination Style	Quick Connect, Solder
Termination Style	2.8 mm
Type	Standard
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

LP0115C Series

Part	Color - Actuator/Cap	Termination Style	Termination Style	Termination Style	Mounting Type	Voltage Rating - AC	Mechanical Life	Actuator Type	Switch Function	Electrical Life	Current Rating (Amps)	Type	Circuit	Voltage Rating - DC	Panel Cutout Dimensions [diameter]	Actuator Marking	Operating Temperature [Max]	Operating Temperature [Min]	Illumination Type, Color	Illumination Voltage (Nominal)	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]
NKK Switches LP0115CMKW01F	Green	0.11 in	Quick Connect Solder	2.8 mm	Panel Mount Snap-In	125 V	500000 Cycles	Button Round	On-Mom	50000 Cycles	3 A	Standard	SPDT	30 V	17.3 mm	No Marking	70 °C	-25 °C
NKK Switches LP0115CCKW015DB	White	0.11 in	Quick Connect Solder	2.8 mm	Panel Mount Front	125 V	500000 Cycles	Button Round	On-Mom	50000 Cycles	3 A	Illuminated Standard	SPDT	30 V	16 mm	No Marking			Amber LED	2 VDC	-10 °C	50 °C
NKK Switches LP0115CCKW01F	Green	0.11 in	Quick Connect Solder	2.8 mm	Panel Mount Front	125 V	500000 Cycles	Button Round	On-Mom	50000 Cycles	3 A	Standard	SPDT	30 V	16 mm	No Marking	70 °C	-25 °C
NKK Switches LP0115CMKW01B/CUL	White	0.11 in	Quick Connect Solder	2.8 mm	Panel Mount Snap-In	125 V	500000 Cycles	Button Round	On-Mom	50000 Cycles	3 A	Standard	SPDT	30 V	17.3 mm	No Marking	70 °C	-25 °C
NKK Switches LP0115CMKW01B	White	0.11 in	Quick Connect Solder	2.8 mm	Panel Mount Snap-In	125 V	500000 Cycles	Button Round	On-Mom	50000 Cycles	3 A	Standard	SPDT	30 V	17.3 mm	No Marking	70 °C	-25 °C
NKK Switches LP0115CCKW015CA	Black	0.11 in	Quick Connect Solder	2.8 mm	Panel Mount Front	125 V	500000 Cycles	Button Round	On-Mom	50000 Cycles	3 A	Illuminated Standard	SPDT	30 V	16 mm	No Marking			LED Red	2.05 VDC	-10 °C	50 °C
NKK Switches LP0115CCKW015CB	White	0.11 in	Quick Connect Solder	2.8 mm	Panel Mount Front	125 V	500000 Cycles	Button Round	On-Mom	50000 Cycles	3 A	Illuminated Standard	SPDT	30 V	16 mm	No Marking			LED Red	2.05 VDC	-10 °C	50 °C
NKK Switches LP0115CCKW01A/CUL-WL	Black	0.11 in	Quick Connect Solder	2.8 mm	Panel Mount Front	125 V	500000 Cycles	Button Round	On-Mom	50000 Cycles	3 A	Standard	SPDT	30 V	16 mm	No Marking	70 °C	-25 °C
NKK Switches LP0115CCKW01A	Black	0.11 in	Quick Connect Solder	2.8 mm	Panel Mount Front	125 V	500000 Cycles	Button Round	On-Mom	50000 Cycles	3 A	Standard	SPDT	30 V	16 mm	No Marking	70 °C	-25 °C
NKK Switches LP0115CMKW015DA	Black	0.11 in	Quick Connect Solder	2.8 mm	Panel Mount Snap-In	125 V	500000 Cycles	Button Round	On-Mom	50000 Cycles	3 A	Illuminated Standard	SPDT	30 V	17.3 mm	No Marking			Amber LED	2 VDC	-10 °C	50 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 11.48
		10	$ 9.91
		25	$ 9.34
		50	$ 8.93
		100	$ 8.54
		250	$ 8.05
		500	$ 7.70
		1000	$ 7.36
Newark	Each	1	$ 15.03
		10	$ 12.82
		25	$ 11.64

Description

General part information

LP0115C Series

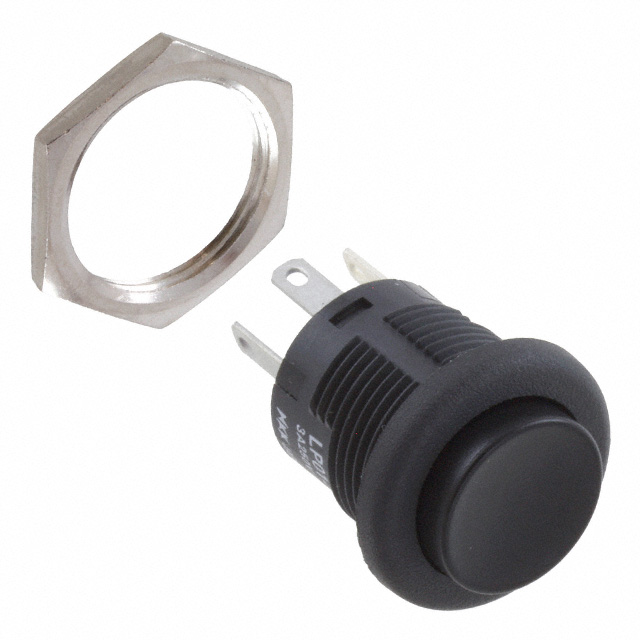

The LP0115CCKW01A is a short body non-illuminated SPDT Pushbutton Switch with black cap and the switch made of polycarbonate actuator. The smooth and slightly concave surface of cap designed to fit fingertip. Unique design and construction of cap prevents its removal and limits tampering.
