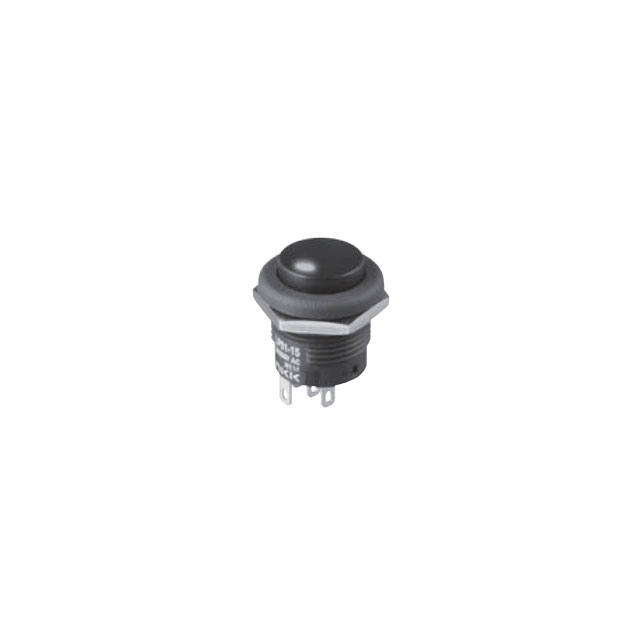

LP0115CCKW01A/CUL-WL

Active

NKK Switches

LP0115CCKW01A/CUL W/ 12" WIRES,

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	LP0115CCKW01A/CUL-WL

Actuator Marking	No Marking
Actuator Type	Round, Button
Circuit	SPDT
Color - Actuator/Cap	Black
Current Rating (Amps)	3 A
Electrical Life	50000 Cycles
Mechanical Life	500000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	16 mm
Switch Function	On-Mom
Termination Style	0.11 in
Termination Style	Quick Connect, Solder
Termination Style	2.8 mm
Type	Standard
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

LP0115C Series

Part	Color - Actuator/Cap	Termination Style	Termination Style	Termination Style	Mounting Type	Voltage Rating - AC	Mechanical Life	Actuator Type	Switch Function	Electrical Life	Current Rating (Amps)	Type	Circuit	Voltage Rating - DC	Panel Cutout Dimensions [diameter]	Actuator Marking	Operating Temperature [Max]	Operating Temperature [Min]	Illumination Type, Color	Illumination Voltage (Nominal)	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]
NKK Switches LP0115CMKW01F	Green	0.11 in	Quick Connect Solder	2.8 mm	Panel Mount Snap-In	125 V	500000 Cycles	Button Round	On-Mom	50000 Cycles	3 A	Standard	SPDT	30 V	17.3 mm	No Marking	70 °C	-25 °C
NKK Switches LP0115CCKW015DB	White	0.11 in	Quick Connect Solder	2.8 mm	Panel Mount Front	125 V	500000 Cycles	Button Round	On-Mom	50000 Cycles	3 A	Illuminated Standard	SPDT	30 V	16 mm	No Marking			Amber LED	2 VDC	-10 °C	50 °C
NKK Switches LP0115CCKW01F	Green	0.11 in	Quick Connect Solder	2.8 mm	Panel Mount Front	125 V	500000 Cycles	Button Round	On-Mom	50000 Cycles	3 A	Standard	SPDT	30 V	16 mm	No Marking	70 °C	-25 °C
NKK Switches LP0115CMKW01B/CUL	White	0.11 in	Quick Connect Solder	2.8 mm	Panel Mount Snap-In	125 V	500000 Cycles	Button Round	On-Mom	50000 Cycles	3 A	Standard	SPDT	30 V	17.3 mm	No Marking	70 °C	-25 °C
NKK Switches LP0115CMKW01B	White	0.11 in	Quick Connect Solder	2.8 mm	Panel Mount Snap-In	125 V	500000 Cycles	Button Round	On-Mom	50000 Cycles	3 A	Standard	SPDT	30 V	17.3 mm	No Marking	70 °C	-25 °C
NKK Switches LP0115CCKW015CA	Black	0.11 in	Quick Connect Solder	2.8 mm	Panel Mount Front	125 V	500000 Cycles	Button Round	On-Mom	50000 Cycles	3 A	Illuminated Standard	SPDT	30 V	16 mm	No Marking			LED Red	2.05 VDC	-10 °C	50 °C
NKK Switches LP0115CCKW015CB	White	0.11 in	Quick Connect Solder	2.8 mm	Panel Mount Front	125 V	500000 Cycles	Button Round	On-Mom	50000 Cycles	3 A	Illuminated Standard	SPDT	30 V	16 mm	No Marking			LED Red	2.05 VDC	-10 °C	50 °C
NKK Switches LP0115CCKW01A/CUL-WL	Black	0.11 in	Quick Connect Solder	2.8 mm	Panel Mount Front	125 V	500000 Cycles	Button Round	On-Mom	50000 Cycles	3 A	Standard	SPDT	30 V	16 mm	No Marking	70 °C	-25 °C
NKK Switches LP0115CCKW01A	Black	0.11 in	Quick Connect Solder	2.8 mm	Panel Mount Front	125 V	500000 Cycles	Button Round	On-Mom	50000 Cycles	3 A	Standard	SPDT	30 V	16 mm	No Marking	70 °C	-25 °C
NKK Switches LP0115CMKW015DA	Black	0.11 in	Quick Connect Solder	2.8 mm	Panel Mount Snap-In	125 V	500000 Cycles	Button Round	On-Mom	50000 Cycles	3 A	Illuminated Standard	SPDT	30 V	17.3 mm	No Marking			Amber LED	2 VDC	-10 °C	50 °C
