L77SDB25S

Active

Amphenol ICC (Commercial Products)

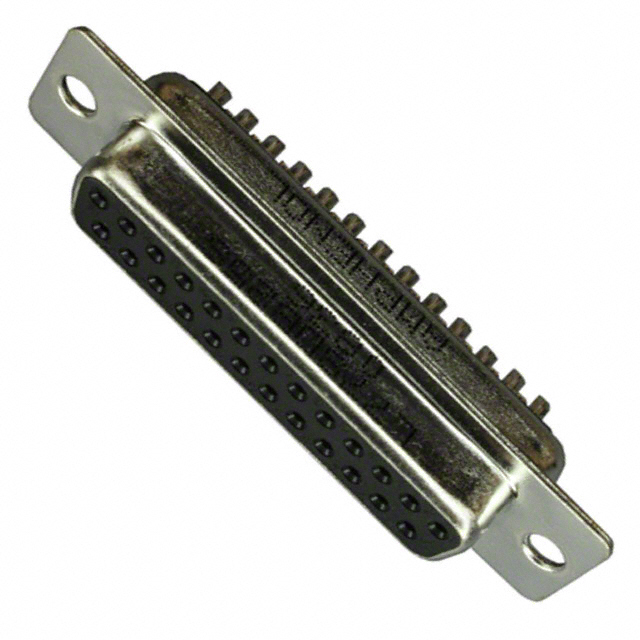

CONN D-SUB RCPT 25POS SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsPreferred Parts Catalog

L77SDB25S

Active

Amphenol ICC (Commercial Products)

CONN D-SUB RCPT 25POS SLDR CUP

Deep-Dive with AI

DocumentsPreferred Parts Catalog

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	L77SDB25S

Color	Black
Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Form	Stamped
Contact Material	Brass
Contact Type	Signal
Current Rating (Amps)	3 A
Dielectric Material	Thermoplastic, Glass Filled
Flange Feature	Housing/Shell (Unthreaded)
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout [custom]	DB, B
Shell Size, Connector Layout [custom]	3
Voltage Rating	250 VDC
Wire Gauge	20 AWG

L77SDB25 Series

Part	Dielectric Material	Termination	Number of Rows	Contact Type	Current Rating (Amps)	Contact Material	Voltage Rating	Contact Finish	Contact Form	Connector Style	Material Flammability Rating	Contact Finish Thickness	Contact Finish Thickness	Color	Flange Feature	Backset Spacing	Backset Spacing	Operating Temperature [Min]	Operating Temperature [Max]	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Mounting Type	Connector Type	Contact Finish Thickness	Wire Gauge
Amphenol ICC (Commercial Products) L77SDB25S1ACH4FC309	Thermoplastic Glass Filled	Solder	2	Signal	3 A	Phosphor Bronze	250 VDC	Gold	Stamped	D-Sub	UL94 V-0	0.76 Ám	30 Áin	Black	Female Screwlock (4-40) Mating Side	0.406 in	10.3 mm	-55 °C	125 °C	B DB	3	Through Hole Right Angle	Receptacle Female Sockets
Amphenol ICC (Commercial Products) L77SDB25SB208	Thermoplastic Glass Filled		2	Signal	3 A	Phosphor Bronze	250 VDC	Gold	Stamped	D-Sub	UL94 V-0			Black	Housing/Shell (Unthreaded)			-55 °C	125 °C	B DB	3	Free Hanging (In-Line)	Receptacle Female Sockets	Flash
Amphenol ICC (Commercial Products) L77SDB25SA4CH3R	Thermoplastic Glass Filled	Solder	2	Signal	3 A	Phosphor Bronze	250 VDC	Gold	Stamped	D-Sub	UL94 V-0			Black	Board Side (M3)	0.318 "	8.08 mm	-55 °C	125 °C	B DB	3	Through Hole Right Angle	Receptacle Female Sockets	Flash
Amphenol ICC (Commercial Products) L77SDB25SA4CH4FC309	Thermoplastic Glass Filled	Solder	2	Signal	3 A	Phosphor Bronze	250 VDC	Gold	Stamped	D-Sub	UL94 V-0	0.76 Ám	30 Áin	Black	Female Screwlock (4-40) Mating Side	0.318 "	8.08 mm	-55 °C	125 °C	B DB	3	Through Hole Right Angle	Receptacle Female Sockets
Amphenol ICC (Commercial Products) L77SDB25SVFMC309	Thermoplastic Glass Filled		2	Signal	3 A	Phosphor Bronze	250 VDC	Gold	Stamped	D-Sub	UL94 V-0	0.76 Ám	30 Áin	Black	Female Screwlock (M3) Mating Side			-55 °C	125 °C	B DB	3	Free Hanging (In-Line)	Receptacle Female Sockets
Amphenol ICC (Commercial Products) L77SDB25S1ACH4F	Thermoplastic Glass Filled	Solder	2	Signal	3 A	Phosphor Bronze	250 VDC	Gold	Stamped	D-Sub	UL94 V-0			Black	Female Screwlock (4-40) Mating Side	0.406 in	10.3 mm	-55 °C	125 °C	B DB	3	Through Hole Right Angle	Receptacle Female Sockets	Flash
Amphenol ICC (Commercial Products) L77SDB25SVFM	Thermoplastic Glass Filled		2	Signal	3 A	Phosphor Bronze	250 VDC	Gold	Stamped	D-Sub	UL94 V-0			Black	Female Screwlock (M3) Mating Side			-55 °C	125 °C	B DB	3	Free Hanging (In-Line)	Receptacle Female Sockets	Flash
Amphenol ICC (Commercial Products) L77SDB25SABCH4FC309	Thermoplastic Glass Filled	Solder	2	Signal	3 A	Phosphor Bronze	250 VDC	Gold	Stamped	D-Sub	UL94 V-0	0.76 Ám	30 Áin	Black	Female Screwlock (4-40) Mating Side	0.59 "	14.99 mm	-55 °C	125 °C	B DB	3	Through Hole Right Angle	Receptacle Female Sockets
Amphenol ICC (Commercial Products) L77SDB25S	Thermoplastic Glass Filled		2	Signal	3 A	Brass	250 VDC	Gold	Stamped	D-Sub	UL94 V-0			Black	Housing/Shell (Unthreaded)			-55 °C	105 ░C	B DB	3	Free Hanging (In-Line)	Receptacle Female Sockets	Flash	20 AWG
Amphenol ICC (Commercial Products) L77SDB25S1ACH3FC309	Thermoplastic Glass Filled	Solder	2	Signal	3 A	Phosphor Bronze	250 VDC	Gold	Stamped	D-Sub	UL94 V-0	0.76 Ám	30 Áin	Black	Female Screwlock (M3) Mating Side	0.406 in	10.3 mm	-55 °C	125 °C	B DB	3	Through Hole Right Angle	Receptacle Female Sockets

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.24
		10	$ 1.04
		25	$ 1.00
		50	$ 0.98
		100	$ 0.94
		250	$ 0.85
		500	$ 0.77
		1000	$ 0.68
		2500	$ 0.62

Description

General part information

L77SDB25 Series

25 Position D-Sub Receptacle, Female Sockets Connector

Documents

Technical documentation and resources

Preferred Parts Catalog

Datasheet
