L77SDB25S1ACH4F
ActiveAmphenol ICC (Commercial Products)

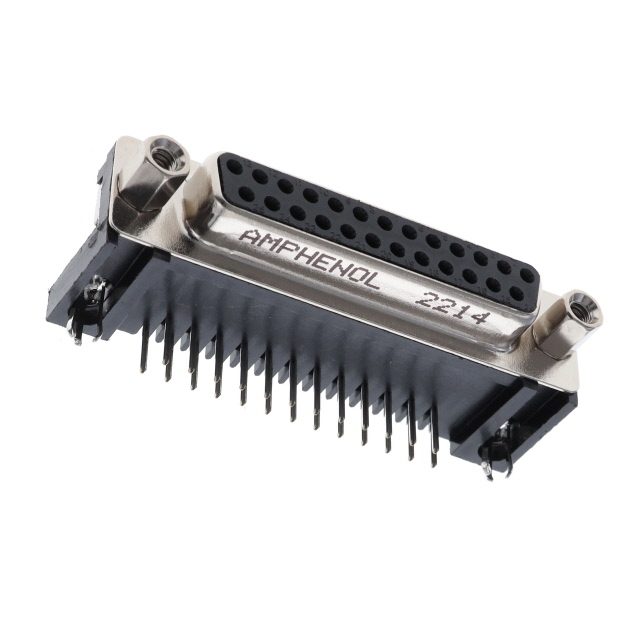

CONN D-SUB RCPT 25POS R/A SLDR
Deep-Dive with AI
Search across all available documentation for this part.
L77SDB25S1ACH4F
ActiveAmphenol ICC (Commercial Products)
CONN D-SUB RCPT 25POS R/A SLDR
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | L77SDB25S1ACH4F |
|---|---|
| Backset Spacing | 0.406 in |
| Backset Spacing | 10.3 mm |
| Color | Black |
| Connector Style | D-Sub |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Contact Form | Stamped |
| Contact Material | Phosphor Bronze |
| Contact Type | Signal |
| Current Rating (Amps) | 3 A |
| Dielectric Material | Thermoplastic, Glass Filled |
| Flange Feature | Female Screwlock (4-40), Mating Side |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Shell Size, Connector Layout [custom] | DB, B |
| Shell Size, Connector Layout [custom] | 3 |
| Termination | Solder |
| Voltage Rating | 250 VDC |
L77SDB25 Series
| Part | Dielectric Material | Termination | Number of Rows | Contact Type | Current Rating (Amps) | Contact Material | Voltage Rating | Contact Finish | Contact Form | Connector Style | Material Flammability Rating | Contact Finish Thickness | Contact Finish Thickness | Color | Flange Feature | Backset Spacing | Backset Spacing | Operating Temperature [Min] | Operating Temperature [Max] | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Mounting Type | Connector Type | Contact Finish Thickness | Wire Gauge |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol ICC (Commercial Products) | Thermoplastic Glass Filled | Solder | 2 | Signal | 3 A | Phosphor Bronze | 250 VDC | Gold | Stamped | D-Sub | UL94 V-0 | 0.76 Ám | 30 Áin | Black | Female Screwlock (4-40) Mating Side | 0.406 in | 10.3 mm | -55 °C | 125 °C | B DB | 3 | Through Hole Right Angle | Receptacle Female Sockets | ||
Amphenol ICC (Commercial Products) | Thermoplastic Glass Filled | 2 | Signal | 3 A | Phosphor Bronze | 250 VDC | Gold | Stamped | D-Sub | UL94 V-0 | Black | Housing/Shell (Unthreaded) | -55 °C | 125 °C | B DB | 3 | Free Hanging (In-Line) | Receptacle Female Sockets | Flash | ||||||
Amphenol ICC (Commercial Products) | Thermoplastic Glass Filled | Solder | 2 | Signal | 3 A | Phosphor Bronze | 250 VDC | Gold | Stamped | D-Sub | UL94 V-0 | Black | Board Side (M3) | 0.318 " | 8.08 mm | -55 °C | 125 °C | B DB | 3 | Through Hole Right Angle | Receptacle Female Sockets | Flash | |||
Amphenol ICC (Commercial Products) | Thermoplastic Glass Filled | Solder | 2 | Signal | 3 A | Phosphor Bronze | 250 VDC | Gold | Stamped | D-Sub | UL94 V-0 | 0.76 Ám | 30 Áin | Black | Female Screwlock (4-40) Mating Side | 0.318 " | 8.08 mm | -55 °C | 125 °C | B DB | 3 | Through Hole Right Angle | Receptacle Female Sockets | ||
Amphenol ICC (Commercial Products) | Thermoplastic Glass Filled | 2 | Signal | 3 A | Phosphor Bronze | 250 VDC | Gold | Stamped | D-Sub | UL94 V-0 | 0.76 Ám | 30 Áin | Black | Female Screwlock (M3) Mating Side | -55 °C | 125 °C | B DB | 3 | Free Hanging (In-Line) | Receptacle Female Sockets | |||||
Amphenol ICC (Commercial Products) | Thermoplastic Glass Filled | Solder | 2 | Signal | 3 A | Phosphor Bronze | 250 VDC | Gold | Stamped | D-Sub | UL94 V-0 | Black | Female Screwlock (4-40) Mating Side | 0.406 in | 10.3 mm | -55 °C | 125 °C | B DB | 3 | Through Hole Right Angle | Receptacle Female Sockets | Flash | |||
Amphenol ICC (Commercial Products) | Thermoplastic Glass Filled | 2 | Signal | 3 A | Phosphor Bronze | 250 VDC | Gold | Stamped | D-Sub | UL94 V-0 | Black | Female Screwlock (M3) Mating Side | -55 °C | 125 °C | B DB | 3 | Free Hanging (In-Line) | Receptacle Female Sockets | Flash | ||||||
Amphenol ICC (Commercial Products) | Thermoplastic Glass Filled | Solder | 2 | Signal | 3 A | Phosphor Bronze | 250 VDC | Gold | Stamped | D-Sub | UL94 V-0 | 0.76 Ám | 30 Áin | Black | Female Screwlock (4-40) Mating Side | 0.59 " | 14.99 mm | -55 °C | 125 °C | B DB | 3 | Through Hole Right Angle | Receptacle Female Sockets | ||
Amphenol ICC (Commercial Products) | Thermoplastic Glass Filled | 2 | Signal | 3 A | Brass | 250 VDC | Gold | Stamped | D-Sub | UL94 V-0 | Black | Housing/Shell (Unthreaded) | -55 °C | 105 ░C | B DB | 3 | Free Hanging (In-Line) | Receptacle Female Sockets | Flash | 20 AWG | |||||
Amphenol ICC (Commercial Products) | Thermoplastic Glass Filled | Solder | 2 | Signal | 3 A | Phosphor Bronze | 250 VDC | Gold | Stamped | D-Sub | UL94 V-0 | 0.76 Ám | 30 Áin | Black | Female Screwlock (M3) Mating Side | 0.406 in | 10.3 mm | -55 °C | 125 °C | B DB | 3 | Through Hole Right Angle | Receptacle Female Sockets |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 3.57 | |
| 10 | $ 3.24 | |||
| 25 | $ 3.07 | |||
| 50 | $ 3.00 | |||
| 100 | $ 2.86 | |||
| 250 | $ 2.50 | |||
| 450 | $ 2.43 | |||
| 950 | $ 2.07 | |||
| 2400 | $ 1.93 | |||
Description
General part information
L77SDB25 Series
25 Position D-Sub Receptacle, Female Sockets Connector
