BQ25731EVM
ActiveI2C NVDC 1 TO 5 CELL, 16-A, BUCK
Deep-Dive with AI
Search across all available documentation for this part.

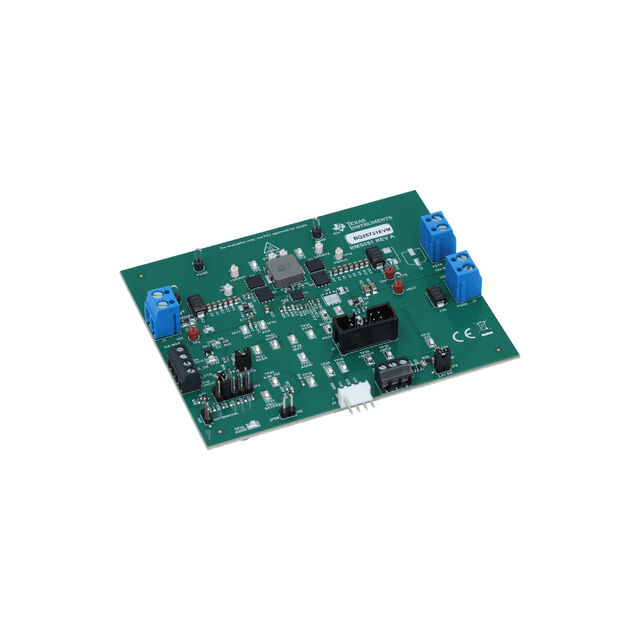

BQ25731EVM
ActiveI2C NVDC 1 TO 5 CELL, 16-A, BUCK
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | BQ25731EVM | BQ25731 Series |
|---|---|---|
| Battery Chemistry | - | Multi-Chemistry |
| Battery Pack Voltage | - | 9 V |
| Battery Pack Voltage | - | 12.6 V |
| Charge Current - Max | - | 16.2 A |
| Contents | Board(s) | Board(s) |
| Current - Charging | - | Constant - Programmable |
| Embedded | False | False |
| Fault Protection | - | Over Current, Over Voltage, Over Temperature |
| Function | Battery Charger | Battery Charger |
| Interface | - | I2C |
| Mounting Type | - | Surface Mount |
| Number of Cells | - | 1 |
| Number of Cells | - | 5 |
| Operating Temperature | - | -40 °C |
| Operating Temperature | - | 85 °C |
| Primary Attributes [Max] [custom] | 24 | 24 |
| Primary Attributes [Max] [custom] | 5 | 5 |
| Primary Attributes [Min] [custom] | 3.5 | 3.5 |
| Primary Attributes [Min] [custom] | 1 | 1 |
| Programmable Features | - | Voltage, Current |
| Secondary Attributes | I2C Interface(s) | I2C Interface(s) |
| Supplied Contents | Board(s) | Board(s) |
| Supplier Device Package | - | 32-QFN (4x4) |
| Type | Power Management | Power Management |
| Utilized IC / Part | BQ25731 | BQ25731 |
| Voltage - Supply (Max) | - | 26 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| DigiKey | Box | 1 | $ 178.80 | |
| Digikey | Box | 1 | $ 178.80 | |
| Mouser Electronics | N/A | 1 | $ 178.80 | |
BQ25731 Series
I2C 1-5 cell NVDC buck-boost battery charge controller with USB type-C PD support
| Part | Current - Charging | Battery Chemistry | Number of Cells [Min] | Number of Cells [Max] | Programmable Features | Charge Current - Max [Max] | Mounting Type | Interface | Operating Temperature [Min] | Operating Temperature [Max] | Supplier Device Package | Fault Protection | Voltage - Supply (Max) [Max] | Battery Pack Voltage [Min] | Battery Pack Voltage [Max] | Contents | Supplied Contents | Function | Type | Utilized IC / Part | Primary Attributes [Max] [custom] | Primary Attributes [Min] [custom] | Primary Attributes [Min] [custom] | Primary Attributes [Max] [custom] | Embedded | Secondary Attributes |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Texas Instruments BQ25731RSNR | Constant - Programmable | Multi-Chemistry | 1 | 5 | Current, Voltage | 16.2 A | Surface Mount | I2C | -40 °C | 85 °C | 32-QFN (4x4) | Over Current, Over Temperature, Over Voltage | 26 V | 9 V | 12.6 V | |||||||||||
Texas Instruments BQ25731EVM | Board(s) | Board(s) | Battery Charger | Power Management | BQ25731 | 24 | 3.5 | 1 | 5 | I2C Interface(s) |
Description
General part information
BQ25731 Series
The BQ25731 is a synchronous buck-boost battery charge controller to charge a 1- to 5-cell battery from a wide range of input sources including USB adapter, high voltage USB-C Power Delivery (PD) sources, and traditional adapters. It offers a low component count, high efficiency solution for space constrained, 1- to 5-cell battery charging applications.
During power up, the charger sets the converter to a buck, boost, or buck-boost configuration based on the input source and battery conditions. The charger seamlessly transits between the buck, boost, and buck-boost operation modes without host control.
The BQ25731 is a synchronous buck-boost battery charge controller to charge a 1- to 5-cell battery from a wide range of input sources including USB adapter, high voltage USB-C Power Delivery (PD) sources, and traditional adapters. It offers a low component count, high efficiency solution for space constrained, 1- to 5-cell battery charging applications.
