8429-6

Active

3M (TC)

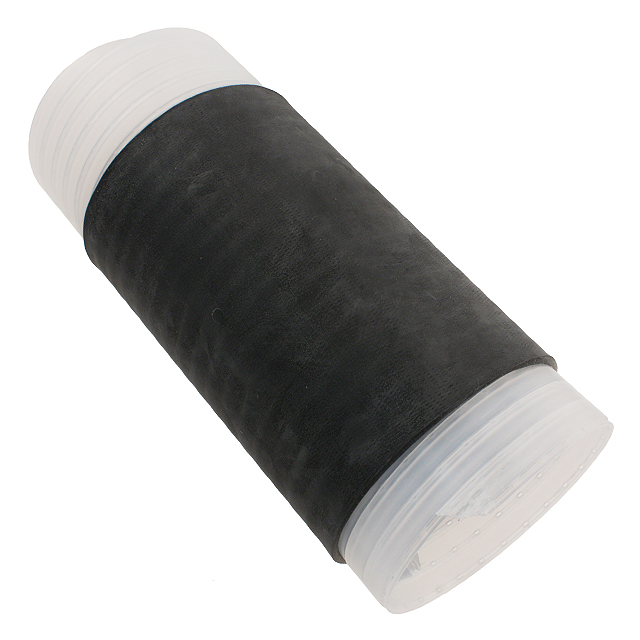

3M COLD SHRINK INSULATOR 8429-6, 10 PER CASE

Search across all available documentation for this part.

Active

3M (TC)

3M COLD SHRINK INSULATOR 8429-6, 10 PER CASE

Technical Specifications

Parameters and characteristics for this part

Specification	8429-6

Color	Black
Diameter [Max] [diameter]	67.8 mm
Diameter [Max] [diameter]	2.67 "
Diameter [Min] [diameter]	32.2 mm
Diameter [Min] [diameter]	1.27 "
Length	152.4 mm
Length	6 "
Length	0.5 '
Material	Ethylene Propylene Rubber (EPR)
Shelf Life	60 Months
Shelf Life Start	Date of Manufacture
Type	Tubing

Part	Length	Length	Length	Type	Shelf Life	Color	Material	Diameter [Max] [diameter]	Diameter [Min] [diameter]	Diameter [Max] [diameter]	Diameter [Min] [diameter]	Shelf Life Start	Length	Length [x]	Length [x]	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Max]	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Max]	Backing, Carrier	Adhesive	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Temperature Range [Min]	Temperature Range [Max]	Temperature Range [Max]	Temperature Range [Min]	Thickness	Thickness	Thickness	Length [x]
3M (TC) 8429-9M	228.6 mm	9 in	0.75 ft	Tubing	60 Months	Black	Ethylene Propylene Rubber (EPR)	67.8 mm	32.2 mm	2.67 "	1.27 "	Date of Manufacture
3M (TC) 8429-6	152.4 mm	6 "		Tubing	60 Months	Black	Ethylene Propylene Rubber (EPR)	67.8 mm	32.2 mm	2.67 "	1.27 "	Date of Manufacture	0.5 '
3M (TC) 8429-18				Tubing	60 Months	Black	Ethylene Propylene Rubber (EPR)	67.8 mm	32.2 mm	2.67 "	1.27 "	Date of Manufacture		457.2 mm	1.5 ft
3M (TC) 8429-2"X72YD	66 m	72 yd	216 ft		18 Months	Yellow						Date of Manufacture				60 °F	27 °C	15 °C	80 °F	Polyester	Rubber	0.002 "	2 mils	0.05 mm	-51 °C	149 °C	300 °F	-60 °F	0.0032 in	0.082 mm	3.2 mils
3M (TC) 8429-12				Tubing	60 Months	Black	Ethylene Propylene Rubber (EPR)	67.8 mm	32.2 mm	2.67 "	1.27 "	Date of Manufacture		304.8 mm	1 ft																	12 "

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Black Cold Shrink Tubing 1.27" ~ 2.67" (32.2mm ~ 67.8mm) X 0.500' (152.40mm, 6.00")
