8429-12

Active

3M (TC)

COLD SHRINK CONNECTOR INSULATORS

Search across all available documentation for this part.

Active

3M (TC)

COLD SHRINK CONNECTOR INSULATORS

Technical Specifications

Parameters and characteristics for this part

Specification	8429-12

Color	Black
Diameter [Max] [diameter]	67.8 mm
Diameter [Max] [diameter]	2.67 "
Diameter [Min] [diameter]	32.2 mm
Diameter [Min] [diameter]	1.27 "
Length [x]	304.8 mm
Length [x]	1 ft
Length [x]	12 "
Material	Ethylene Propylene Rubber (EPR)
Shelf Life	60 Months
Shelf Life Start	Date of Manufacture
Type	Tubing

Part	Length	Length	Length	Type	Shelf Life	Color	Material	Diameter [Max] [diameter]	Diameter [Min] [diameter]	Diameter [Max] [diameter]	Diameter [Min] [diameter]	Shelf Life Start	Length	Length [x]	Length [x]	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Max]	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Max]	Backing, Carrier	Adhesive	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Temperature Range [Min]	Temperature Range [Max]	Temperature Range [Max]	Temperature Range [Min]	Thickness	Thickness	Thickness	Length [x]
3M (TC) 8429-9M	228.6 mm	9 in	0.75 ft	Tubing	60 Months	Black	Ethylene Propylene Rubber (EPR)	67.8 mm	32.2 mm	2.67 "	1.27 "	Date of Manufacture
3M (TC) 8429-6	152.4 mm	6 "		Tubing	60 Months	Black	Ethylene Propylene Rubber (EPR)	67.8 mm	32.2 mm	2.67 "	1.27 "	Date of Manufacture	0.5 '
3M (TC) 8429-18				Tubing	60 Months	Black	Ethylene Propylene Rubber (EPR)	67.8 mm	32.2 mm	2.67 "	1.27 "	Date of Manufacture		457.2 mm	1.5 ft
3M (TC) 8429-2"X72YD	66 m	72 yd	216 ft		18 Months	Yellow						Date of Manufacture				60 °F	27 °C	15 °C	80 °F	Polyester	Rubber	0.002 "	2 mils	0.05 mm	-51 °C	149 °C	300 °F	-60 °F	0.0032 in	0.082 mm	3.2 mils
3M (TC) 8429-12				Tubing	60 Months	Black	Ethylene Propylene Rubber (EPR)	67.8 mm	32.2 mm	2.67 "	1.27 "	Date of Manufacture		304.8 mm	1 ft																	12 "

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

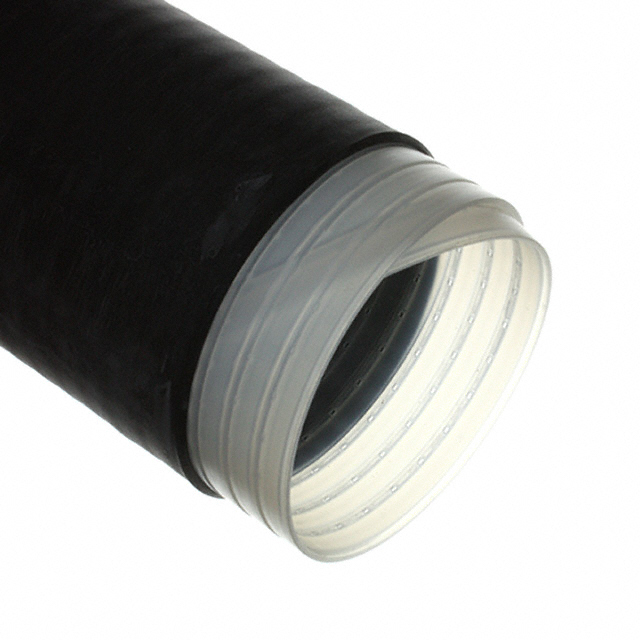

Black Cold Shrink Tubing 1.27" ~ 2.67" (32.2mm ~ 67.8mm) X 1.000' (304.80mm, 12.00")
