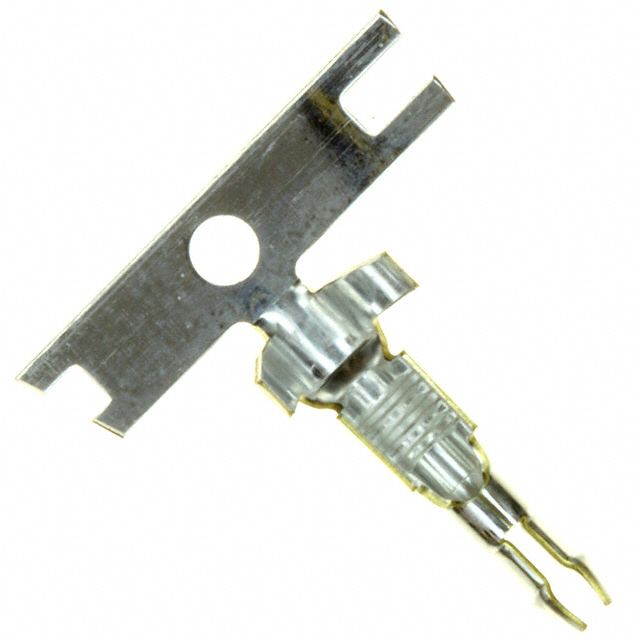

SIN-21T-1.8
ActiveJST Sales America Inc.
CONN TERM WTB 18-22AWG TIN
Deep-Dive with AI
Search across all available documentation for this part.
SIN-21T-1.8
ActiveJST Sales America Inc.
CONN TERM WTB 18-22AWG TIN
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SIN-21T-1.8 |
|---|---|
| Contact Finish | Tin |
| Contact Material | Brass |
| Hole Diameter [diameter] | 0.071 in |
| Hole Diameter [diameter] | 1.8 mm |
| Insulation Diameter [Max] [diameter] | 0.15 " |
| Insulation Diameter [Max] [diameter] | 3.81 mm |
| Insulation Diameter [Min] [diameter] | 0.067 in |
| Insulation Diameter [Min] [diameter] | 1.7 mm |
| Length - Overall | 12.6 mm |
| Length - Overall | 0.496 in |
| Terminal Type | Through Board |
| Wire Gauge [Max] | 22 AWG |
| Wire Gauge [Min] | 17.5 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.20 | |
| 10 | $ 0.10 | |||
| 25 | $ 0.07 | |||
| 50 | $ 0.05 | |||
| 100 | $ 0.05 | |||
| 250 | $ 0.04 | |||
| 500 | $ 0.04 | |||
| 1000 | $ 0.04 | |||
| Tape & Reel (TR) | 3000 | $ 0.03 | ||
| 6000 | $ 0.03 | |||
| 9000 | $ 0.02 | |||
| 15000 | $ 0.02 | |||
| 30000 | $ 0.02 | |||
| 75000 | $ 0.02 | |||
Description
General part information
SIN-21T Series
WTB Tin Terminal Connector 18-22 AWG
