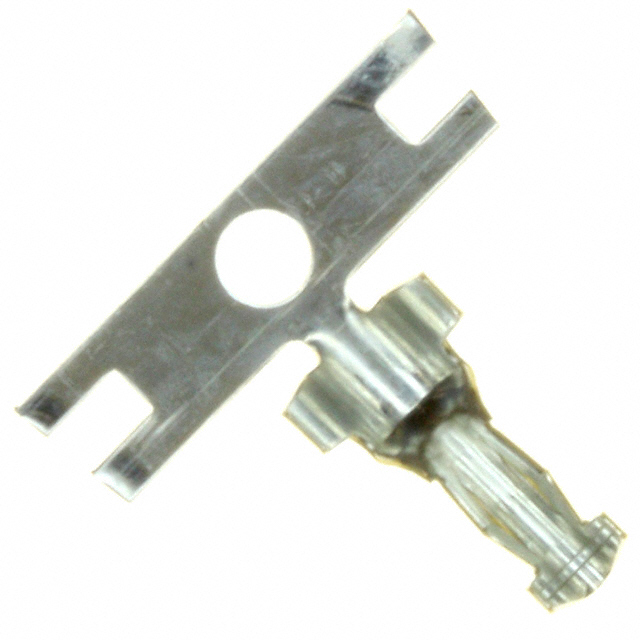

SIN-21T-1.8S
ActiveJST Sales America Inc.
CONN TERM WTB 18-22AWG TIN
Deep-Dive with AI
Search across all available documentation for this part.
SIN-21T-1.8S
ActiveJST Sales America Inc.
CONN TERM WTB 18-22AWG TIN
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SIN-21T-1.8S |
|---|---|
| Contact Finish | Tin |
| Contact Material | Brass |
| Hole Diameter [diameter] | 0.071 in |
| Hole Diameter [diameter] | 1.8 mm |
| Insulation Diameter [Max] [diameter] | 0.118 in |
| Insulation Diameter [Max] [diameter] | 3 mm |
| Insulation Diameter [Min] [diameter] | 0.059 " |
| Insulation Diameter [Min] [diameter] | 1.5 mm |
| Length - Overall [x] | 0.299 in |
| Length - Overall [x] | 7.59 mm |
| Terminal Type | Through Board |
| Wire Gauge [Max] | 22 AWG |
| Wire Gauge [Min] | 17.5 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 4500 | $ 0.02 | |
Description
General part information
SIN-21T Series
WTB Tin Terminal Connector 18-22 AWG
