UPS-04-07.0-01-L-V
ActiveSamtec Inc.

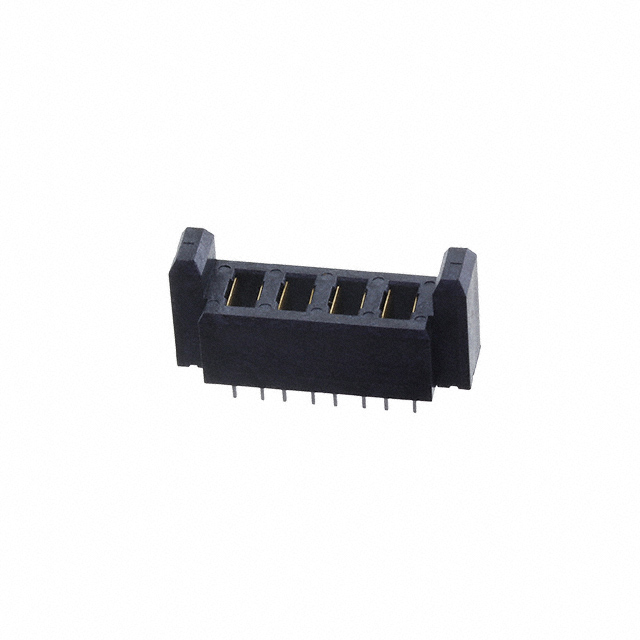

CONN DUAL BLADE POWER HEADER RCP 4POWER POS 2MM SOLDER ST TOP ENTRY THRU-HOLE POWERSTRIP™ TUBE
Deep-Dive with AI
Search across all available documentation for this part.
UPS-04-07.0-01-L-V
ActiveSamtec Inc.
CONN DUAL BLADE POWER HEADER RCP 4POWER POS 2MM SOLDER ST TOP ENTRY THRU-HOLE POWERSTRIP™ TUBE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | UPS-04-07.0-01-L-V |
|---|---|
| Color | Black |
| Connector Type | Receptacle, Female Blade Sockets |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Beryllium Copper |
| Current Rating (Amps) | 20 A |
| Material - Insulation | Liquid Crystal Polymer (LCP) |
| Mounting Type | Through Hole |
| Number of Positions | 4 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pitch [x] | 0.15 in |
| Pitch [x] | 3.81 mm |
| Termination | Solder |
| Voltage Rating | 530 V |
UPS-04 Series
Power to the Board .150" PowerStrip/20 A Dual Blade Power Socket Strip
| Part | Mounting Type | Material - Insulation | Color | Number of Rows | Connector Type | Pitch [x] | Pitch [x] | Contact Material | Number of Positions | Contact Finish | Current Rating (Amps) | Operating Temperature [Max] | Operating Temperature [Min] | Termination | Features | Voltage Rating | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Samtec Inc. | Through Hole | Liquid Crystal Polymer (LCP) | Black | 1 | Receptacle Female Blade Sockets | 0.15 in | 3.81 mm | Beryllium Copper | 8 | Tin | 23 A | 105 ░C | -55 °C | Press-Fit | Board Guide | 438 V | ||
Samtec Inc. | Through Hole Right Angle | Liquid Crystal Polymer (LCP) | Black | 1 | Receptacle Female Blade Sockets | 0.15 in | 3.81 mm | Beryllium Copper | 4 | Gold | 20 A | 125 °C | -55 °C | Solder | Board Guide | 620 V | 10 Áin | 0.25 Ám |
Samtec Inc. | Through Hole Right Angle | Liquid Crystal Polymer (LCP) | Black | 1 | Receptacle Female Blade Sockets | 0.15 in | 3.81 mm | Beryllium Copper | 4 | Tin | 23 A | 105 ░C | -55 °C | Solder | 438 V | |||
Samtec Inc. | Through Hole | Liquid Crystal Polymer (LCP) | Black | 1 | Receptacle Female Blade Sockets | 0.15 in | 3.81 mm | Beryllium Copper | 4 | Gold | 20 A | 125 °C | -55 °C | Solder | 530 V | 10 Áin | 0.25 Ám |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
UPS-04 Series
Power to the Board .150" PowerStrip/20 A Dual Blade Power Socket Strip
